24V Lithium Batteries

For a 24V system, one 24V LiFePO4 battery is usually the simpler setup. You get one battery, one BMS, fewer cables, and no need to manage the voltage balance between two separate 12V batteries. Two matched 12V lithium batteries in series can also provide 24V, but they need to stay closely balanced over time.

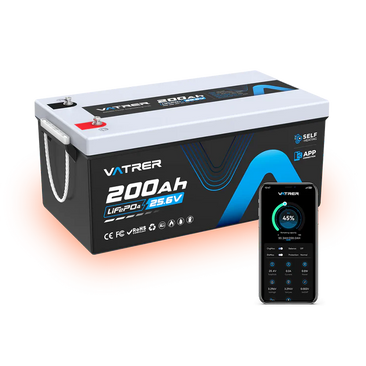

Vatrer 24V lithium batteries give you a native 25.6V system in one battery, making them easier to install for trolling motors, solar systems, and other 24V equipment. If you already own two 12V batteries, make sure they are the same model, capacity, age, and state of charge before wiring them in series.

Start with your trolling motor’s voltage, maximum amp draw, and how many hours you want to stay on the water. A higher Ah rating means more runtime, but your battery’s BMS also needs to handle the motor’s maximum current.

Vatrer offers 24V 200Ah and 300Ah LiFePO4 batteries with 5,120Wh to 7,680Wh of stored energy, giving anglers more reserve for long fishing days, heavier boats, wind, current, or additional marine loads. Always check your trolling motor manufacturer’s voltage and maximum current requirements before choosing a battery.

Runtime mainly depends on the motor’s average amp draw. As a simple estimate:

Runtime ≈ Battery Ah ÷ Average Current Draw

A 24V 200Ah battery could theoretically run about 10 hours at a 20A average draw or about 4 hours at 50A. A 300Ah battery would provide about 15 hours at 20A or 6 hours at 50A. Actual runtime will be lower or higher depending on speed, wind, current, boat weight, and other connected loads.

Vatrer 24V lithium batteries provide 200–300Ah capacity, giving you more reserve when conditions force the trolling motor to work harder.

A 24V LiFePO4 battery is typically a 25.6V nominal battery, with a recommended charging range of about 28.4V–29.2V.

For best results, use a charger designed for 24V LiFePO4 batteries. Avoid lead-acid chargers that use desulfation or equalization modes, since their charging profiles may not match lithium batteries.

Also, don’t rely only on voltage to estimate remaining capacity. LiFePO4 voltage stays relatively flat through much of the discharge cycle, so Bluetooth SOC monitoring gives you a clearer view of remaining power.

Yes. Use a solar charge controller that supports a 24V LiFePO4 battery charging profile, and make sure your solar array provides enough voltage for the controller to reach the battery’s required charging voltage.

For example, Vatrer 24V 200Ah lithium battery can be charged through an MPPT solar controller. A 1,000W solar setup can recharge the 5,120Wh battery in roughly 6 hours of strong usable solar conditions, although actual charging time depends on sunlight, panel output, controller efficiency, battery SOC, and system losses.

If your existing solar controller was configured for AGM or lead-acid batteries, switch it to LiFePO4 mode or manually set the charging parameters before connecting the new battery.

Standard LiFePO4 cells should not be charged below 32°F without cold-weather protection. Vatrer batteries automatically stop charging below 32°F to protect the cells, and discharge protection cuts off below approximately -4°F.

For winter RV, marine, or solar use, choose a Vatrer 24V self-heating lithium battery. When the battery detects temperatures below 32°F, the heating system activates and warms the cells. Heating stops at about 41°F, allowing normal charging to resume.

If you use a non-heated model in freezing conditions, wait until the battery warms above the safe charging temperature or move it into a warmer, insulated battery compartment before charging.

Check both the inverter wattage and the battery’s maximum continuous discharge current. A large Ah rating does not automatically mean the battery can run any inverter.

The Vatrer 24V lithium batteries provide up to 5,120W of output power, while the 24V 200Ah model uses a 200A BMS. That makes it suitable for many RV, solar, cabin, and backup-power inverters, but motors, air conditioners, pumps, and compressors can draw much higher surge current when starting.

Before choosing an inverter, check:

Continuous load + startup surge ≤ battery/BMS output limit

If your inverter operates close to the battery’s maximum rating, leave additional headroom rather than running the system continuously at its limit.

No. Connecting a 24V battery straight to equipment designed only for 12V will damage the equipment.

If your RV, boat, or off-grid system uses a 24V battery bank but still has 12V lights, pumps, electronics, or other accessories, use a properly sized 24V-to-12V DC-DC converter. Match the converter’s continuous and surge output to the total 12V loads you plan to run.

This lets you keep the main battery system at 24V while safely supplying your existing 12V equipment.

Yes, but only when the specific battery model supports the connection you want.

Parallel connections keep the system voltage at 24V while increasing Ah capacity and runtime. Series connections increase system voltage for equipment designed to operate at a higher voltage.

Before connecting batteries, use matching batteries with the same model, capacity, age, and state of charge. Bring their voltages as close as possible before connecting them, and never mix different battery capacities or chemistries in the same battery bank.

Vatrer 24V LiFePO4 battery support expansion, but supported series and parallel configurations can vary by model, so check the individual product specifications before building a larger system.

A quality 24V LiFePO4 battery can typically last 8–10 years with proper charging, storage, and operating conditions. Vatrer LiFePO4 lithium batteries are designed for 4,000+ deep cycles, far beyond the cycle life you normally get from traditional lead-acid deep-cycle batteries.

Avoid leaving the battery fully discharged for long periods, use a compatible LiFePO4 charger, and keep it within its recommended temperature range to help maximize service life.
