    How to Understand LiFePO4 Battery Data

    LiFePO4 batteries, also called lithium iron phosphate batteries, are increasingly used in motorhomes, boats, off-grid photovoltaic systems, mobility equipment and residential energy storage. Their long cycle life, low maintenance requirements and stable output make them a practical alternative to conventional lead-acid batteries.

    Battery labels do not always make comparison easy. A nominal voltage is not the same as a fully charged voltage, amp-hours do not provide a complete measure of energy, and the maximum current may be limited by the battery management system. The charts below explain the key figures and show how they relate to real installations.

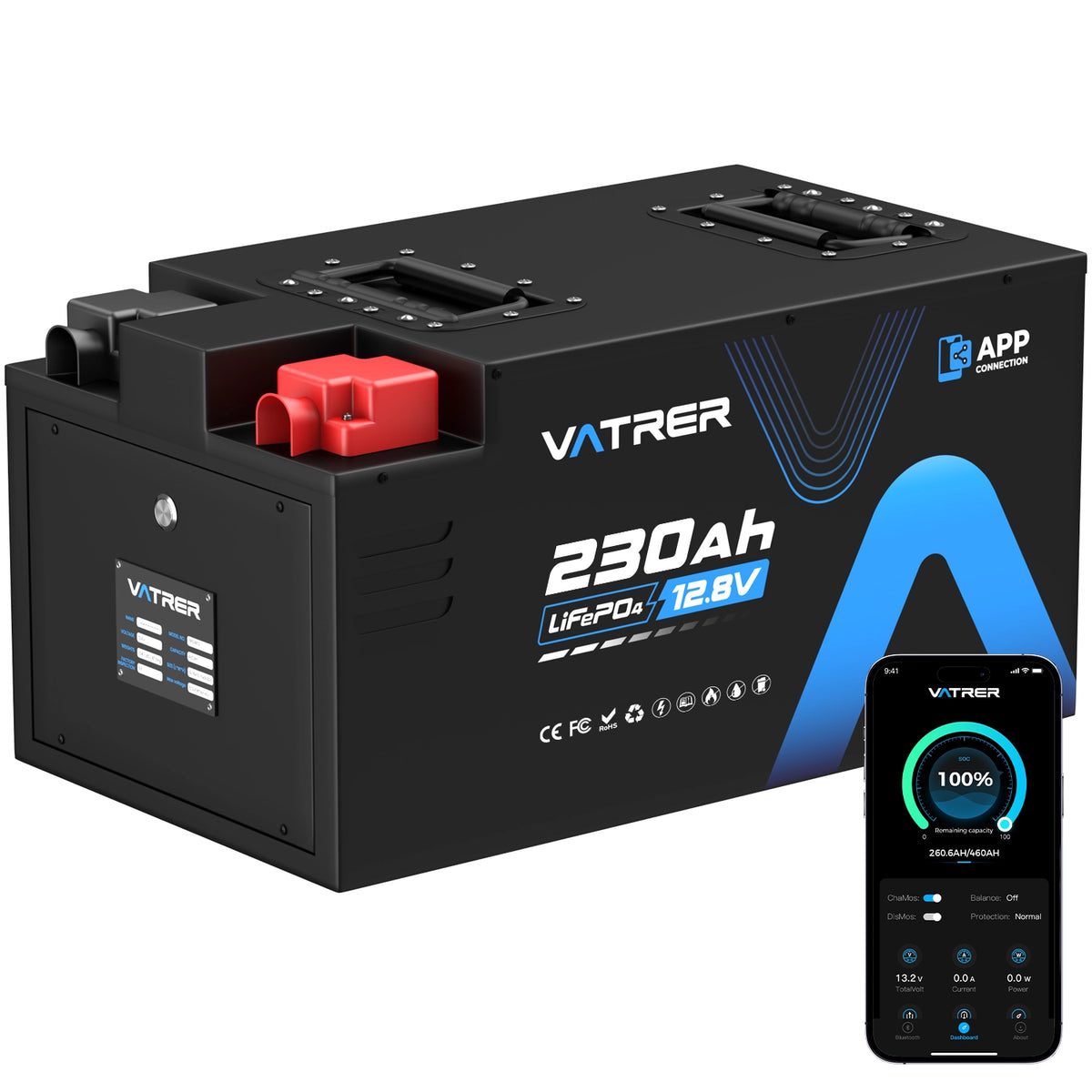

    LiFePO4 battery voltage, capacity and charging chart

    LiFePO4 Battery Performance Overview

    Property Typical LiFePO4 Value Importance in Practice
    Nominal voltage per cell Approximately 3.2V Determines the number of cells required for each battery system.
    Usable capacity Often 80% to almost 100% A large proportion of the rated energy can normally be used.
    Cycle life Frequently 2,000 to 6,000 or more cycles Suitable for regular cycling in mobile and stationary systems.
    Charging efficiency Often above 90% Improves the effective yield from photovoltaic charging.
    Self-discharge Generally around 2% to 3% per month Useful for seasonal vehicles, boats and reserve systems.
    Maintenance No electrolyte topping up Reduces routine servicing compared with flooded batteries.
    Voltage curve Relatively flat during discharge Equipment receives stable voltage, but voltage-based capacity estimates are less precise.

    These figures are indicative. Product-specific data should be used when configuring a charger, inverter, solar controller or battery monitoring system.

    Nominal and Maximum Charging Voltage Chart

    LiFePO4 battery packs are built by connecting 3.2V cells in series. This creates system voltages commonly described as 12V, 24V, 36V and 48V, although their actual nominal values are slightly higher.

    Battery Category Number of Series Cells Nominal Voltage Typical Charging Range
    12V class 4 12.8V 14.2V to 14.6V
    24V class 8 25.6V 28.4V to 29.2V
    36V class 12 38.4V 42.6V to 43.8V
    48V class 16 51.2V 56.8V to 58.4V

    The top charging voltage differs between manufacturers and may also depend on whether maximum capacity or extended service life is prioritised. Always programme the charger according to the battery documentation.

    Approximate 12.8V LiFePO4 State-of-Charge Chart

    The voltage readings below are approximate resting values. A battery should be allowed to settle after charging or discharging before voltage is used to estimate its state of charge.

    Estimated State of Charge Approximate Resting Voltage
    100% 13.5V to 13.6V
    90% Approximately 13.4V
    80% Approximately 13.3V
    70% Approximately 13.2V
    60% Approximately 13.1V
    50% Approximately 13.0V
    40% Approximately 12.9V
    30% Approximately 12.8V
    20% Approximately 12.5V
    10% Approximately 12.0V
    Close to empty Approximately 10.0V to 11.5V, depending on BMS limits

    The flat discharge curve makes voltage a relatively rough capacity indicator. A shunt-based monitor that measures current flow can provide a more useful state-of-charge estimate, particularly in motorhomes, boats and photovoltaic storage installations.

    What LiFePO4 Chemistry Offers

    Lithium iron phosphate is one of several lithium-ion chemistries. Its cathode structure provides strong chemical and thermal stability, supporting a long service life and reducing susceptibility to thermal runaway compared with less stable lithium-ion chemistries.

    LiFePO4 generally has a lower energy density than some lithium chemistries designed for maximum compactness. However, deep-cycle installations often benefit more from durability, predictable performance and operational stability than from achieving the smallest possible enclosure.

    Comparing Amp-Hours and Watt-Hours

    Amp-hours can only be compared directly when the batteries have the same voltage. Watt-hours provide a clearer measure of total stored energy.

    Stored energy in watt-hours = nominal voltage × amp-hours

    Battery Rating Approximate Nominal Energy
    12.8V 100Ah 1.28kWh
    25.6V 100Ah 2.56kWh
    38.4V 100Ah 3.84kWh
    51.2V 100Ah 5.12kWh

    A 51.2V 100Ah battery therefore contains approximately four times as much nominal energy as a 12.8V 100Ah battery. This distinction is essential when comparing batteries for higher-voltage inverters, propulsion systems or photovoltaic storage.

    Cycle Life Is Not a Fixed Number

    LiFePO4 batteries can provide several thousand cycles, but the result depends on the conditions used to produce the rating. Two batteries advertised with the same cycle life may have been tested at different depths of discharge, currents and temperatures.

    When reviewing cycle-life information, consider:

    • The percentage depth of discharge used during testing
    • The charge and discharge current
    • The cell temperature
    • The voltage limits
    • The remaining capacity used to define the end of service life
    • Whether cell-level or complete-battery testing was performed

    Operating the battery within moderate voltage and temperature limits will generally support a longer service life.

    Discharge Current and BMS Capacity

    The battery management system controls how much current a complete battery can deliver. This means two 100Ah batteries may support very different inverter or motor loads.

    Rating Description Installation Significance
    Continuous discharge current Current available without exceeding the normal operating limit Must support sustained inverter, motor and DC loads.
    Peak discharge current Higher current permitted for a specified short duration Must accommodate starting surges and acceleration loads.
    Maximum charging current Highest permitted input current Must be considered when configuring mains, alternator and photovoltaic charging.

    Current also determines the required cable cross-section, overcurrent protection, busbar rating and disconnect capacity. Higher-voltage systems can transmit the same power at a lower current, which may reduce cable losses and conductor requirements.

    Temperature Limits

    Charging temperature is a key operational limit. Standard LiFePO4 cells should not normally be charged below 0°C because this can cause lithium plating and permanent cell damage.

    Condition General Recommendation
    Charging above 0°C Normally permitted within the manufacturer’s specified upper limit
    Charging below 0°C Prevent unless the battery includes an approved heating or low-temperature charging system
    Discharging below 0°C Often possible, although available capacity and output may be reduced
    Long-term storage Store dry, partially charged and within the specified temperature range

    A motorhome, boat or external battery enclosure may experience temperatures very different from the surrounding living area. Temperature sensing should therefore reflect the battery cells rather than only the general ambient temperature.

    Safety Functions Provided by the BMS

    A well-designed BMS monitors individual cells and disconnects the battery if a measured condition exceeds the permitted range. Depending on the design, protection may include:

    • Cell overvoltage
    • Cell undervoltage
    • Excessive charge or discharge current
    • Short-circuit conditions
    • High temperature
    • Low-temperature charging
    • Cell balancing

    A BMS should not be treated as a substitute for external system protection. The installation still requires suitable cables, fuses or circuit breakers, disconnect devices, protected terminals and equipment selected for the relevant DC voltage.

    Standby Losses and Seasonal Storage

    LiFePO4 cells have a low self-discharge rate, but the complete battery may include electronics that consume a small amount of power. Connected inverters, monitors, communications modules and control equipment can create additional standby demand.

    For seasonal storage:

    • Use the state of charge recommended by the battery manufacturer
    • Disconnect non-essential loads
    • Prevent charging when the cells are below their approved temperature
    • Inspect voltage and physical condition periodically
    • Protect the battery from moisture and unauthorised access

    Choosing a LiFePO4 Battery for a European Installation

    Define the Required System Voltage

    Confirm compatibility with the inverter, charger, solar controller, alternator charger, motor controller and DC distribution equipment. Equipment described as 48V is not automatically compatible with every 51.2V battery.

    Calculate Daily Energy Demand

    Record the power and daily running time of each load. Add conversion losses and a reserve for reduced photovoltaic production or unexpected energy use.

    Check Current Ratings

    Verify that the BMS can support normal loads and short-duration surges. The external protection and conductors must also be rated for the available fault current.

    Review Communications Compatibility

    Some batteries communicate with inverters or energy-management systems through CAN or RS485. Confirm that the communication protocol and software version are supported before purchase.

    Consider Documentation and Compliance

    Select equipment with clear technical documentation, traceable test information and the markings required for the intended market and application. CE marking, where applicable, does not replace correct system design or compliance with national installation requirements.

    Conclusion

    LiFePO4 battery charts make it easier to interpret voltage, energy capacity, cycle life, temperature limits and current ratings. They should be used as a starting point rather than as a replacement for the manufacturer’s technical documentation.

    A reliable system begins with the correct nominal voltage and energy capacity, followed by compatible charging equipment, an adequately rated BMS, properly sized conductors and suitable external protection. When these elements are correctly matched, LiFePO4 technology can provide efficient, stable and long-lasting energy storage for a wide range of European applications.
