Vatrer 12V 560Ah Self-heating Lithium RV Battery, 7168Wh 300A BMS Heated Battery
● 560Ah Power Monster: Supercharge your energy needs.
● 2X Heating Efficiency: Integrated 112W Heated Lithium Pad.

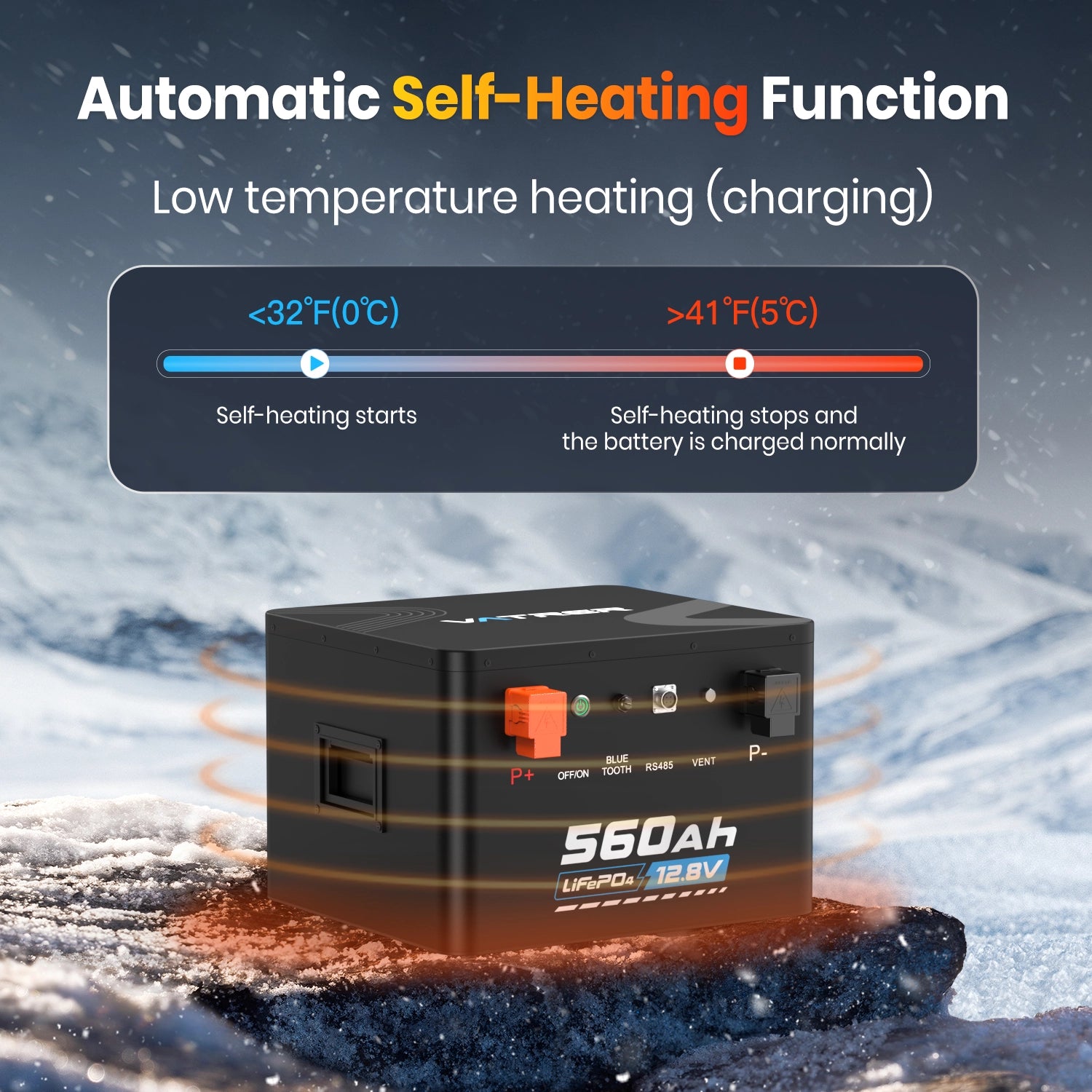

● Automatic Heating Function: Activates at below 32°F (0°C) and stops at 41°F (5°C)
● Replaces 1.9*12V 300Ah: Efficient parallel replacement.
● 7,168Wh & 3,840W: High energy and power output.

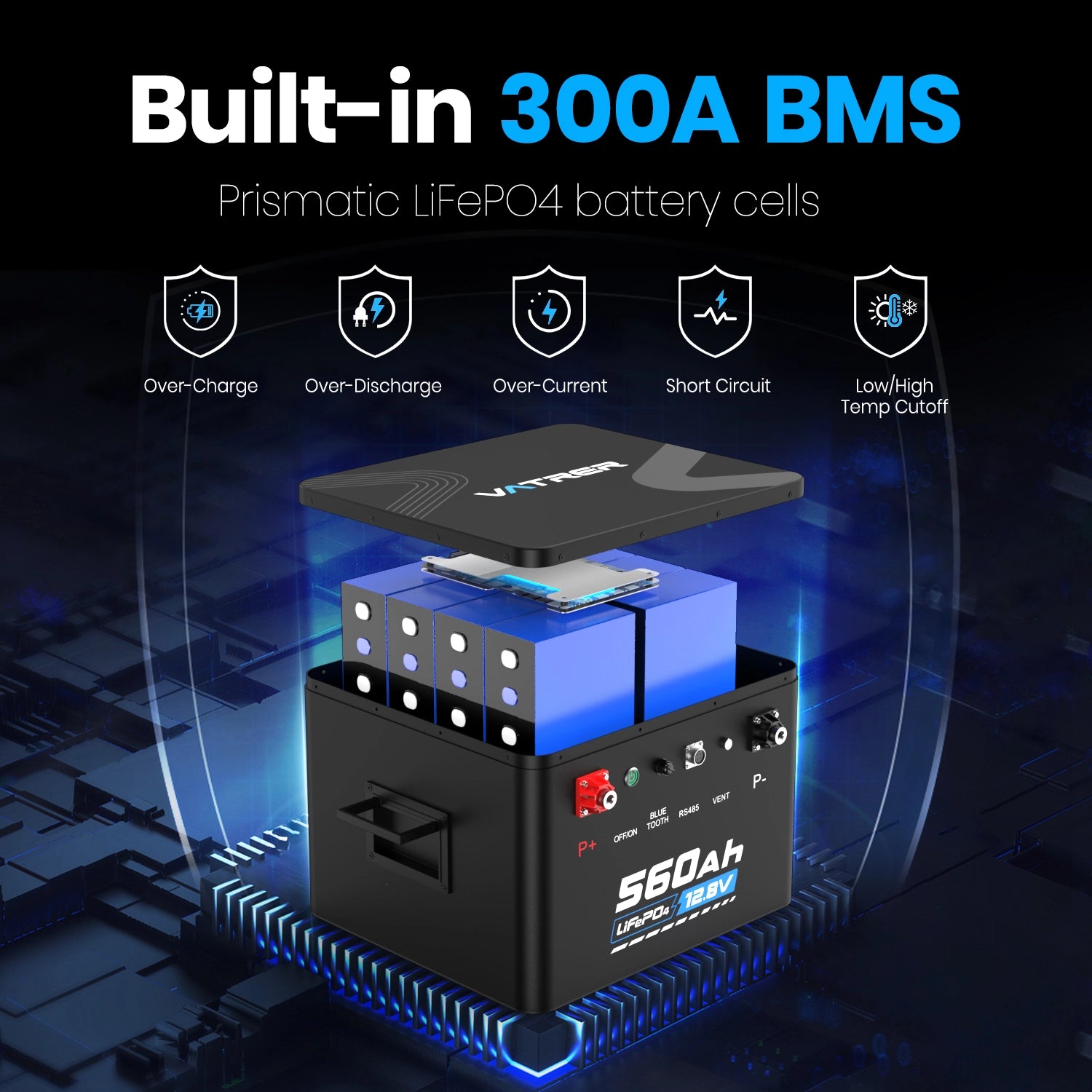

● 300A BMS: Advanced safety and strength.
● 300A Continuous: Robust discharge/charge current.
● 5000+ Cycles: Long-lasting LiFePO4 cells.
● 114.688kWh: Maximum usable energy(4P4S).
● Auto-Balance: Smart voltage management.
● 30% Lighter: Than 3*12V 200Ah lead-acid.
● Smaller than BCI 8D Size(L16.69*W14.8*H11.14 inches): Easy installation and replacement.
● Versatile Use: Solar, RV, marine, EV, UPS, home storage.

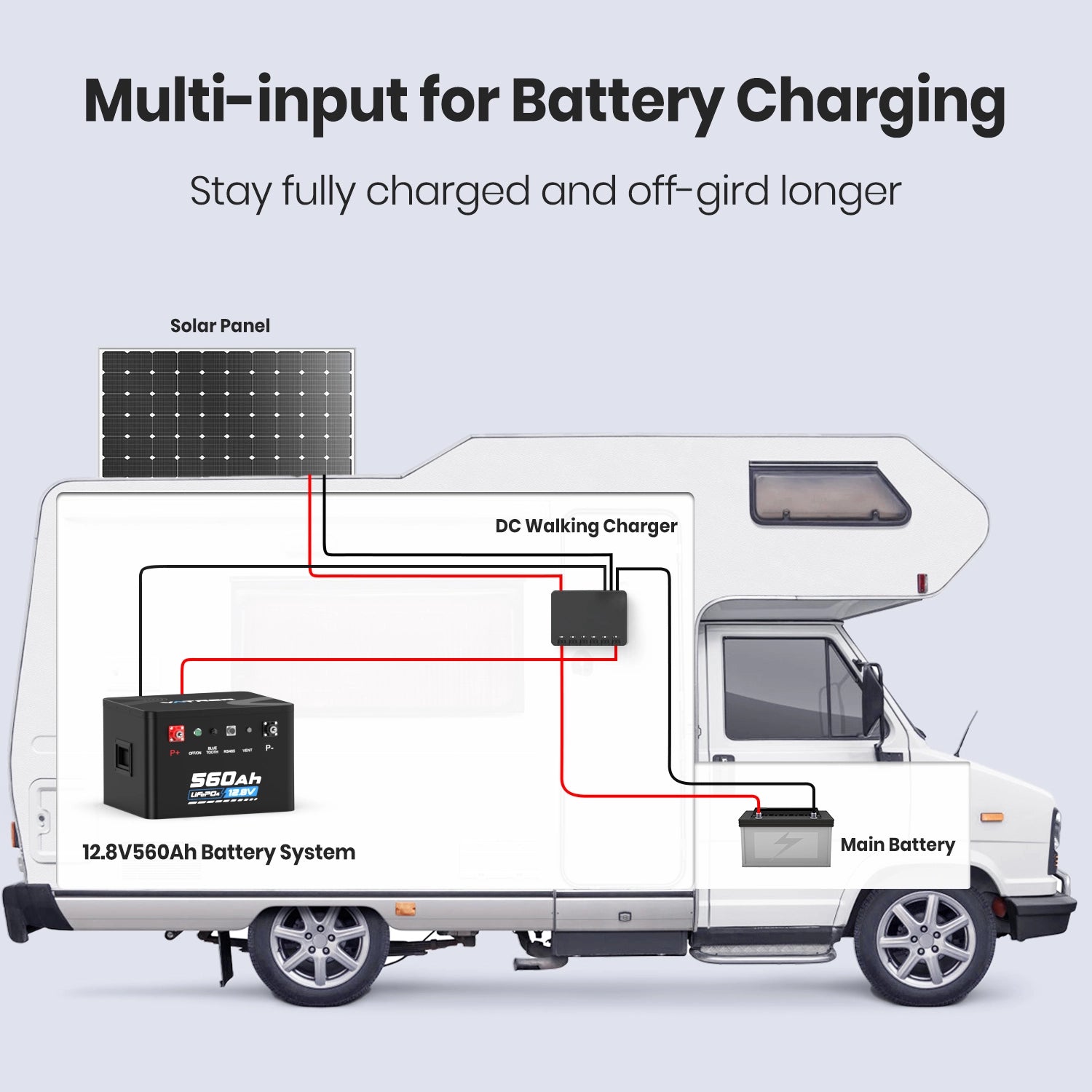

● 3 Charging Ways: LiFePO4 charger, solar, generator.
● Low Maintenance: Cost-effective and convenient.
● Fast Delivery & Support: Reliable customer service.
● Not a Starter Battery: Designed for energy storage.
Pack:1 PACK($1,499.99)
Quantity:
Subtotal:
Frequently Bought Together
30 Day Price Guarantee
Exclusion of Hawaii (HI), Alaska (AK), and Puerto Rico (PR)
Runtime Calculation
Please enter the power value.
Safety Certifications
200%
2-3x The Power As A Lead Acid Battery
1/3
1/3 the Weight For Equal Usable Power
5X
Charges Up To 5X Faster
100%
100% Depth SOC & DOD
10-Year
10-Year Lifespan
| Specification | Value |
|---|---|
| Battery Model | LiFePO4 Battery 12.8V 560Ah Self-heating |
| Nominal Voltage | 12.8V |
| Charge Voltage | 14.2V - 14.6V |
| Weight | 61.95KG / 136.58LB |
| Energy | 7168Wh |
| Max Continuous Charging Current | 300A |
| Max Continuous Discharging Current | 300A |
| Recommend Charge Current | 112A (0.2C) |
| Operating Temperature Range | Charge: -20°C to 50°C (-4°F to 122°F) Discharge: -20°C to 60°C (-4°F to 140°F) Storage: -10°C to 50°C (14°F to 122°F) Low temp cut off protection (Discharge): -20°C ± 4°C (-4°F ± 7.2°F) |
| Max Load / Inverter Power | 3,840W |
| Terminal Type | M8 |
| Waterproof Class | IP65 |
| Dimension | 424*376*283 mm 16.69 x 14.80 x 11.14 inches |
| Cycle Life | ≥5000 Cycles |

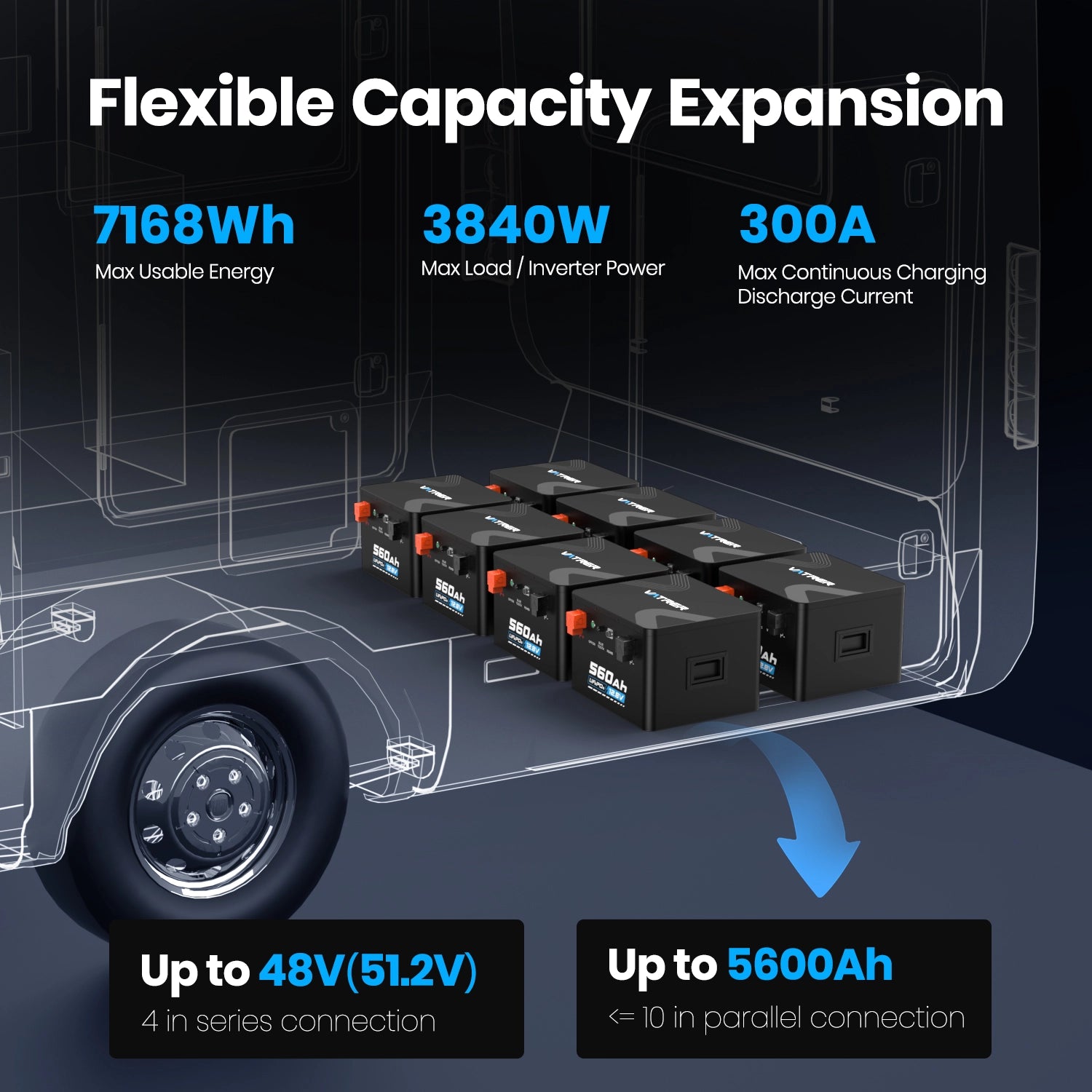

The maximum connection in series is 4 batteries to achieve a total voltage of 48V. The battery supports parallel connections, but it is important to note that the maximum number of batteries in parallel should not exceed 10.

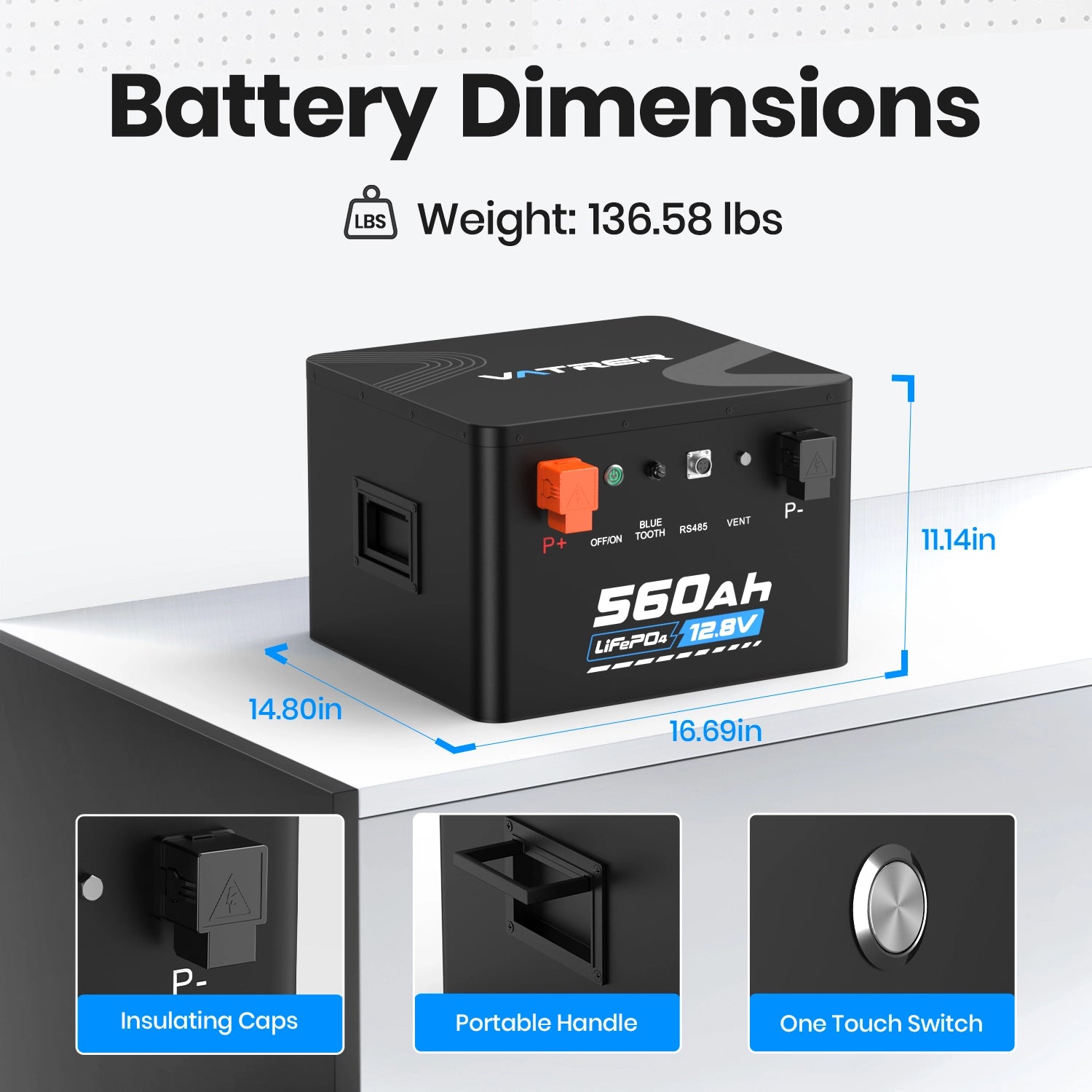

The dimensions of the battery are approximately 16.69 x 14.80 x 11.14 in, with a weight of 136.58 lb.
The battery casing is made of IP65 steel and has a spray paint coating that prevents corrosion. However, it is important to take measures to ensure proper waterproofing in a marine environment.
Yes, the BMS has a built-in cell-balancing function. It will automatically balance the cells of a single battery unit during the charging process.
When not in use for a long period of time, it is recommended to store the batteries at a temperature range of -10°C to 50°C. It is advisable to keep the battery at around 50% state of charge, recharge it once every three months, and ensure that the switch is turned off.
If the BMS has cut off the battery for protection, you will need to disconnect any loads connected to the battery and set it aside for approximately 30 minutes. After this period, the battery will automatically recover to its normal voltage and can be used again after being fully charged.
