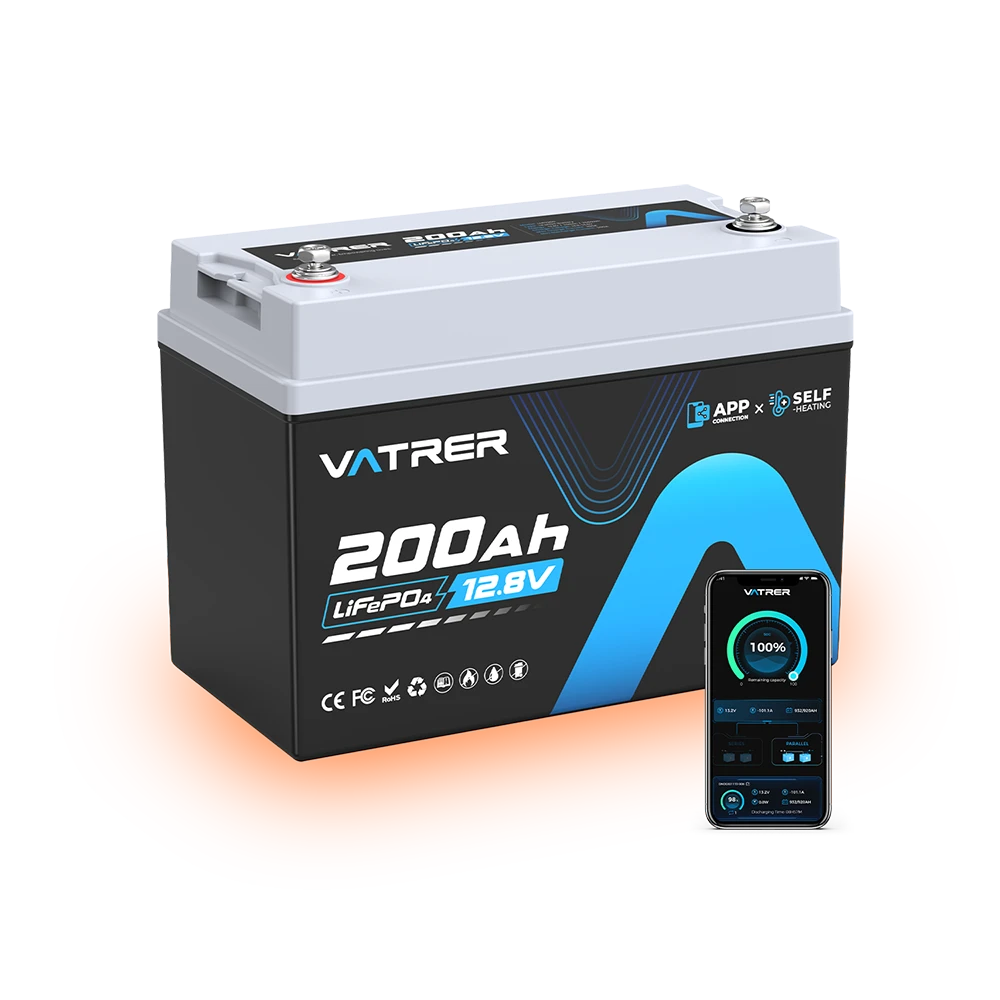

Vatrer 12V 200Ah Bluetooth LiFePO4 Self-Heated Lithium Battery 200A BMS CA
【Automatic Self-Heating】12V 200Ah LiFePO4 battery model is equipped with an automatic self-heating function that will be activated by the BMS when the battery is connected to a charger at -4°F to 4°F. The heating will be stopped when the battery temperature reaches 41°F and then the battery will be formally charged. This feature makes it no problem to charge the battery at low temperatures. The battery's working environment is no longer restricted, but more flexible and convenient to use.
【Grade-A Cells & Upgraded 200A BMS】VATRER POWER 200Ah self-heating LiFePO4 batteries with Automotive Grade LiFePO4 cells have uncompromising quality and higher energy density with better stability, which makes it possible to ensure long-term recycling. And highest-level safety is based on UL Testing Reports for the cells inside the battery and upgraded BMS with heating pads to protect it from overcharging, over-discharging, over-current, and short circuits with excellent self-discharge rate.
【Exceptional Longevity & Lightweight】 Our LiFePO4 lithium iron batteries provides 5000+ cycles compared to 300~500 cycles in lead acid battery. The service life of LiFePO4 batteries is 8 to 10 times than the standard lead-acid batteries. Helping to minimize replacement cost and reduce total cost of ownership. And the weight of the lithium iron phosphate battery is 30% lighter than the lead-acid battery of the same capacity, so you can carry it more easily.
【Safety & ECO-Friendly】 The stable Lithium Iron Phosphate chemical structure makes LiFePO4 battery not burn or explode even at high temperature, short circuit, impact and drop. Highest-level safety based on UL Testing Certificate for the cell inside the battery. And it does not contain any heavy metals and rare metals and is more environmentally friendly, which called green battery.
【Multi-Application & 5-Year Warranty】 With no acid in the lithium ion battery, you're able to safely mount in any position. This makes li-ion batteries perfect for marine, RV, campers, travel trailer, and off-grid applications! Vatrer Power provides a five-year warranty for all batteries. 24hrs friendly and professional customer supports, any question please feel free to contact us. NOTE: The battery is suitable for energy storage rather than start-up. Please consult us in advance if needed!
【Kindly Attention】This battery with self-heating can not be connected with the regular version 12V 200Ah battery model in series or in parallel. The battery will activate the heating function only when the charging current is more than 10A.
Runtime Calculation
Safety Certifications
Intelligent Self-Heating and Low Temp Cut-Off
The Vatrer 12V 200Ah Bluetooth LiFePO4 Lithium Battery - an advanced power solution designed to excel in low-temperature environments. With intelligent self-heating technology and a built-in 200A Battery Management System (BMS), this battery ensures optimal performance and reliability even in extreme conditions. Simplify your power needs with the Vatrer Self-Heating Lithium Battery.
Show Details

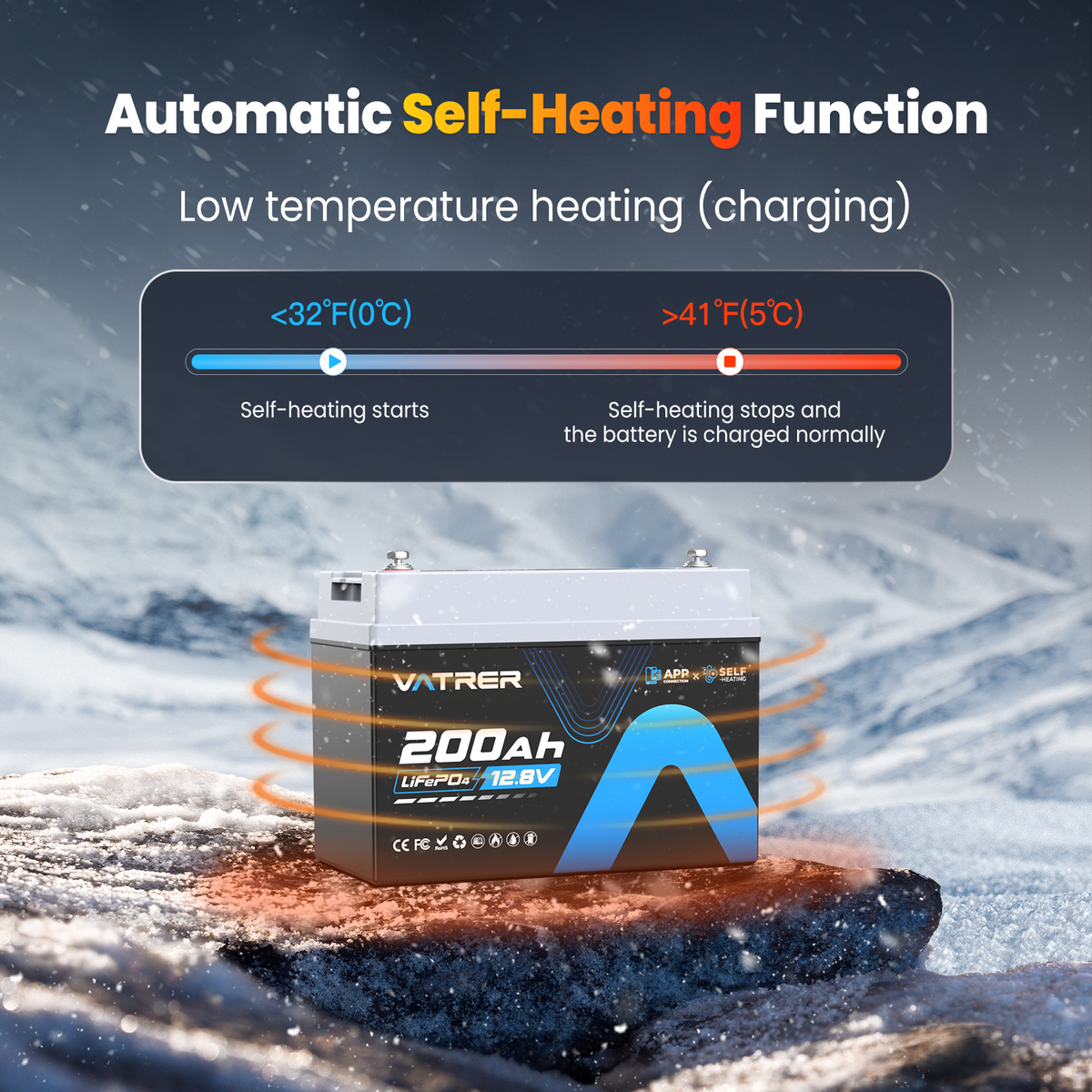

Intelligent Self-Heating:
The Vatrer LiFePO4 Lithium Battery features intelligent self-heating technology that automatically activates when the temperature drops below 32°F (0°C). This innovative feature ensures that the battery remains within the optimal operating temperature range, enabling efficient charging and preventing damage caused by extreme cold. Once the temperature rises above 41°F (5°C), the self-heating stops, and the battery resumes regular charging.

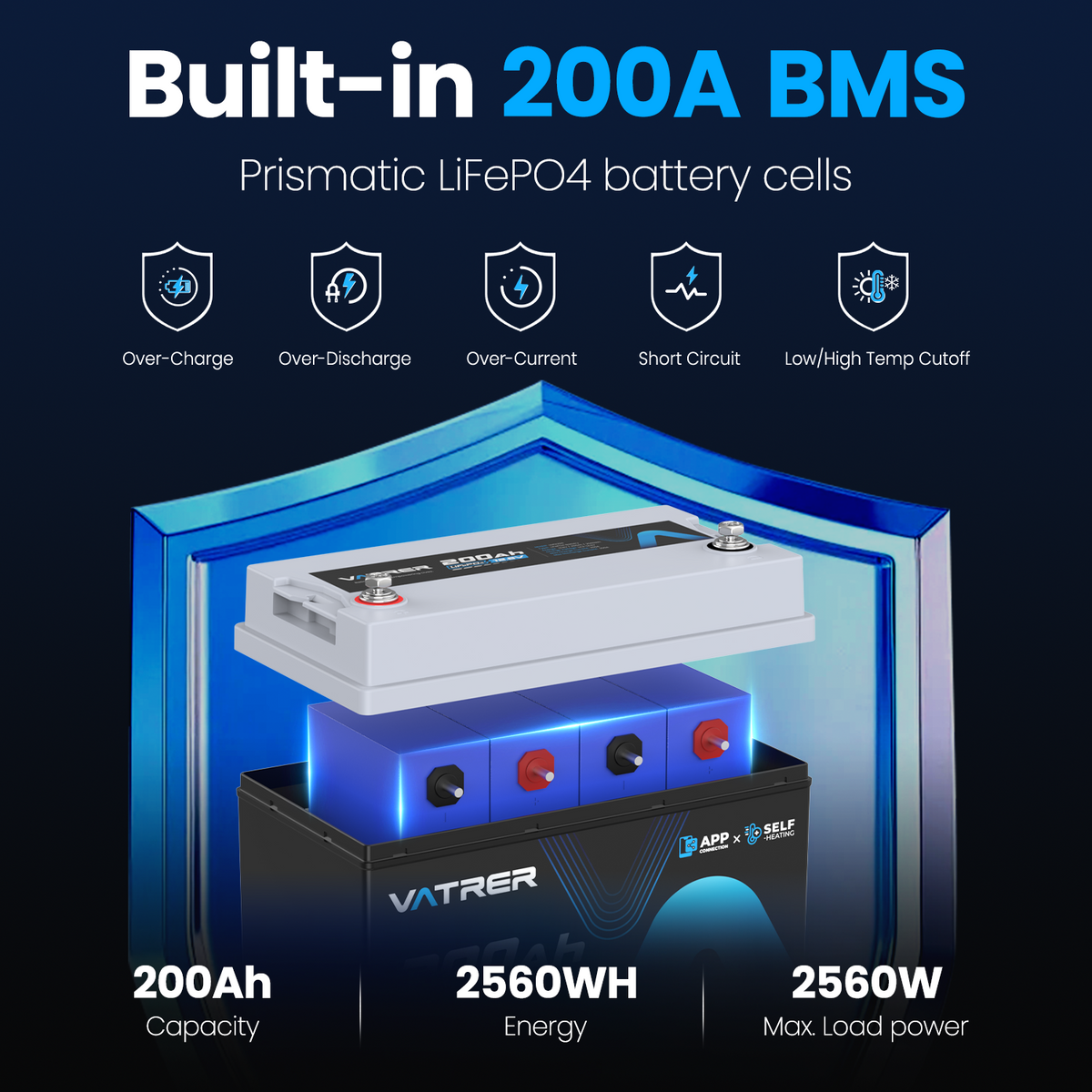

Built-in 200A BMS:
The integrated 200A Battery Management System (BMS) provides comprehensive protection and monitoring for the Vatrer battery. It safeguards against overcharging, over-discharging, and short-circuiting, ensuring the battery's safety and extending its lifespan. The BMS also balances cell voltages and monitors temperature, maximizing the battery's performance and longevity.
Low Temp Cut-Off:
With the Vatrer Lithium Battery's low temp cut-off feature, you can trust that your battery is protected during discharge in low-temperature conditions. The battery's low temp cut-off activates when the temperature drops below the specified threshold, preventing damage and preserving the battery's integrity. This feature ensures optimal performance, even in harsh environments.
Bluetooth Connectivity:
The Vatrer Lithium Battery is equipped with Bluetooth technology, allowing you to monitor and control the battery's status wirelessly. Through a dedicated app, you can access real-time data such as voltage, temperature, and remaining capacity. Stay informed and in control of your power system, all from the convenience of your smartphone or tablet.
Enhanced Control with Bluetooth
The Vatrer 12V 200Ah Bluetooth LiFePO4 Lithium Battery is here to revolutionize your power experience. With its cutting-edge Bluetooth functionality and intelligent self-heating technology, this battery offers unparalleled control and performance in any environment. Stay connected, monitor battery information in real-time, and enjoy hassle-free charging with the Vatrer Bluetooth Lithium Battery.
Show Details
Bluetooth Functionality:

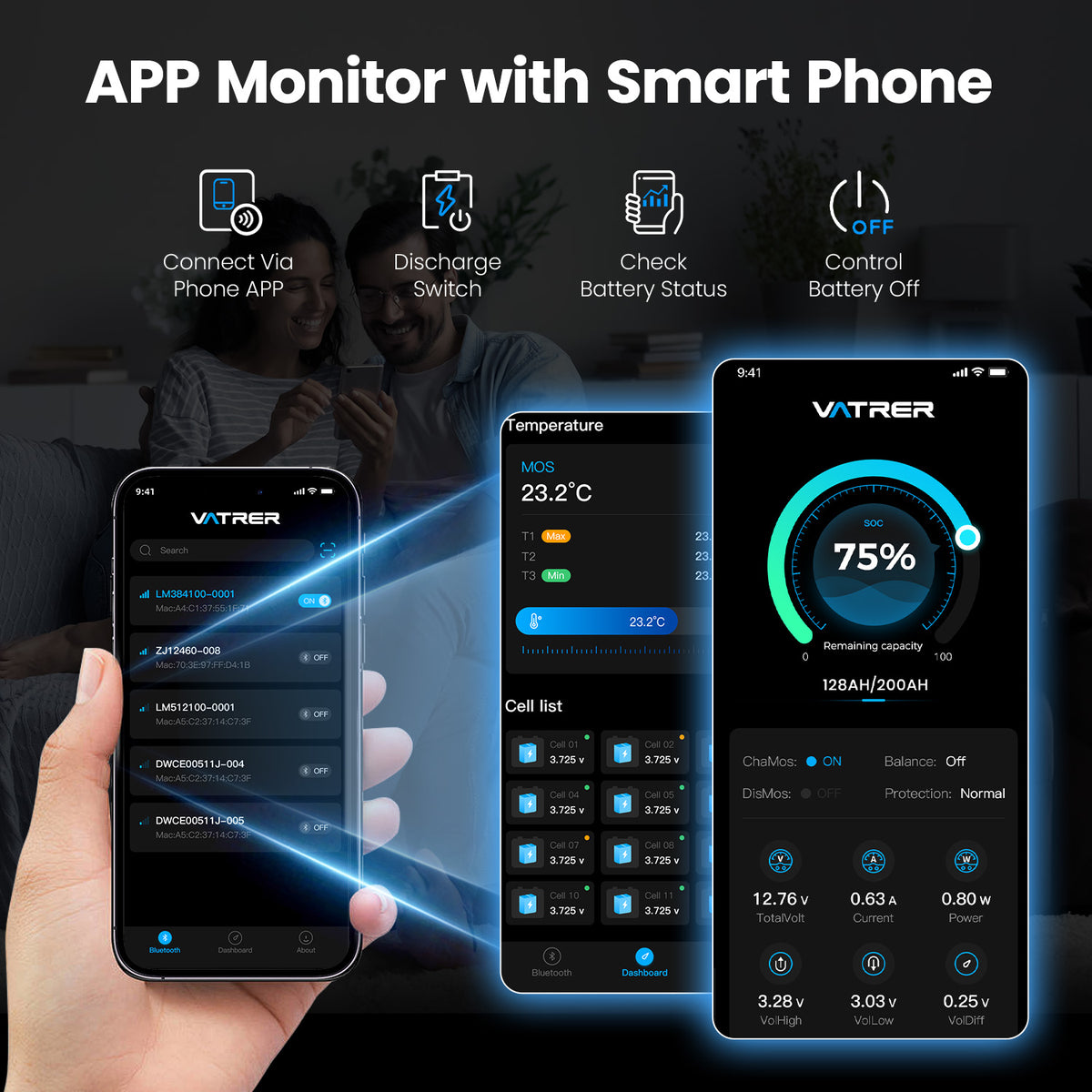

Experience the convenience of real-time battery monitoring and control with the Vatrer Bluetooth Lithium Battery. Connect to the battery using the Xiaoxiang app, available for free download on the APP store or Google Play. Simply search for "xiaoxiang" or scan the QR code provided in the manual. Through the app, you can access vital battery information, including voltage, temperature, and remaining capacity, giving you complete control at your fingertips.
Intelligent Self-Heating:
The Vatrer Lithium Battery features intelligent self-heating technology, ensuring optimal performance even in freezing temperatures. Here's how it works:
- Step 1: Connection to the Charger: When the battery is connected to a charger with a current greater than 10A, the self-heating process starts.
- Step 2: Temperature Probe: A temperature probe records the battery's temperature, monitoring its conditions throughout the charging process.
- Step 3: Warm Plate Activation: If the battery's temperature drops below 0°C, a warm plate inside the battery begins to heat the cells, maintaining an optimal operating temperature.
- Step 4: Heating Completion: Once the battery's temperature reaches 5°C, the heating phase is completed, and the battery can be charged normally.
Built-in 200A BMS and Low Temp Cut-Off:
The Vatrer Bluetooth Lithium Battery is equipped with a built-in 200A Battery Management System (BMS) that ensures the battery's safety and longevity. The BMS protects against overcharging, over-discharging, and short-circuiting, providing comprehensive protection. Additionally, the low temp cut-off feature safeguards the battery during discharge in low-temperature conditions, preserving its integrity and performance.
Large Charging and Discharging Temperature Range
The Vatrer Lithium Battery is designed to excel in various temperature conditions. Whether you're charging or discharging, this battery can withstand temperatures ranging from -4°F (charge) to 122°F and -4°F (discharge) to 140°F. This wide temperature range enables you to utilize the battery's power in both hot and cold environments without compromising its performance or longevity.
Vatrer Power Vs Lead-acid Battery
Experience extended running time and reduced charging time with the Vatrer Power 12V 200Ah LiFePO4 Self-Heating Battery. This advanced lithium battery outperforms traditional lead-acid batteries, providing you with more power and longer-lasting entertainment. Let's compare the Vatrer Power and a Lead-acid Battery 12V 200Ah, taking a 50-inch TV (100W) as an example.
Show Details
Vatrer Power:
With a 0.2C charge current of 20A, the Vatrer Power battery requires only 10 hours to fully charge. Once charged, it can power a 50-inch TV (100W) for approximately 25.6 hours. This means you can enjoy your favorite shows, movies, and games for an extended period without worrying about running out of power. The Vatrer Power battery's fast charging time and long running time make it an ideal choice for uninterrupted entertainment.
Lead-acid Battery:
In comparison, a Lead-acid Battery 12V 200Ah typically requires a 0.1C charge current of 10A and takes around 20 hours to fully charge. Once charged, it can power a 50-inch TV (100W) for approximately 12.8 hours. The lead-acid battery's longer charging time and shorter running time may limit your entertainment options, requiring more frequent charging and potentially interrupting your viewing experience.
Specification | Value |
---|---|
Battery Model | LiFePO4 Battery 12.8V 200Ah |
Nominal Voltage | 12.8V |
Charge Voltage | 14.2V-14.6V |
Weight | 22KG / 48.5LB |
Energy | 2560Wh |
Max Continuous Charging Current | 200A |
Max Continuous Discharging Current | 200A |
Recommend Charge Current | 40A (0.2C) |
Max Load / Inverter Power | 2560W |
Operating Temperature Range | Charge: -20°C to 50°C (-4°F to 122°F) Discharge: -20°C to 60°C (-4°F to 140°F) Storage: -10°C to 50°C (-14°F to 122°F) Low temp cut off protection (Discharge): -20°C ± 4°C (-4°F ± 39.2°F) |
Waterproof Class | IP65 |
Terminal Type | M8 |
Dimension | 522×240×218 mm / 20.55×9.44×8.58 inch |
Accessories | 1*Battery, 2*M8 Screws, 2*Maps |

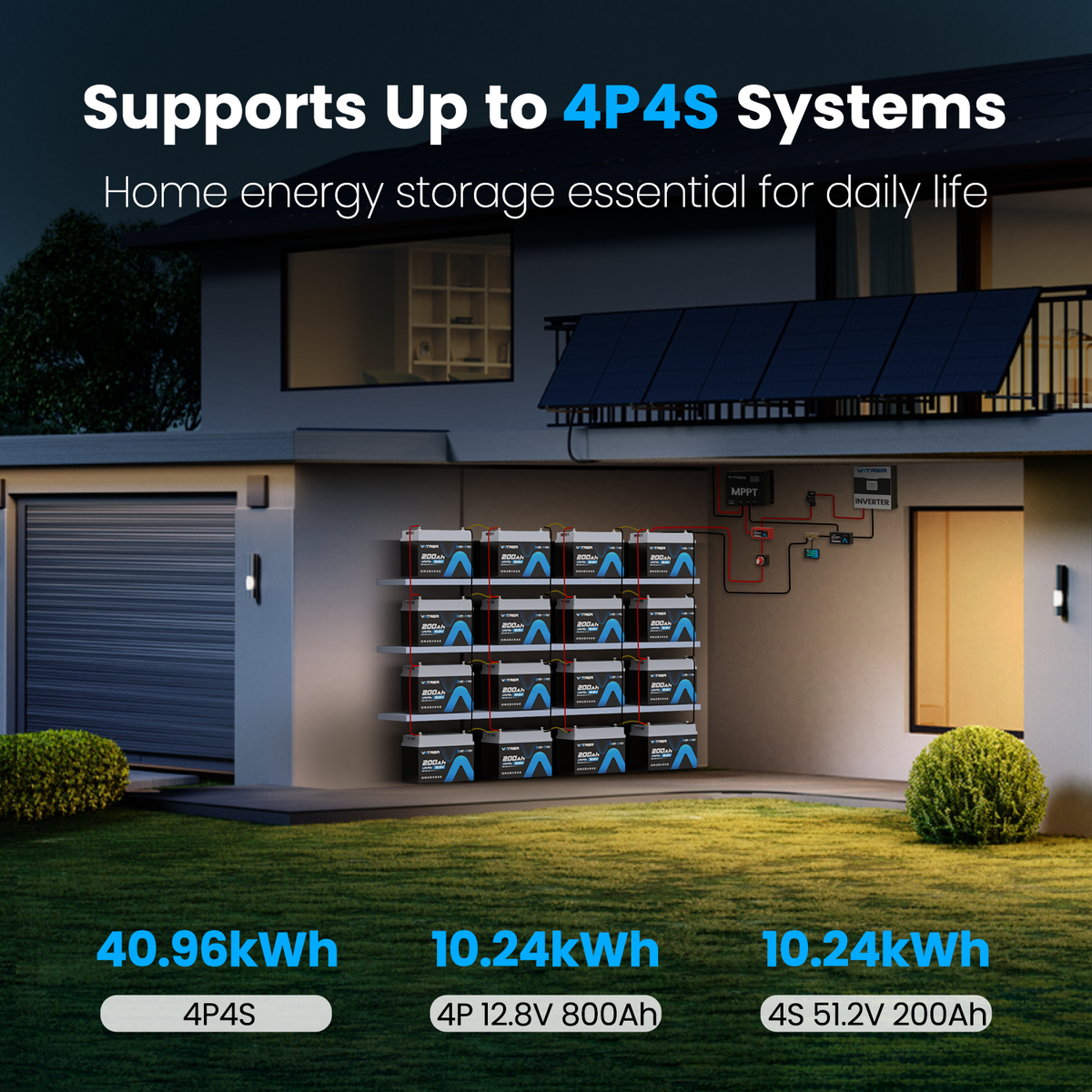

Series/Parallel Connections | 4 in Series, and no more than 10PCS in Parallel |
Yes, of course! If you purchase our battery with low-temperature cutoff, our BMS has low-temperature protection cut-off function to protect your battery from low-temperature damage and extend battery life. Low temp cut off protection (Charge): 0℃ ± 4℃ (32°F ± 39.2°F) Low temp cut off protection (Discharge): -20℃ ± 4℃ (-4°F ± 39.2°F) We recommend using a lithium iron phosphate 4-string (14.6V) charger to charge the battery. Additionally, you have two other options: Scheme 2: You can use photovoltaic solar panels to charge the battery through MPPT. Scheme 3: You can use an inverter with a built-in AC to DC charging function to charge the battery pack. a. A Battery Management System (BMS) is responsible for protecting the li-ion cells and the user from unsafe operating conditions, such as low or high voltage, low or high temperatures, and system shorts. It shuts off the battery to prevent damage. b. Our BMS also ensures cell balance. During each charge cycle, it reduces the charging rate in cells that have been topped off first, allowing other cells to catch up. This maintains cell balance and ensures the quality and efficiency of the battery pack. Our LiFePO4 lithium iron batteries provide 2000+ cycles, compared to 300-500 cycles in lead-acid batteries. The service life of LiFePO4 batteries is 8 to 10 times longer than standard lead-acid batteries. Our LiFePO4 batteries are manufactured using automotive-grade LiFePO4 cells, offering higher energy density, no memory effect, more stable performance, and greater power. The stable Lithium Iron Phosphate chemical structure makes LiFePO4 batteries resistant to burning or exploding, even at high temperatures, short circuits, impact, and drops. They have been tested and certified for safety by UL. Our batteries do not contain heavy metals or rare metals, making them more environmentally friendly. They are often referred to as green batteries. All our lithium battery products have a built-in battery management system (BMS) that protects against overcharge, deep discharge, overload, overheating, and short circuit. The BMS also ensures a low self-discharge rate. Furthermore, our BMS has a high-temperature disconnect function. When the internal battery temperature reaches 75°C (167°F), it automatically disconnects to protect the battery. It also disconnects if the overcharge voltage exceeds 15V or the overdischarge voltage drops below 8.8V. We apologize, but our batteries cannot be used to jump-start a vehicle. However, they can be used as a power supply for automobiles. You can recharge your car using a Jackery power supply cord, which is available for purchase separately.Q1: Does the BMS have low temperature charging disconnect?
Q2: Do I have to buy a special charger for LiFePO4 batteries?
Q3: What is a BMS?
Q4: How long do LiFePO4 batteries last?
Q5: Are your batteries safe?
Q6: Can it be used to jump-start a car?
