Vatrer 48V Lithium Solar Batteries for Home Backup and Off-Grid Power

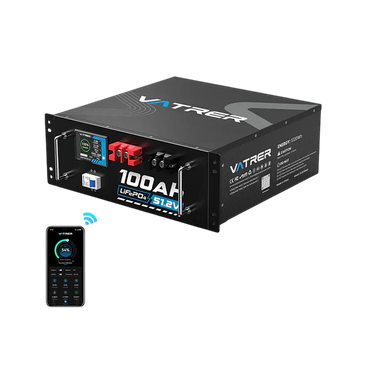

A 48V lithium solar battery reduces current, lowers cable loss, and works more efficiently with larger solar inverters than a 12V battery bank. A Vatrer 51.2V 100Ah LiFePO4 battery stores about 5.12kWh, while a 12.8V 100Ah battery stores about 1.28kWh, so fewer 48V modules are needed to reach the same usable capacity. This makes a 48V solar battery a better fit for home energy storage, solar battery backup, and off-grid solar battery systems.

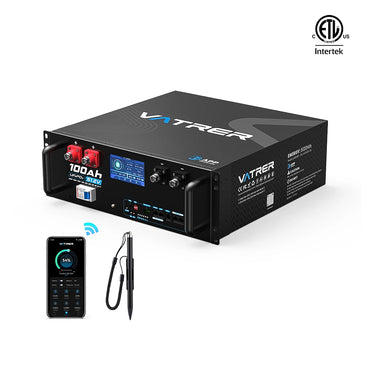

A Vatrer 48V server rack battery stacks neatly in a cabinet or rack, making capacity expansion easier in a garage, utility room, or equipment room. A 48V wall mount battery saves floor space and creates a cleaner residential solar battery layout, similar to a Powerwall alternative. Both rack-mounted LiFePO4 and wall mounted solar battery options include built-in BMS protection and real-time battery monitoring.

Daily energy use ÷ battery capacity × backup days = number of batteries needed. One Vatrer 51.2V 100Ah lithium battery stores about 5.12kWh, so a system using 10kWh per day needs about 2 batteries for 1 day or 4 batteries for 2 days of backup. Add extra capacity if the system runs high-draw loads such as a refrigerator, well pump, microwave, or air conditioner during cloudy days.

Vatrer 48V LiFePO4 solar batteries can work with lithium-compatible inverters when charge voltage, float voltage, and low-voltage cut-off are set correctly. Include inverters from Victron, Growatt, EG4, and Sol-Ark, especially when CAN or RS485 communication is supported. Closed-loop communication depends on the inverter protocol and the exact Vatrer battery model.

Vatrer 48V lithium solar batteries can be expanded in parallel when the same battery model, voltage, capacity, and BMS specifications are used. Each 51.2V 100Ah module adds about 5.12kWh of storage, so four 48V 100Ah batteries provide about 20.48kWh, up to 10 batteries can be connected in parallel, expanding capacity to 51,20kWh. This setup works well when a solar battery backup system starts small and needs more capacity later.

A Vatrer 48V LiFePO4 battery uses a built-in BMS to protect against overcharge, over-discharge, overcurrent, short circuit, high temperature, and low temperature. Low-temperature protection stops charging below 32°F and stops discharging below -4°F to help protect the cells. Selected 48V models also include self-heating, which starts below 32°F and stops at 41°F before charging resumes.

Vatrer 48V rack mount and wall mount lithium batteries include built-in BMS protection, display/app monitoring, and standard lithium battery connection layouts, which helps simplify installation. Rack systems may still need a cabinet, busbar, properly sized breaker, and inverter-matched communication cable. Wall mount batteries usually need secure wall hardware, correct cable sizing, and enough clearance for ventilation and service access.

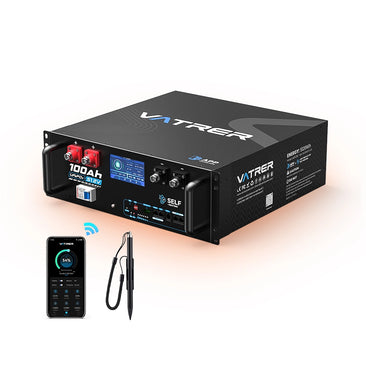

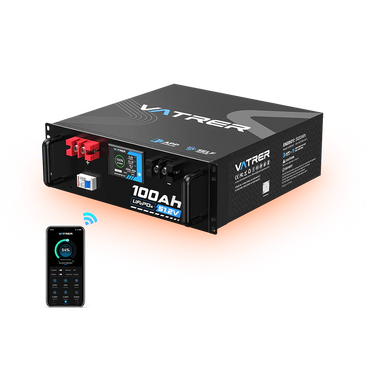

A Vatrer 48V lithium solar battery cannot charge below 32°F when low-temperature protection is active; the BMS will stop charging to protect the LiFePO4 cells. If the battery has self-heating, it can begin heating below 32°F and resume charging after the internal temperature reaches about 41°F. Without self-heating, move the battery to an indoor, insulated, or temperature-controlled space before charging in winter.

A Vatrer 48V solar battery may stop charging before 100% when one cell group reaches the BMS overvoltage threshold or when the inverter charging voltage is set too high. For a 51.2V LiFePO4 battery, a lithium-compatible inverter profile helps reduce repeated BMS cut-off during absorption charging. The display or Vatrer app monitoring can be used to check pack voltage, current, battery status, and protection alerts.

Vatrer 48V LiFePO4 solar batteries can reach 4000+ cycles when used within the correct voltage, current, and temperature range. They support 80%-100% depth of discharge and typically provide 8-10 years of service in solar storage use. Battery life is easier to extend when charging below 32°F is avoided without self-heating, inverter settings match LiFePO4 parameters, and repeated overvoltage BMS cut-offs are prevented.
