12V Fish Finder Battery Runtime Guide for Anglers

There is nothing more frustrating than finding a promising drop-off, marking fish on the screen, and then watching your fish finder shut down before the day is over. For Canadian anglers—whether you are trolling on a northern lake, casting from a small aluminium boat, or heading out for a long weekend at the cottage—battery runtime matters just as much as sonar quality.

A 12V battery can run a fish finder for many hours, but the exact time depends on three things: the battery capacity, the power draw of your fish finder, and real-world conditions such as temperature, battery age, and whether you are powering anything else from the same battery.

This guide explains how to calculate fish finder runtime, how different battery types perform, and how to choose a practical 12V setup for longer, more reliable days on the water.

What Battery Capacity Means for a Fish Finder

Most portable fish finder setups use a 12V battery, often labelled with an amp-hour rating such as 7Ah, 10Ah, 20Ah, or higher. That amp-hour number is the starting point for estimating how long your battery will last.

• Voltage: A 12V system provides the electrical pressure your fish finder is designed to use.
• Amp-hours: Capacity in amp-hours shows how much current the battery can supply over time. For example, a 12V 10Ah battery can theoretically provide 1 amp for 10 hours.
• Watt-hours: This gives a more complete picture of stored energy. The formula is: volts × amp-hours = watt-hours.

For example, a 12V 10Ah battery stores about 120 watt-hours of energy. A 12V 20Ah battery stores about 240 watt-hours. In simple terms, doubling the amp-hour capacity usually gives you roughly twice the runtime, assuming the same fish finder and similar conditions.

Battery chemistry also matters. A sealed lead-acid battery and a lithium battery may both say “12V 20Ah” on the label, but they do not always deliver the same usable runtime. A quality 12V lithium battery often provides more usable capacity, weighs less, and handles deep cycling better than traditional lead-acid options.

How Much Power Does a Fish Finder Use?

Fish finders are relatively efficient compared with trolling motors or pumps, but their power consumption varies. A small portable unit may use only 3 to 5 watts, while a larger screen with GPS, CHIRP sonar, mapping, Bluetooth, WiFi, and high brightness settings may draw 10 watts or more.

To calculate runtime accurately, check your fish finder manual or product label for its power consumption in watts or current draw in amps.

Converting Watts to Amps

If your fish finder lists power consumption in watts, convert it to amps with this formula:

Amps = Watts ÷ Volts

For a 12V system:

• A 5W fish finder draws about 0.42A.
• A 10W fish finder draws about 0.83A.
• A 15W fish finder draws about 1.25A.

This current draw is what you use to estimate how many hours the battery can support the fish finder.

Basic Runtime Formula for a 12V Fish Finder Battery

The simplest way to estimate battery runtime is:

Runtime in hours = Battery capacity in Ah ÷ Fish finder current draw in A

For example, if you are using a 12V 10Ah battery with a fish finder that draws 0.42A:

10Ah ÷ 0.42A = about 23.8 hours

That is the ideal runtime. In real fishing conditions, you should reduce that estimate to allow for cold temperatures, battery age, voltage cut-off, screen brightness, wiring losses, and other connected devices.

Estimated Fish Finder Runtime Chart

The table below gives practical theoretical estimates for common 12V battery sizes. These numbers assume the battery is fully charged, in good condition, and powering only the fish finder.

For most day trips, a 10Ah to 20Ah battery is often enough for a compact fish finder. For longer outings, ice fishing shelters, kayak electronics, or fish finders with larger screens, a higher-capacity lithium battery gives more breathing room.

Why Real-World Runtime Is Usually Shorter

Runtime formulas are useful, but they do not account for everything that happens on the water. Canadian fishing conditions can be especially demanding because temperatures can shift quickly from warm afternoons to cold mornings or late evenings.

Cold Weather

Batteries generally perform worse in cold conditions. This is especially noticeable during spring fishing, late fall trips, or ice fishing. A battery that performs well in summer may deliver less usable energy when temperatures drop.

Battery Age and Condition

Older batteries lose capacity over time. If a battery is rated at 20Ah but has been deeply discharged many times, left unused for months, or charged with the wrong charger, its actual usable capacity may be much lower.

Screen Brightness and Extra Features

High screen brightness, GPS mapping, side imaging, wireless features, and constant sonar scanning can all increase power use. If you run your display at maximum brightness all day, expect shorter runtime than the manual’s basic power rating suggests.

Other Devices on the Same Battery

If your 12V battery also powers navigation lights, a livewell pump, USB chargers, or other electronics, all of those loads reduce fish finder runtime. For better reliability, many anglers prefer keeping the fish finder on its own dedicated battery.

Lead-Acid vs Lithium for Fish Finder Power

Both lead-acid and lithium batteries can run a 12V fish finder, but they behave differently in real use. For anglers who carry gear to a dock, launch a kayak, or move between fishing spots, weight and usable capacity can make a big difference.

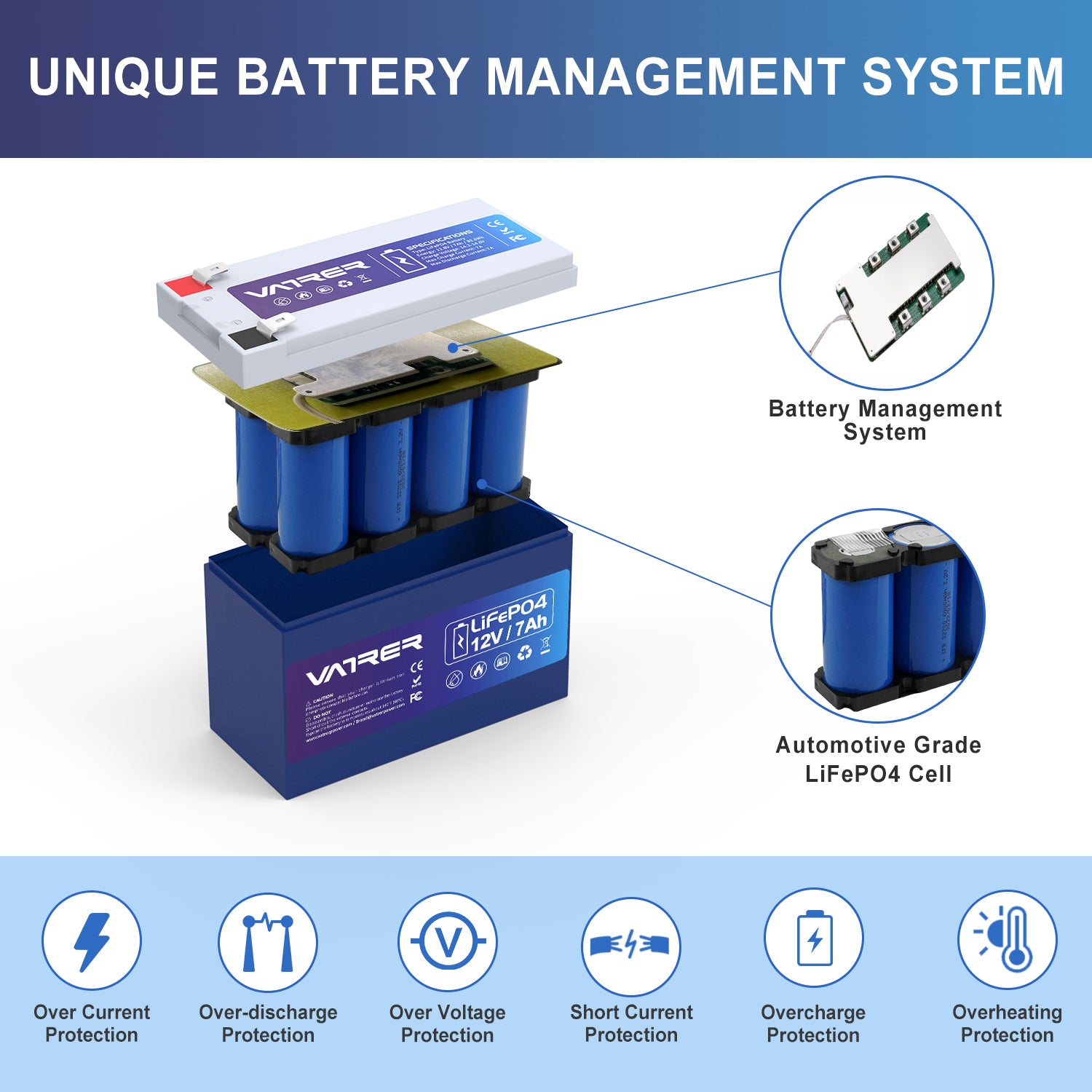

A LiFePO4 battery is often the most practical choice for modern fish finders because it maintains a steadier voltage through most of its discharge cycle. That means your fish finder is less likely to dim, restart, or shut down early because of voltage sag.

How to Choose the Right 12V Battery Size

The best battery size depends on how long you fish, how much power your electronics use, and how much safety margin you want.

For Short Trips

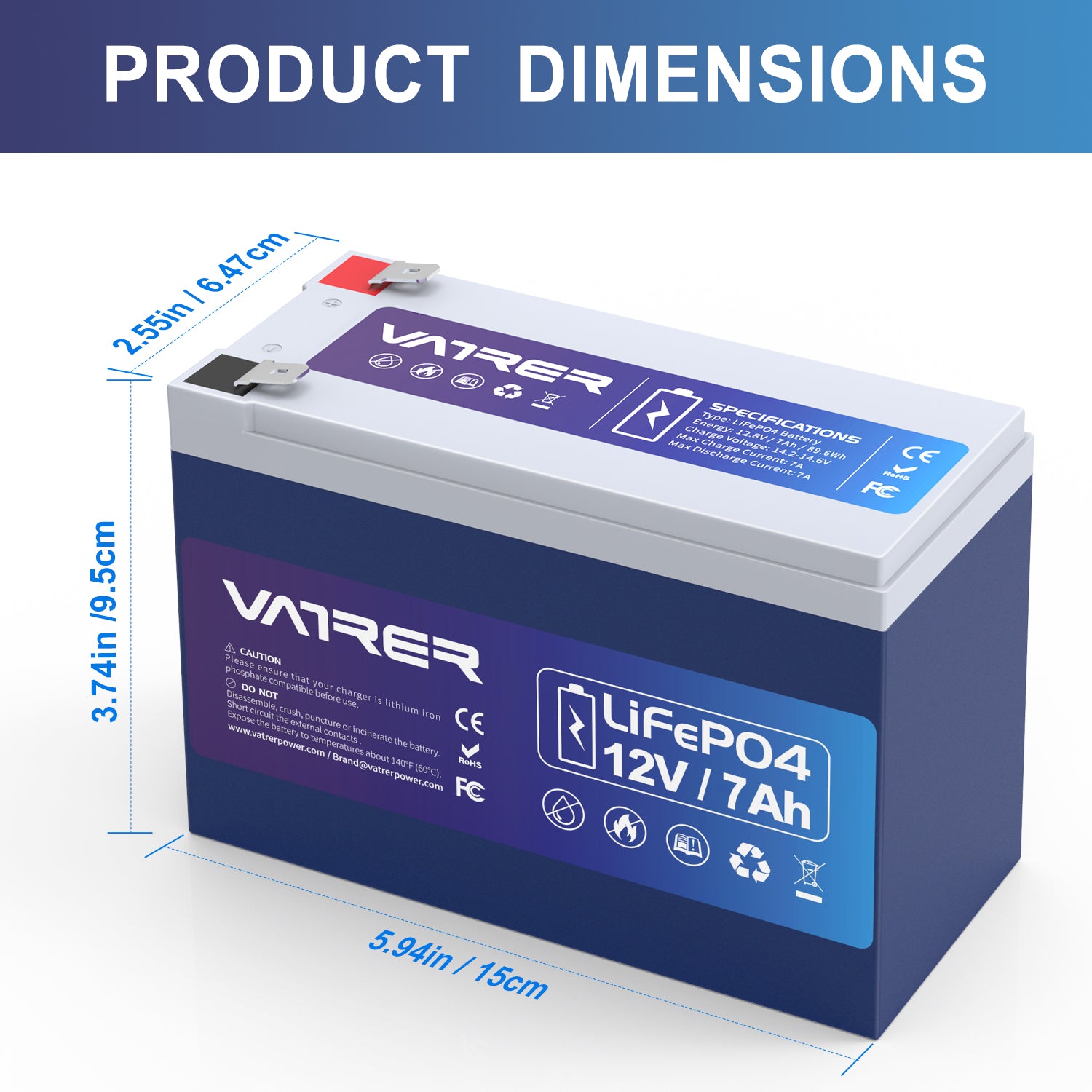

If you usually fish for 3 to 6 hours with a compact fish finder, a 12V 7Ah to 10Ah battery may be enough. This setup is light, portable, and easy to carry in a kayak, canoe, or small boat.

For Full-Day Fishing

For 8 to 12 hours on the water, a 12V 20Ah lithium battery is a more comfortable choice. It gives extra capacity for colder mornings, brighter screen settings, and occasional GPS use.

For Multi-Day or Remote Trips

If you are heading to a remote lake, camping near the water, or spending a weekend at a cottage without easy charging access, consider a larger battery or a second backup battery. A compact solar charging setup can also help maintain charge between uses, depending on weather and sunlight.

Tips to Make Your Fish Finder Battery Last Longer

• Start fully charged: Charge your battery before every trip, especially if it has been sitting in storage.
• Use the right charger: Lithium and lead-acid batteries require different charging profiles. Always use a charger compatible with your battery type.
• Lower screen brightness when possible: Bright displays are useful in direct sun, but reducing brightness can extend runtime.
• Turn off unused features: Disable WiFi, Bluetooth, or mapping functions if you do not need them.
• Keep connections clean: Corroded or loose terminals can cause voltage drops and unreliable performance.
• Avoid deep discharge: Repeatedly draining a battery completely can shorten its lifespan, especially with lead-acid batteries.
• Protect the battery from moisture: Use a dry battery box or protected compartment to reduce exposure to spray, rain, and slush.
• Bring backup power for long outings: A spare battery is inexpensive insurance when fishing far from the launch.

Example: Planning Battery Size for a Day on the Water

Let’s say your fish finder uses 10W and you plan to fish for 10 hours.

• Step 1: Convert watts to amps: 10W ÷ 12V = 0.83A.
• Step 2: Multiply current by fishing time: 0.83A × 10 hours = 8.3Ah.
• Step 3: Add a safety margin for cold weather, battery age, and screen brightness.

In this case, a 10Ah battery might work in ideal conditions, but a 20Ah battery would be a smarter choice. It gives you extra capacity without pushing the battery to its limit.

Final Thoughts

A 12V battery can run a fish finder anywhere from several hours to more than a full day, depending on battery size and fish finder power draw. The key is to check your fish finder’s wattage, convert that number to amps, and divide your battery’s amp-hour rating by the current draw.

For casual short trips, a small 12V battery may be enough. For serious anglers, kayak setups, ice fishing, or long days on Canadian lakes, a larger 12V lithium battery offers better usable capacity, lower weight, and more dependable performance.

Plan your battery setup before you launch, leave room for real-world conditions, and your fish finder will stay powered when you need it most.
