Battery Group Size Chart: BCI Dimensions and Fit Guide for Canada

Finding a replacement battery in Canada involves more than matching the voltage printed on the label. A battery may be electrically suitable but too long for the tray, too tall for the battery box or built with its positive terminal on the wrong side. These problems become especially frustrating when the installation is outdoors, inside an RV compartment or being completed during cold weather.

A BCI battery group size chart gives you a practical starting point. It helps compare case dimensions and terminal arrangements across automotive, marine, RV and deep-cycle batteries. The Group number does not, however, guarantee a particular Ah capacity, cold-cranking rating, runtime, weight or chemistry.

BCI Battery Group Size and Dimensions Chart

The following chart lists common battery cases found in Canadian cars, pickup trucks, SUVs, RVs, travel trailers, boats, golf carts and backup-power systems. Metric measurements are shown first, followed by inches.

These measurements help narrow the choices, but they do not replace the specification sheet for the exact battery. Handles, vent fittings, bottom ledges, terminal studs and protective covers may change the installed footprint.

• Dimensions are listed as length × width × height.
• A Group measurement normally represents a maximum standard envelope.
• Terminal hardware can extend above the published case height.
• Some lithium models are smaller than the standard case they are designed to replace.
• Allow installation and removal clearance instead of planning for a zero-clearance fit.

What a BCI Group Number Tells You

Battery Council International Group numbers provide a standard reference for battery dimensions and fitment features. They are commonly used throughout Canada and the United States, especially for automotive, marine, RV and commercial batteries.

The Group number can help identify:

• Maximum case dimensions
• Terminal arrangement
• Nominal voltage category
• Mounting ledges or hold-down features
• Other physical details that affect installation

It does not tell you how well the battery will start a vehicle during a Prairie cold snap, how many hours it will operate an RV furnace or whether it can run a large inverter.

Physical Fit and Electrical Performance Are Separate

A battery first needs to fit the compartment safely. After that, it needs the correct performance ratings for the job.

• CCA: A key specification for vehicles operated in cold Canadian winters.
• Ah and Wh: Useful when sizing RV, marine, cottage or backup-power batteries.
• Reserve capacity: Commonly used for lead-acid automotive and marine batteries.
• Continuous current: Important for inverters, trolling motors and other sustained loads.
• Peak current: Relevant to motor startup and short-duration high-power loads.

Never select a battery based only on the case size when the installation has demanding electrical loads.

Terminal Layout and Cable Reach

Reversed terminals are one of the most common reasons an apparently correct battery does not work. Cold, stiff battery cables also provide less flexibility during a winter installation, making correct terminal placement even more important.

Confirm:

• Which side holds the positive terminal
• Top-post, side-post, marine or threaded-stud design
• Post or thread size
• Terminal height with cables installed
• Cable routing around covers and brackets
• Room for a natural cable bend

A cable should never need to be stretched across the battery or pulled sideways against a threaded terminal.

What Does the “R” Suffix Mean?

In many battery families, an “R” identifies reversed terminal orientation. Group 51 and Group 51R, for example, use similar case dimensions but place the terminals differently.

Other suffixes may indicate changes in case shape, terminal design or application. Always match the complete designation shown by the vehicle fitment guide or equipment manufacturer.

H6, H7 and H8 Cross-References

Canadian vehicles include a mixture of North American, European and Asian platforms, so shoppers often see BCI, H-series, DIN, EN and JIS labels in the same market.

• Group 48 / H6 / L3: 278 × 175 × 190 mm
• Group 94R / H7 / L4: 315 × 175 × 190 mm
• Group 49 / H8 / L5: 353 × 175 × 190 mm

These sizes share a similar width and height, while the case length increases. Check the vehicle-approved fitment rather than assuming the longest case is the best choice.

Common Group Sizes for Canadian Applications

Cars, SUVs and Pickup Trucks

For automotive replacement, use a fitment guide for the exact model year, engine and trim. Then verify the Group suffix, polarity, cold-cranking performance, chemistry, vent connection and hold-down design.

Cold-weather starting deserves particular attention. The replacement battery should meet or exceed the vehicle manufacturer’s approved CCA requirement without changing to an unapproved case or battery technology.

Many late-model vehicles use AGM or EFB batteries to support start-stop operation and increased electrical demand. Replacing one of these with an ordinary flooded battery may reduce performance or conflict with the charging strategy.

Some vehicles also require battery registration or a battery-management reset after installation.

RVs, Motorhomes and Travel Trailers

An RV house battery needs enough energy for the loads used while camping, but it must also fit the battery box and remain accessible for service.

Common sizes include:

• Group 24: Suitable for compact exterior boxes and smaller trailers.
• Group 27: A longer case often used when more battery space is available.

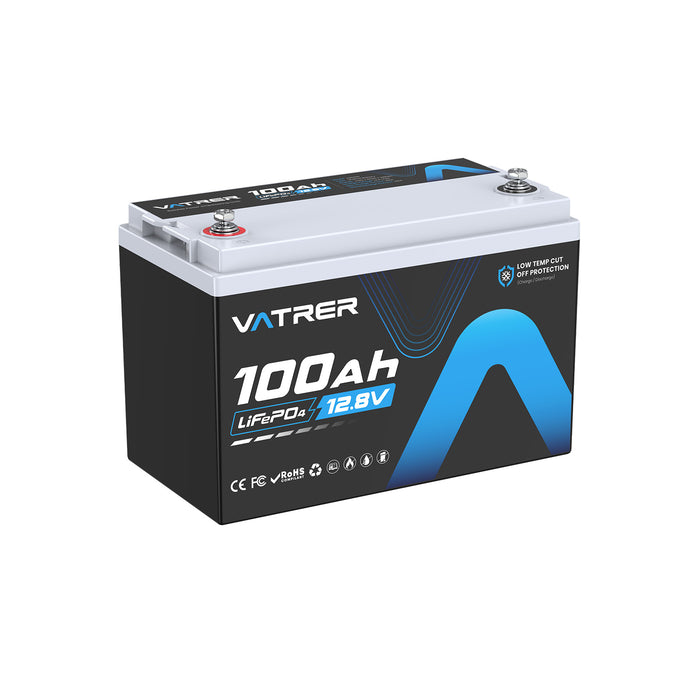

• Group 31: Common in larger motorhomes and higher-demand house systems.
• GC2: Often installed as a multi-battery bank.

Canadian RV owners should also consider furnace runtime, winter storage, low-temperature charging, compartment heating and solar-charging performance during shorter winter days.

A 12.8V 100Ah battery contains a nominal 1,280Wh of energy. Real-world runtime depends on inverter efficiency, temperature, cable losses, standby loads and how much of the battery’s capacity is usable.

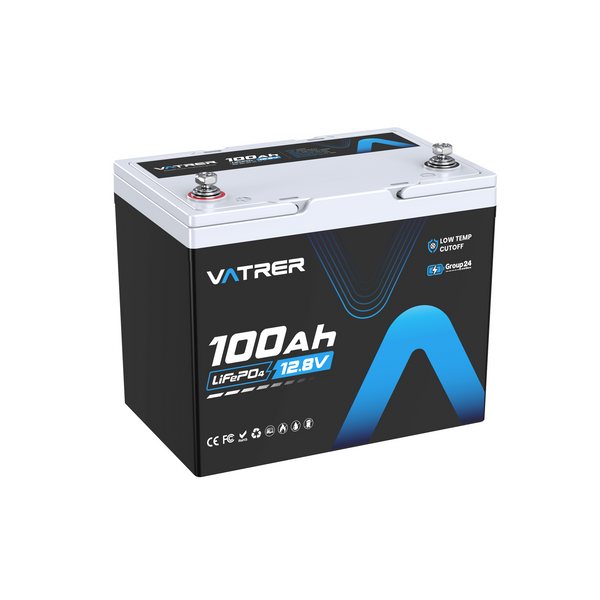

A Group 24-compatible 100Ah LiFePO4 battery can be a practical option when the compartment does not have enough length for Group 27 or Group 31. Before installation, verify the exact case size, BMS current rating, charging-temperature limits and restraint points.

Boats and Trolling Motors

Canadian boating conditions range from inland lakes to coastal saltwater, but every installation needs secure restraint, protected terminals and the correct battery for each electrical function.

• Use a cranking-rated battery for engine starting.
• Use a deep-cycle battery for electronics and house loads.
• Match a trolling motor to its required 12V, 24V or 36V battery system.
• Confirm the battery box, lid and tie-down are suitable for rough water.
• Check low-temperature storage and charging requirements before winter.

Groups 24, 27 and 31 are common in recreational boats. Larger 4D and 8D cases are more likely to appear in commercial or high-capacity installations.

Golf Carts and Utility Vehicles

A golf cart uses a complete battery pack, so the total tray arrangement matters more than the dimensions of one battery.

Common configurations include six 6V GC2 batteries, six 8V batteries, four 12V batteries or one integrated lithium pack.

Confirm the pack voltage, tray layout, controller demand, charger profile, cable gauge, fuse rating and winter-storage plan. Vatrer lithium golf cart batteries can reduce the number of individual batteries and cable connections, but the integrated pack still needs secure mounting and full electrical compatibility.

Cottages, Solar Systems and Backup Power

For a cottage or off-grid system, physical size is only one design constraint. Start with daily energy consumption, required autonomy, inverter size and available recharge power.

• Calculate daily use in Wh or kWh.
• Allow for reduced winter solar production.
• Check inverter continuous and surge current.
• Confirm battery charging-temperature limits.
• Provide enough support for the battery weight.
• Leave room for service, wiring and overcurrent protection.

Group 31, 4D and 8D cases may be found in traditional storage banks, while modern lithium systems may use rack-mounted or custom enclosures.

Group 24, Group 27 and Group 31 Compared

Group 24 vs Group 27

Group 27 adds about 46 mm of length compared with Group 24. The width and standard height remain similar, which is why the change sometimes works in an RV or boat compartment with unused space at one end.

Measure the flat tray surface, not the outside of the battery box. Also verify that the hold-down can secure the longer case and that the cables still reach in cold conditions without tension.

Group 27 vs Group 31

Group 31 is only about 24 mm longer than Group 27, but it is approximately 15 mm taller. That additional height can create contact between the terminal hardware and a metal lid, seat frame or compartment cover.

Include cable lugs, washers, terminal nuts, boots and cable bends in the height measurement.

Group 24 vs Group 31

Changing directly from Group 24 to Group 31 adds roughly 70 mm of length. The project may require a different tray, a larger battery box, relocated straps, longer cables and revised support for the battery’s actual weight.

A higher-capacity lithium battery that retains a Group 24-compatible case may be easier than modifying the entire compartment.

How to Measure the Installation

Measure the Tray

Remove the old battery when practical and measure the usable flat surface. Record the narrowest length and width after accounting for raised lips, bolt heads, drains, rounded corners and bracket hooks.

The new battery should sit flat over its full base. It should not rest on a fastener or need to be forced between the sides of the box.

Measure Height to the Lowest Obstruction

Measure from the tray surface to the lowest point above the battery. This may be a hood, metal seat base, lid, shelf or crossbar.

Add together:

• Case height
• Terminal height
• Cable lug and nut height
• Protective terminal cover
• Space required for the cable bend

Allow additional safety clearance around the positive connection.

Check the Cables and Hold-Down

Cables should reach naturally and remain protected from sharp metal. The hold-down should secure the battery during braking, vibration, rough roads or wave action without deforming the case.

Do not use the battery cables as a restraint system.

Confirm the Exact Battery Specifications

Before ordering, check the manufacturer’s drawing for exact dimensions, terminal type, polarity, handle location, case feet, weight, mounting orientation and environmental rating.

LiFePO4 Replacement Considerations

Switching from lead-acid to LiFePO4 can reduce weight and increase usable deep-cycle energy, but the Group Size only addresses part of the conversion.

Charging in Cold Weather

Many LiFePO4 batteries restrict charging around or below 0°C unless the battery includes low-temperature protection or an approved heating function. This is especially important for batteries installed in unheated exterior RV compartments, boats, sheds or seasonal cottages.

Check the exact permitted charging and discharging temperatures. A battery may be able to discharge at a lower temperature than it can safely accept a charge.

Review Every Charging Source

• AC charger
• RV converter
• Alternator or DC-to-DC charger
• Solar charge controller
• Generator-powered charger

Each source must follow the battery manufacturer’s voltage and current limits.

Check the BMS Current Rating

The BMS continuous-current rating must support the inverter, motor or other loads connected to the battery. Low-temperature protection and Bluetooth monitoring are useful features, but they do not replace correctly sized cables, secure terminals or appropriate fusing.

Do Not Assume a Deep-Cycle Battery Can Start an Engine

A general-purpose LiFePO4 house battery should not replace an automotive or marine starting battery unless it has a published cranking specification and is approved for that use.

Final Fit Checklist

• Match the full BCI Group number and suffix.
• Measure the usable tray in millimetres.
• Include terminal hardware in the height calculation.
• Confirm terminal polarity and cable reach.
• Check the hold-down and battery-box lid.
• Match the required CCA for winter starting.
• Compare Ah and Wh for deep-cycle use.
• Check charging and temperature requirements.
• Verify continuous and peak current ratings.
• Use the exact product drawing for the final decision.

Conclusion

A BCI chart is an efficient way to compare battery dimensions, but it cannot replace a complete fitment check. The battery must fit the tray, clear the lid, connect without cable tension and remain secure through Canadian road, boating and winter conditions.

Once the physical installation has been confirmed, match the electrical performance to the application. For a vehicle, that usually means the approved chemistry and enough CCA. For an RV, boat, cottage or backup system, it means sufficient energy, current capability and compatible charging.
