LiFePO4 Battery Voltage Chart: A Comprehensive Guide
Reading time: 12 minutes
With the increasing use of LiFePO4 batteries in various off-grid systems and golf cart systems, many people are perplexed as to why the battery voltage appears normal, yet the actual runtime is unpredictable.
The voltage may stay almost unchanged for hours and then seem to drop suddenly, or it may appear high even when the battery is far from full. This often results in people not being sure the battery or system is working properly.

What Is LiFePO4 Battery Voltage?
LiFePO4 battery voltage refers to the electrical potential produced by lithium iron phosphate cells during charging, resting, and discharging. Unlike lead-acid batteries, LiFePO4 cells operate within a narrower and much more stable voltage range, which is why their voltage behavior often feels unfamiliar to new users.
At the cell level, a single LiFePO4 cell has a nominal voltage of about 3.2V. Higher-voltage battery systems are created by connecting multiple cells in series. As voltage increases, the number of cells increases, but the voltage behavior of each individual cell remains the same.
LiFePO4 Cell Configuration by System Voltage
| Battery System | Cells in Series | Nominal Voltage |
|---|---|---|
| Single Cell | 1 × 3.2V | 3.2V |
| 12V System | 4 × 3.2V | 12.8V |
| 24V System | 8 × 3.2V | 25.6V |
| 36V System | 12 × 3.2V | 38.4V |
| 48V System | 16 × 3.2V | 51.2V |
| 72V System | 24 × 3.2V | 76.8V |
The actual operating voltage will vary depending on the battery's state of charge and load conditions. Therefore, the voltmeter readings obtained by many users will not be exactly the same.
Voltage and State of Charge (SOC): How They're Connected
State of Charge (SOC) describes how much usable energy remains in a LiFePO4 battery, usually expressed as a percentage. While voltage and SOC are closely related, their relationship in LiFePO4 batteries is very different from what many users are familiar with when coming from lead-acid systems.
The key characteristic of LiFePO4 chemistry is its flat voltage curve. Instead of declining steadily as energy is used, the battery holds a nearly constant voltage across most of its usable capacity. This means voltage changes do not map linearly to SOC, and understanding the trend is far more important than focusing on a single number. The voltage-SOC relationship can be divided into three zones.
High SOC range (about 100%-80%)
Voltage drops relatively quickly from the fully charged level. This is why a battery may show a noticeable voltage decrease soon after charging ends, even though very little energy has actually been used.
Mid SOC range (about 80%-20%)
Voltage remains extremely stable and changes very little. A large portion of the battery's usable capacity sits in this flat plateau, which is why voltage readings often look stuck for hours during normal use.
Low SOC range (below ~20%)
Voltage begins to fall more rapidly. Once the battery leaves the plateau, remaining capacity drops quickly, and BMS low-voltage protection may activate soon after.
Note: For accurate tracking, voltage readings are best combined with BMS-based SOC estimation or amp-hour counting rather than relied on alone.
3.2V LiFePO4 Battery Voltage Chart
Single-cell voltage are useful for understanding how LiFePO4 battery packs behave internally. While most users interact with full battery systems, the BMS monitors individual cell voltage to maintain balance and safety.

3.2V LiFePO4 Cell Voltage Chart
| SOC | Resting Voltage | Voltage Under Load |
|---|---|---|
| 100% | 3.40 - 3.45V | 3.30 - 3.35V |
| 80% | 3.30 - 3.33V | 3.20 - 3.25V |
| 50% | 3.25 - 3.28V | 3.15 - 3.20V |
| 20% | 3.15 - 3.20V | 3.00 - 3.10V |
| 0 - 10% | 2.90 - 3.00V | ≤ 2.90V |
The voltage range across most of the SOC is very narrow. This explains why small voltage changes at the system level can represent large shifts in remaining capacity, especially near the bottom of the discharge cycle.
12V LiFePO4 Battery Voltage Chart
The 12V LiFePO4 battery is built from four 3.2V cells connected in series, its voltage remains relatively stable across most of the discharge cycle. It is one of the most common lithium battery formats on the market and is widely used in RVs, marine systems, portable solar setups, and golf carts.

12V LiFePO4 Battery Voltage Chart
| SOC | Resting Voltage | Voltage Under Load |
|---|---|---|
| 100% | 13.4 - 13.6V | 13.0 - 13.2V |
| 75% | 13.2 - 13.3V | 12.9 - 13.0V |
| 50% | 13.0 - 13.1V | 12.7 - 12.9V |
| 25% | 12.8 - 12.9V | 12.4 - 12.6V |
| Low / Cutoff | 12.0 - 12.5V | ≤ 12.0V |
For 12V LiFePO4 systems, voltage around 13.0V usually indicates normal operation rather than a near-full battery. Voltage drops below 12.5V under load typically signal that the battery is approaching its lower usable range.
24V LiFePO4 Battery Voltage Chart
24V LiFePO4 batteries are commonly used in medium-sized solar installations, marine trolling motor, and industrial applications. By doubling system voltage compared to 12V setups, they reduce current flow for the same power output, improving overall efficiency.

24V LiFePO4 Battery Voltage Chart
| SOC | Resting Voltage | Voltage Under Load |
|---|---|---|
| 100% | 26.8 - 27.2V | 26.0 - 26.4V |
| 75% | 26.4 - 26.6V | 25.8 - 26.0V |
| 50% | 26.0 - 26.2V | 25.4 - 25.8V |
| 25% | 25.6 - 25.8V | 24.8 - 25.2V |
| Low / Cutoff | 24.0 - 25.0V | ≤ 24.0V |
In 24V systems, voltage readings tend to recover quickly after load removal. Persistent readings near the cutoff range suggest it is time to reduce load or recharge.
36V LiFePO4 Battery Voltage Chart
36V LiFePO4 batteries are frequently used in electric mobility applications such as golf carts and light electric vehicles. These systems strike a balance between manageable voltage levels and improved power delivery.
LiFePO4 systems at this voltage maintain stability far longer during discharge than their lead-acid counterparts.

36V LiFePO4 Battery Voltage Chart
| SOC | Resting Voltage | Voltage Under Load |
|---|---|---|
| 100% | 40.2 - 40.8V | 39.0 - 39.6V |
| 75% | 39.6 - 40.0V | 38.4 - 38.8V |
| 50% | 39.0 - 39.4V | 37.8 - 38.2V |
| 25% | 38.4 - 38.8V | 36.8 - 37.4V |
| Low / Cutoff | 36.0 - 37.0V | ≤ 36.0V |
For 36V systems, noticeable voltage drops under load are normal during acceleration or climbing. What matters most is whether voltage rebounds when load decreases.
48V LiFePO4 Battery Voltage Chart
48V LiFePO4 batteries are the standard for modern home energy storage and off-grid solar installations. Their higher voltage allows for lower current, better inverter efficiency, and easier system expansion. Furthermore, many mainstream brand golf cart models, such as Yamaha Club Car, also use 48V systems.

48V LiFePO4 Battery Voltage Chart
| SOC | Resting Voltage | Voltage Under Load |
|---|---|---|
| 100% | 53.5 - 54.5V | 52.0 - 53.0V |
| 75% | 52.5 - 53.0V | 51.5 - 52.0V |
| 50% | 51.5 - 52.0V | 50.5 - 51.0V |
| 25% | 50.5 - 51.0V | 49.0 - 49.5V |
| Low / Cutoff | 48.0 - 49.0V | ≤ 48.0V |
In 48V systems, voltage alone becomes less intuitive as a battery gauge. Pairing voltage data with BMS-based SOC readings provides much more reliable system insight.
72V LiFePO4 Battery Voltage Chart
72V LiFePO4 batteries are used in high-performance electric vehicles and heavy-duty applications. Because energy density is high, even small voltage changes represent significant energy shifts. As a result, 72V system voltage should always be used alongside active monitoring tools.

72V LiFePO4 Battery Voltage Chart
| SOC | Resting Voltage | Voltage Under Load |
|---|---|---|
| 100% | 80.0 - 82.0V | 78.0 - 79.5V |
| 75% | 78.5 - 79.5V | 76.5 - 77.5V |
| 50% | 77.0 - 78.0V | 74.5 - 75.5V |
| 25% | 75.5 - 76.5V | 72.5 - 73.5V |
| Low / Cutoff | 72.0 - 73.0V | ≤ 72.0V |
For 72V systems, voltage charts safe operating boundaries rather than usable fuel levels. Consistent monitoring and conservative cutoff settings are essential.
Why Resting Voltage and Load Voltage Are Different
Resting voltage is measured when the battery is disconnected from loads and allowed to stabilize.
Voltage under load reflects the real-time electrical pressure while powering equipment.
When current flows, internal resistance causes a temporary voltage drop. This effect is more noticeable under high loads and does not necessarily indicate low capacity or battery issues. Allowing the battery to rest provides a clearer view of true SOC.
LiFePO4 Battery Charging Voltage Parameters
Proper charging voltage ensures the battery reaches full usable capacity without unnecessary stress on the cells.
Unlike lead-acid batteries, LiFePO4 batteries operate within a narrower charging voltage window. They do not rely on prolonged float charging or aggressive overvoltage to maintain capacity. Instead, precise charge control is key. Understanding these parameters helps you configure chargers, solar controllers, and inverters correctly.
LiFePO4 Charging Voltage Parameters by System Voltage
| Parameter | Single Cell (3.2V) | 12V System | 24V System | 36V System | 48V System |
|---|---|---|---|---|---|
| Constant Voltage (Absorption / CV) |
3.50 - 3.60V | 14.0 - 14.4V | 28.0 - 28.8V | 42.0 - 43.2V | 56.0 - 57.6V |
| Maximum Charge Voltage | 3.65V | 14.6V | 29.2V | 43.8V | 58.4V |
| Float Voltage (Maintenance) |
3.35 - 3.40V | 13.4 - 13.6V | 27.0 - 27.2V | 40.5 - 40.8V | 54.0 - 54.4V |
| Equalization Voltage | Not recommended | Not recommended | Not recommended | Not recommended | Not recommended |
| Nominal Voltage | 3.2V | 12.8V | 25.6V | 38.4V | 51.2V |
| Typical Low Voltage Cutoff |
2.8 - 3.0V | 11.8 - 12.0V | 23.6 - 24.0V | 35.4 - 36.0V | 47.5 - 48.0V |
LiFePO4 charging parameters are more controlled and less forgiving of overvoltage than lead-acid batteries. While float voltage values exist, they are optional and often unnecessary. Most LiFePO4 batteries reach full charge during the constant-voltage phase and do not benefit from extended high-voltage holding. Correctly setting these values helps maximize usable capacity while preserving long-term cycle life.
LiFePO4 vs Lead-Acid Battery Voltage Differences
Although LiFePO4 and lead-acid batteries may share the same nominal system voltages, but their actual voltage behavior across the charge and discharge cycle is fundamentally different. These differences become even more pronounced as system voltage increases.
LiFePO4 vs Lead-Acid Battery Voltage Comparison
| System | SOC | LiFePO4 Resting | LiFePO4 Under Load | Lead-Acid Resting | Lead-Acid Under Load |
|---|---|---|---|---|---|
| 12V | 100% | 13.4 - 13.6V | 13.0 - 13.2V | 12.6 - 12.8V | 12.2 - 12.4V |
| 50% | 13.0 - 13.1V | 12.7 - 12.9V | 12.0 - 12.2V | 11.6 - 11.8V | |
| 0% | 12.0 - 12.5V | ≤ 12.0V | 11.5 - 11.8V | ≤ 11.0V | |
| 24V | 100% | 26.8 - 27.2V | 26.0 - 26.4V | 25.2 - 25.6V | 24.4 - 24.8V |
| 50% | 26.0 - 26.2V | 25.4 - 25.8V | 24.0 - 24.4V | 23.2 - 23.6V | |
| 0% | 24.0 - 25.0V | ≤ 24.0V | 23.0 - 23.6V | ≤ 22.0V | |
| 36V | 100% | 40.2 - 40.8V | 39.0 - 39.6V | 37.8 - 38.4V | 36.6 - 37.2V |
| 50% | 39.0 - 39.4V | 37.8 - 38.2V | 36.0 - 36.6V | 34.8 - 35.4V | |
| 0% | 36.0 - 37.0V | ≤ 36.0V | 34.5 - 35.5V | ≤ 33.0V | |
| 48V | 100% | 53.5 - 54.5V | 52.0 - 53.0V | 50.4 - 51.2V | 48.8 - 49.6V |
| 50% | 51.5 - 52.0V | 50.5 - 51.0V | 48.0 - 48.8V | 46.4 - 47.2V | |
| 0% | 48.0 - 49.0V | ≤ 48.0V | 46.0 - 47.0V | ≤ 44.0V | |
| 72V | 100% | 80.0 - 82.0V | 78.0 - 79.5V | 75.6 - 76.8V | 73.0 - 74.0V |
| 50% | 77.0 - 78.0V | 74.5 - 75.5V | 72.0 - 73.5V | 69.5 - 71.0V | |
| 0% | 72.0 - 73.0V | ≤ 72.0V | 69.0 - 70.5V | ≤ 67.0V |
At the same state of charge, LiFePO4 batteries have a much higher and more stable voltage than lead-acid batteries, especially between 80% and 20%. Secondly, under load, lead-acid batteries experience a greater voltage drop, which directly reduces usable power and may cause premature system shutdown.
As the system voltage increases, a small voltage change in a high-voltage LiFePO4 battery system represents a huge energy transfer, while a lead-acid lithium battery system will experience a voltage drop earlier and more significantly.
How to Measure LiFePO4 Battery Status Accurately
Because LiFePO4 batteries maintain a stable voltage through most of their discharge cycle, accurately judging battery status requires more than a single voltage reading. The most reliable approach combines several indicators, each serving a specific purpose in understanding real battery condition.
Voltage Monitoring (Operating Range Check)
Voltage is best used to identify whether the battery is operating within a normal, low, or cutoff range. Readings taken after the battery has rested (no load for several minutes) provide the most meaningful reference. Sudden voltage drops under load are normal and should be evaluated based on recovery behavior rather than absolute numbers.
BMS-based State of Charge (SOC)
The Battery Management System estimates SOC using internal cell data and charge/discharge tracking. This provides a far more accurate picture of remaining capacity than voltage alone, especially in the mid-SOC range where voltage changes very little.
Amp-Hour (Ah) Tracking
Tracking amp-hours in and out of the battery shows how much energy has actually been used. This method is particularly useful for systems with predictable daily loads, allowing users to estimate remaining runtime regardless of voltage stability.
Temperature Monitoring
Battery temperature affects both available capacity and voltage response. Cold conditions may temporarily reduce usable energy, while excessive heat can limit charging or trigger protection. Interpreting voltage without considering temperature can lead to incorrect conclusions.
Load behavior Observation
Monitoring how voltage behaves when loads are applied and removed reveals more than static measurements. A healthy LiFePO4 battery will show voltage sag under load and rapid recovery afterward. Slow recovery or repeated cutoffs may indicate configuration issues or excessive load.
Bluetooth or Display-based Monitoring Tools
Integrated displays or mobile apps combine voltage, SOC, current, and temperature into a single view. These tools reduce guesswork and allow users to identify trends over time rather than reacting to isolated readings.
Does Voltage Affect LiFePO4 Battery Performance?
Voltage plays a direct role in how a LiFePO4 battery delivers energy and interacts with connected systems. While LiFePO4 chemistry is known for its stable voltage profile, operating voltage still influences how efficiently and safely the battery performs over time.
- Capacity and energy density:Operating consistently within recommended voltage ranges allows the battery to deliver its rated capacity without overstressing the cells. Staying too close to the upper or lower voltage limits may reduce the usable portion of the battery's energy over repeated cycles.
- Power output:Stable voltage supports consistent power delivery, especially during high-load operation. When voltage drops too quickly under load, connected devices such as inverters or motors may reduce output or shut down to protect themselves.
- Charging characteristics:Proper charge voltage ensures balanced cell charging and prevents overvoltage stress. Excessive charging voltage can accelerate cell aging, while insufficient voltage may lead to incomplete charging and reduced available energy.
- System efficiency:Voltage stability directly affects overall system efficiency. A well-regulated voltage range reduces unnecessary current draw, minimizes conversion losses in inverters, and helps the system run cooler and more reliably.
In practice, voltage does not just indicate battery status, it actively shapes how a LiFePO4 battery performs day to day. Maintaining appropriate voltage ranges helps preserve capacity, ensures stable power output, improves charging behavior, and enhances overall system efficiency. Combined with protection and optimization through a battery management system (BMS), this ensures optimal long-term battery performance.
Conclusion
Understanding the voltage profile of LiFePO4 batteries is an essential part of properly managing battery systems. Precise battery management stems from combining voltage graphs with reasonable charging limits, conservative discharge settings, and an understanding of how load and temperature affect actual performance. Avoiding frequent full charges and deep discharges, and setting appropriate cut-off points, helps maintain battery capacity, improve system stability, and extend overall battery life.
Vatrer Power LiFePO4 batteries feature a built-in Battery Management System (BMS) that proactively protects against the effects of overcharging, over-discharging, overcurrent, and extreme temperatures. Furthermore, via Bluetooth connectivity and a display screen, you can view voltage, charge, current, and temperature in real time. Instead of guessing based solely on voltage, you can make informed decisions based on clear data.
Share
7 comments
Bitte bei 48 Volt auf ein 16 Zellensystem hinweisen. Bei einem 15 Zellensystem wie Pylontech sind die angegebenen Spannungen nicht zutreffend.

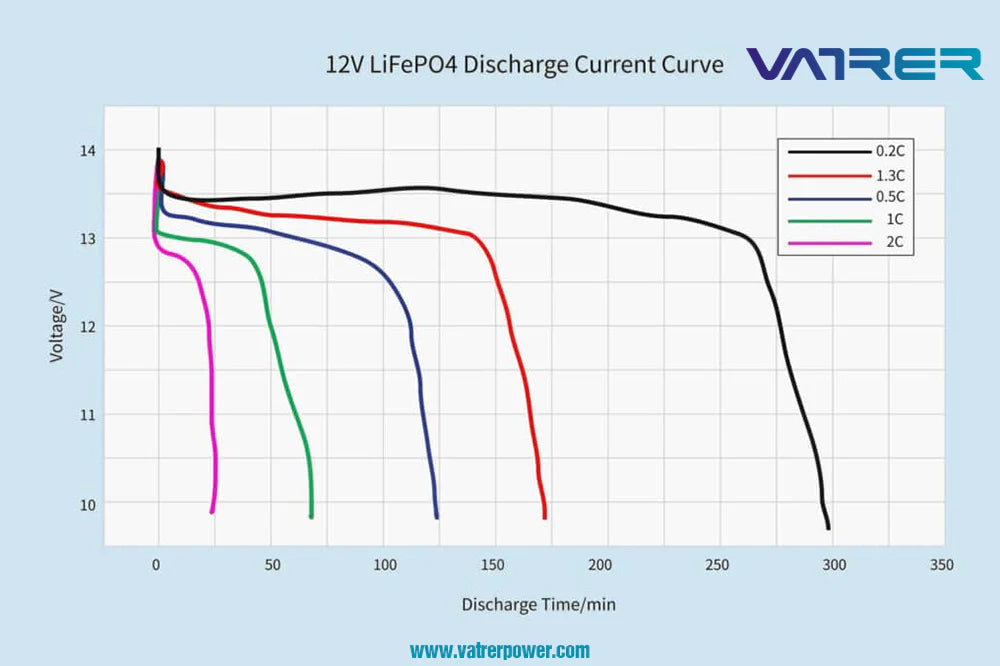

I think the red discharge current curve should be labeled 0.3 not 1.3
