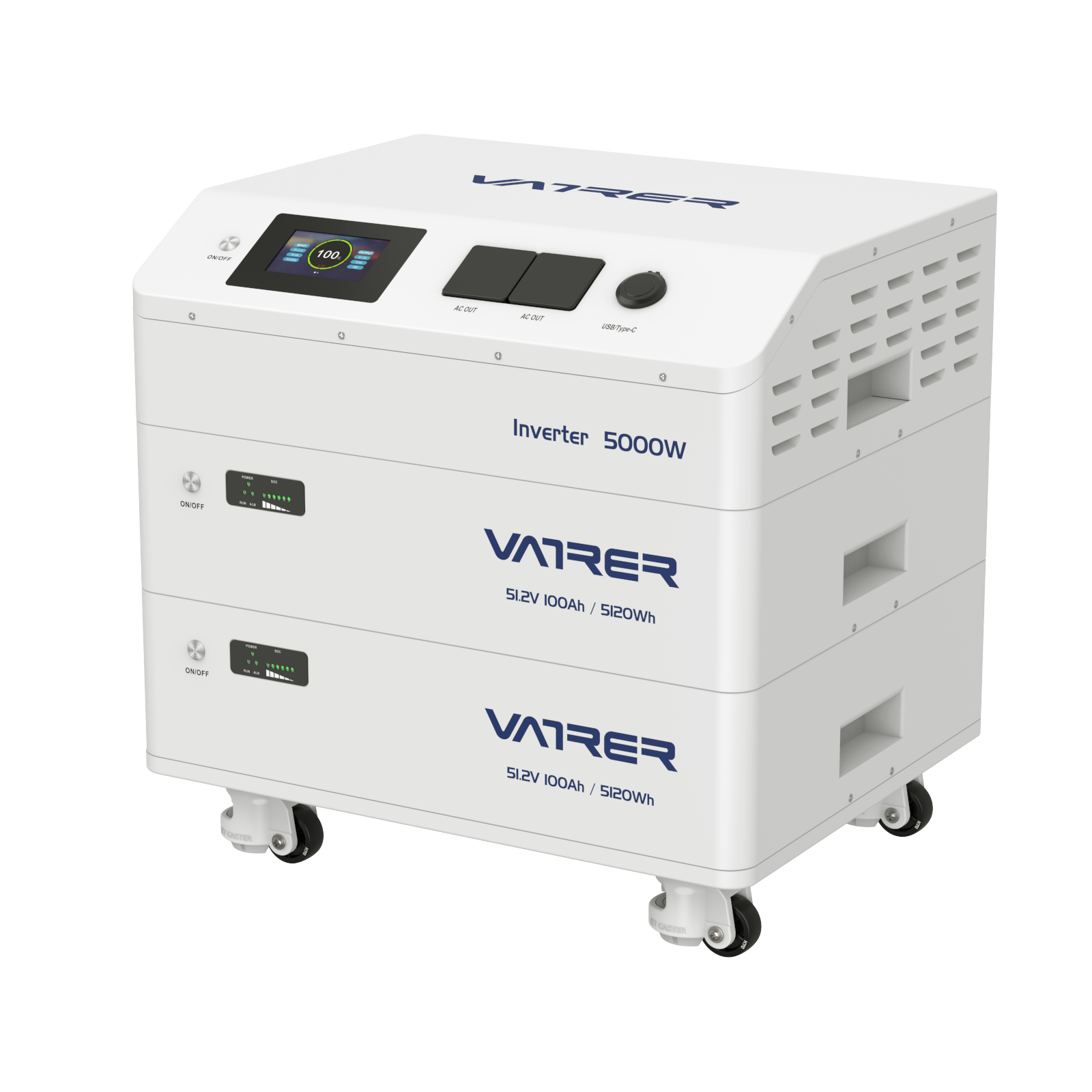

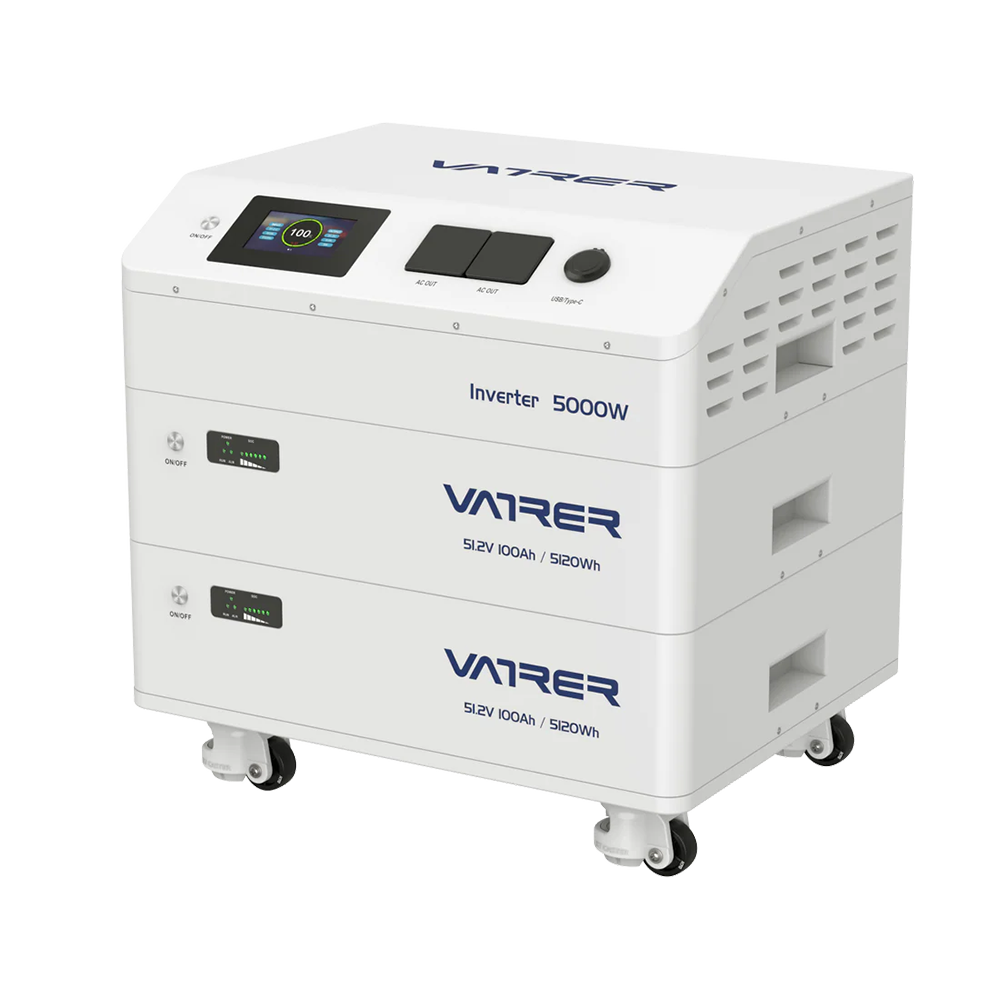

Vatrer 48V (51.2V) 100Ah Stacked 2 Cells Modular LFP Battery Pack, All-In-One battery, 5,000W Inverter, 6,000+ Cycles Life, Up to 6 Batteries in Parallel
【Modular Design】The system supports parallel stacking of up to six battery modules, each with a capacity of 51.2V 100Ah 5.12kWh. Users can flexibly adjust the total system capacity from 5kWh to 30kWh according to specific energy needs, suitable for various commercial and residential scenarios.
【Multiple Charging Modes】Offers a variety of charging mode options, including PV First (solar priority), AC First (grid priority), PV Plus AC (hybrid charging), and PV Only (solar charging only), ensuring efficient energy management under different energy acquisition methods.
【Intelligent Monitoring and Control】Equipped with an LCD display and LED indicators to show system status and battery information in real-time. Through the RS232 communication interface, users can easily monitor and manage the battery's charge and discharge process, ensuring safe system operation.
【Robust and Durable Design】 he system is built to IP20 standards, suitable for indoor installation, and features excellent short-circuit and overcharge protection, ensuring safe use in various environments. It has a wide operating temperature range, adapting to multiple climate conditions.
【Long-term Warranty Service】 The product comes with a 60-month warranty, covering repairs and replacement of parts for quality issues, ensuring a worry-free experience for users. The after-sales service team provides professional maintenance and troubleshooting advice, ensuring the system's continuous and efficient operation.
5% OFF EACH
CODE:CHRISTMAS
Quantity:
Subtotal:
30 Day Price Guarantee
Exclusion of Hawaii (HI), Alaska (AK), and Puerto Rico (PR)
Runtime Calculation
Please enter the power value.
Safety Certifications
200%
2-3x The Power As A Lead Acid Battery
1/3
1/3 the Weight For Equal Usable Power
5X
Charges Up To 5X Faster
100%
100% Depth SOC & DOD
5-Year
5-Year Warranty
Table 1: System Parameters
| Inverter | |
|---|---|
| Maximum PV Input Power | 5500W |
| Maximum PV Voltage | 500V |
| MPPT Voltage Range | 120-500V |
| Number of MPPT | 1 |
| Rated Output Power | 5000W |
| Rated Grid Voltage | 110-120V |
| AC Output Frequency | 50Hz/60Hz |
| System Display | LED Indicator Light/LCD Display |
| Installation | Floor installation |
| Working Temperature | Charge: 0~55°C, Discharge: -20~65°C, Storage: -10~45°C |
| Working Humidity | 5%~95%RH |
Table 2: Battery Cell Parameters
| Module Model | 51.2V 100Ah 5kWh |

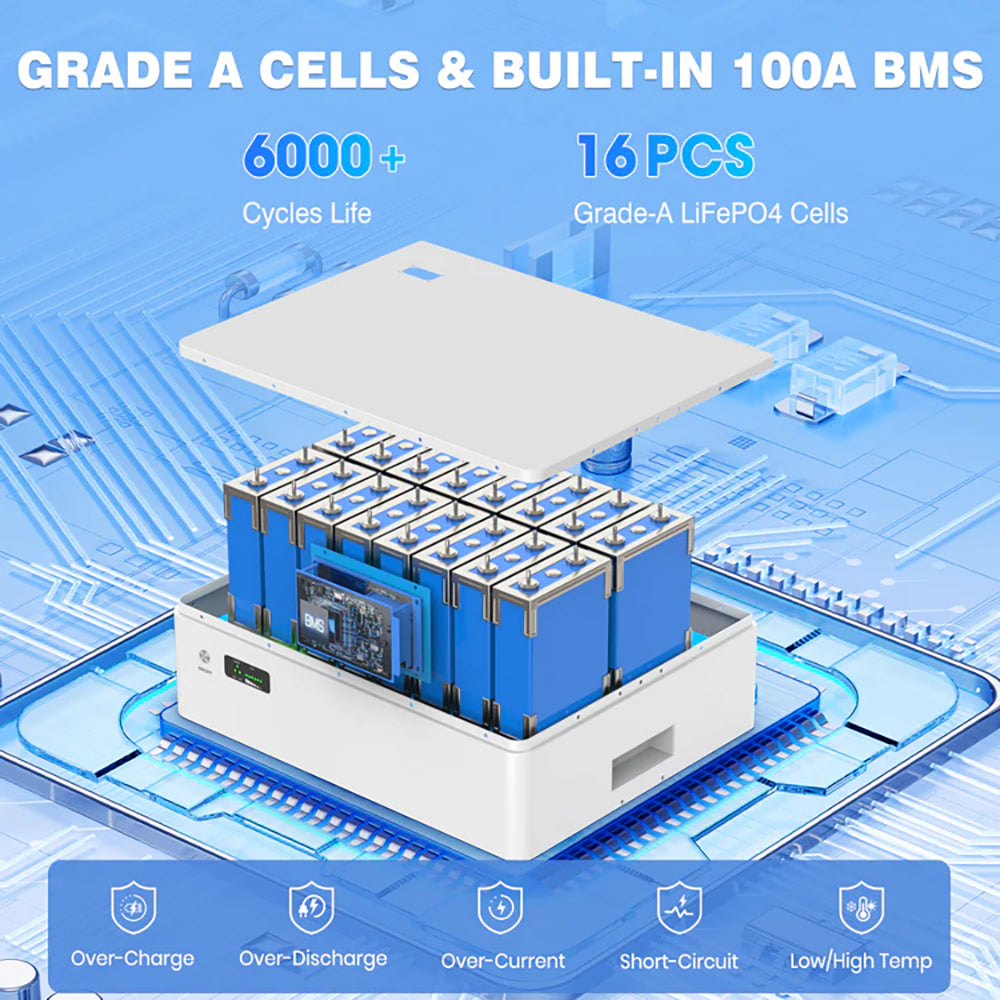

| Cell Model | LFP 3.2V/100Ah |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5.12kWh |
| Working Voltage | 40-58.4V |
| Max. Continuous Charge/Discharge Current | 100A |
| Peak Charge/Discharge Current | 150A |
Table 3: Battery Module Parameters
| Battery Modules | ||||||
|---|---|---|---|---|---|---|
| Battery Module Number | 1 | 2 | 3 | 4 | 5 | 6 |
| Nominal Voltage (V) | 51.2 | |||||
| Nominal Capacity (Ah) | 100 | 200 | 300 | 400 | 500 | 600 |
| Nominal Energy (KWh) | 5.12 | 10.24 | 15.36 | 20.48 | 25.6 | 30.72 |

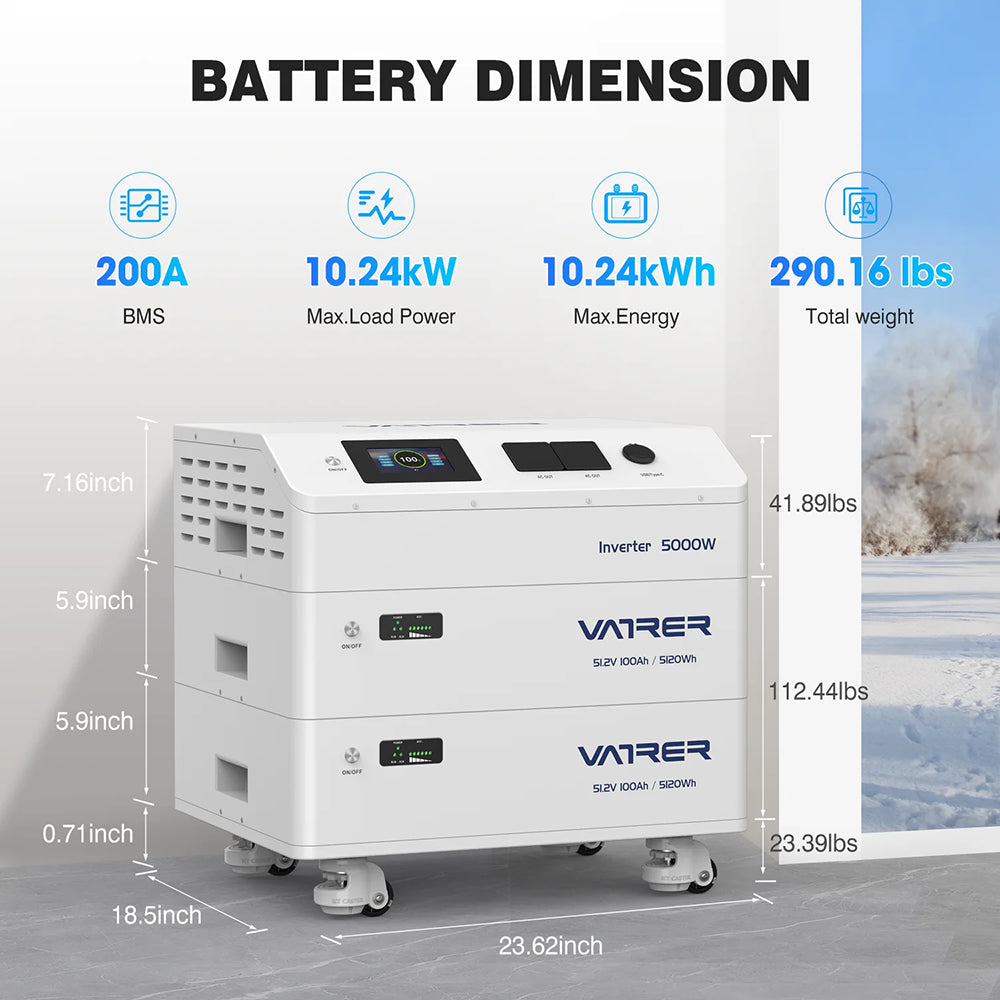

| Dimensions (L * W * H/mm) | 600*470*430 | 600*470*580 | 600*470*730 | 600*470*880 | 600*470*1030 | 600*470*1180 |
| Weight (kg) | 80.60 | 131.60 | 182.60 | 233.60 | 284.60 | 335.60 |
| Max. Stacked Number | 6pcs | |||||
Table 4: Inverter Parameters
| Grid Input | |||
|---|---|---|---|
| Input Voltage Range | 90-140vAC | Max. Efficiency | >95% |
| Frequency | 50Hz/60Hz (automatically match) | ||
| Bypass and Inverter | |||
| Conversion Time | 10ms | Frequency Range | 47±0.3Hz~55±0.3Hz (50Hz), 57±0.3Hz~65±0.3Hz (60Hz) |
| AC Reverse Irrigation | Yes | Overload Short Circuit Protection | Circuit Breaker |
| Max. Bypass Overload Current | 63A | ||
| Inverter Output | |||

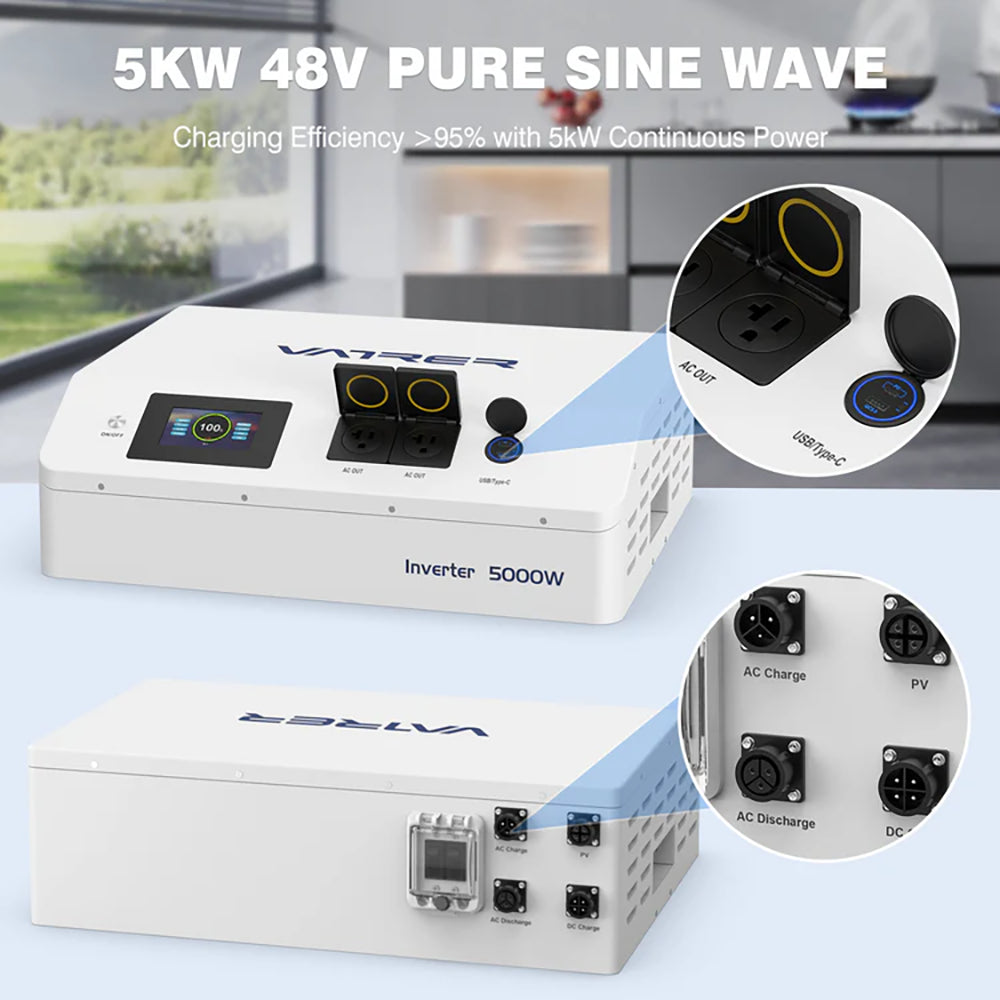

| Output Voltage Waveform | Pure Sine Wave | Peak Power | 10000W |
| Rated Output Power | 5000W | Load Capacity of Motors | 4HP |
| Number of MPPT | 1 | Short-circuit Protection | Circuit Breaker |
| Rated Output Voltage | 120vAC | Bypass Circuit Breaker Specification | 63A |
| Output Voltage Error | ±5% | Battery Rated Input Voltage | 48v (Min start: 44V) |
| Output Frequency Range | 50±0.3Hz~60±0.3Hz | Power Saving Mode | Load≤50W |
| Overload Protecting | (102%<load<110%) ±10%: report an error and turn off the output after 5min; (110%<load<125%) ±10%: report an error and turn off the output after 10s; (load>125%)±10%: report an error and turn off the output after 5s | ||
| Battery Voltage Range | 40vdc~60vdc±0.6vdc | Max. Efficiency | >90% |
| PV Input | |||
| Max. PV Open Circuit Voltage | 500Vdc | Max. Output Power | 5500W |
| PV Working Voltage Range | 120-500Vdc | PV Charge Current | 18A |
| MPPT Voltage Range | 120-450Vdc | Charge short-circuit Protection | Fuse |
| Battery Voltage Range | 40-60Vdc | Anti-connection Protection | Yes |
| Maximum Hybrid Charge Current (PV+AC) | |||
| Charge Current Range | (settable) 0-80A | ||
| General Parameters | |||
| Dimension | 600*470*183mm | Humidity Range | 5%~95%RH |
| Weight | 19kg | Cooling Method | Air cooling |
| Working Temperature Range | -10°C~55°C | Noise | ≤60dB |
| Storage Temperature Range | -25°C~60°C | IP Standard | IP20, indoor only |
Each battery module has a nominal voltage of 51.2V and a capacity of 100Ah, providing 5.12kWh of energy.
Up to 6 battery modules can be connected in parallel, allowing the system capacity to expand up to 30.72kWh.
The system can be charged at temperatures between 0℃ and 55℃, discharged between -20℃ and 65℃, and stored between -10℃ and 45℃.
The system offers several modes:
- Charge Modes: PV First, AC First, PV Plus AC, and PV Only.
- Discharge Modes: PV First, AC First, and INV First.
The system includes multiple safety features such as overcharge protection, overcurrent protection, short circuit protection, and more. It also has alarms for low SOC and other potential issues.
The system should be stored in a temperature range of 0℃ to 45℃, with a state of charge (SOC) between 30% and 60%. It should be charged every three months if stored for extended periods.
If the system is not functioning correctly, refer to the inverter display instructions in the user manual to diagnose and resolve the issue. Ensure that the battery is charged and discharged for SOC calibration when powered on for the first time.
No, the system is designed for indoor installation only. It should be placed in a safe, dry location away from direct sunlight and heat sources.
The system comes with a 60-month warranty, covering free repairs or replacements for any quality issues during this period.
The system is equipped with an RS232 communication port for monitoring and control, and it features LED indicators to display the state of charge and other operational statuses.
An all-in-one battery is a type of energy storage system that integrates a battery, battery management system (BMS), and often an inverter into a single, compact unit. This design simplifies installation and improves compatibility, making it an ideal solution for residential and small commercial energy storage applications. All-in-one batteries are typically used with renewable energy sources, such as solar panels, to store excess energy generated during peak production times for use during lower production periods. This integration of components into one unit not only saves space but also enhances the ease of use and installation, making it a popular choice for energy storage needs.
