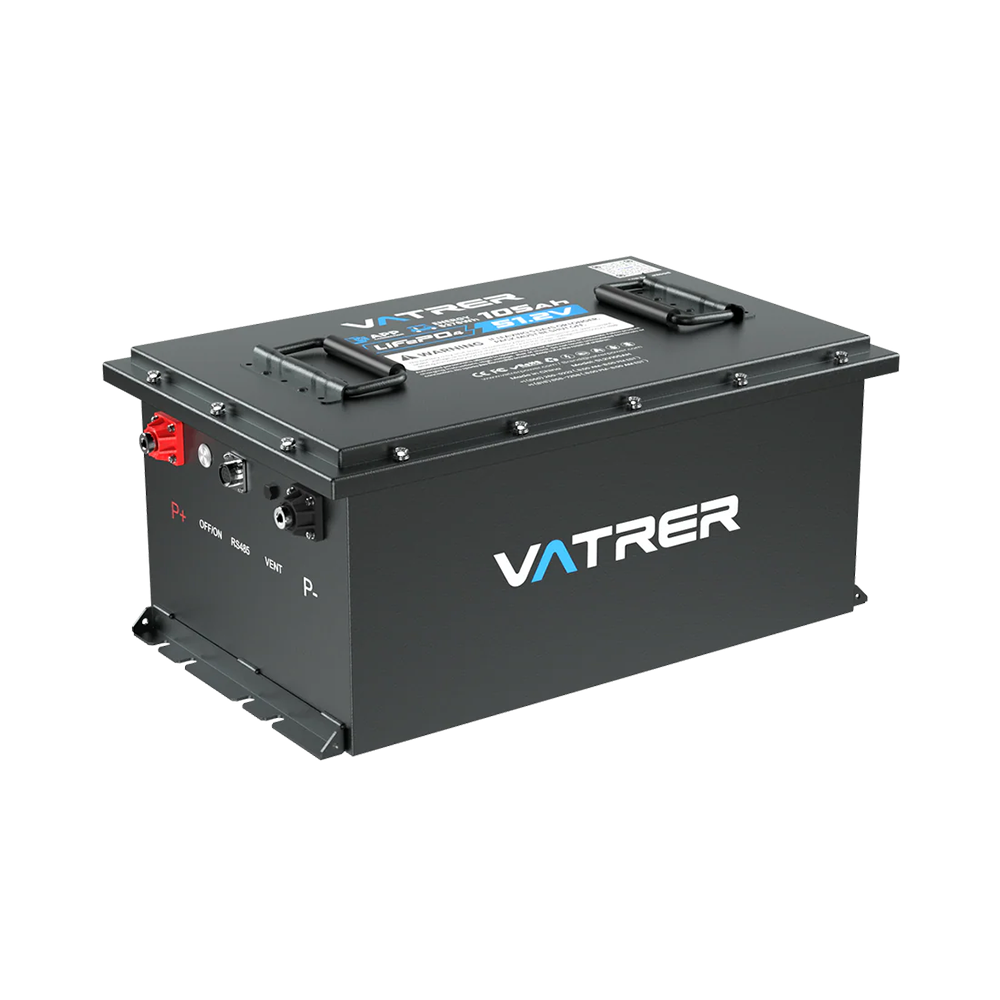

Vatrer 48V 105AH Golf Cart Batteries for EZ GO
【Top-Flight Performance 】48V 105Ah EZ GO golf cart LiFePO4 battery is manufactured by top-of-the-line EVE's Grade A Prismatic LiFePO4 Cells and has a compact 5.37kWh energy, which is equivalent to 4pcs 12V 100Ah LiFePO4 in 4S (even 8pcs 12V 100Ah AGM batteries in 8S). It has a great 10.24kW power with low self-discharge rate, low capacity loss, more stable performance, and continuous discharge current up to 200A (Peak 400A 35S, 600A 3S), which is 50% more powerful than the other same-size lithium battery.
【Get Rid of Lead-acid Now】Vatrer Power 51.2V 105Ah lithium golf cart battery unleashes an impressive surge of power, delivering exceptional acceleration and performance. Conquer even the toughest terrains with ease and take your golf game to new heights. Say goodbye to range anxiety! Allowing you to enjoy continuous golfing for up to 50 miles on a single charge.
【Built-in 200A BMS & Multiple Protection 】48V 105Ah LiFePO4 battery built-in 200A Battery Management System (BMS) provides over-charge/discharge, over-current, high/low temperatures, and short-circuiting protection. With good thermal and chemical stability. Maintenance free, no daily maintenance work and cost.
【Specially Designed & LCD Touchscreen】The lithium battery is specially designed and engineered to meet the rigorous demands of the 48V golf cart industry, with more powerful energy and excellent performance, compatible with the main brand golf cart controllers in the market. And comes with a 58.4V 22A LiFePO4 charger, which supports fast charging. Equipped with a 2.8-inch touch screen you can view and control the battery in real time on the LCD screen.
【Exceptional Longevity & Easy to Use】 Our lithium golf cart batteries provide 4000+ cycles compared to 300~500 cycles in the lead acid battery. Helping to minimize replacement costs and reduce the total cost of ownership. The weight of the lithium iron phosphate battery is 50% lighter than the lead-acid battery of the same capacity, making them easier to handle and install in golf carts where space is limited.
【Mobile APP Monitoring】Vatrer Power ezgo golf cart batteries have added an APP function. Customers can connect the battery through Mobile APP, and read or control the battery's various data (SOC) in real-time.
【Note】Please check your battery compartment size before purchasing, some EZGO models are not suitable.
Runtime Calculation
Safety Certifications

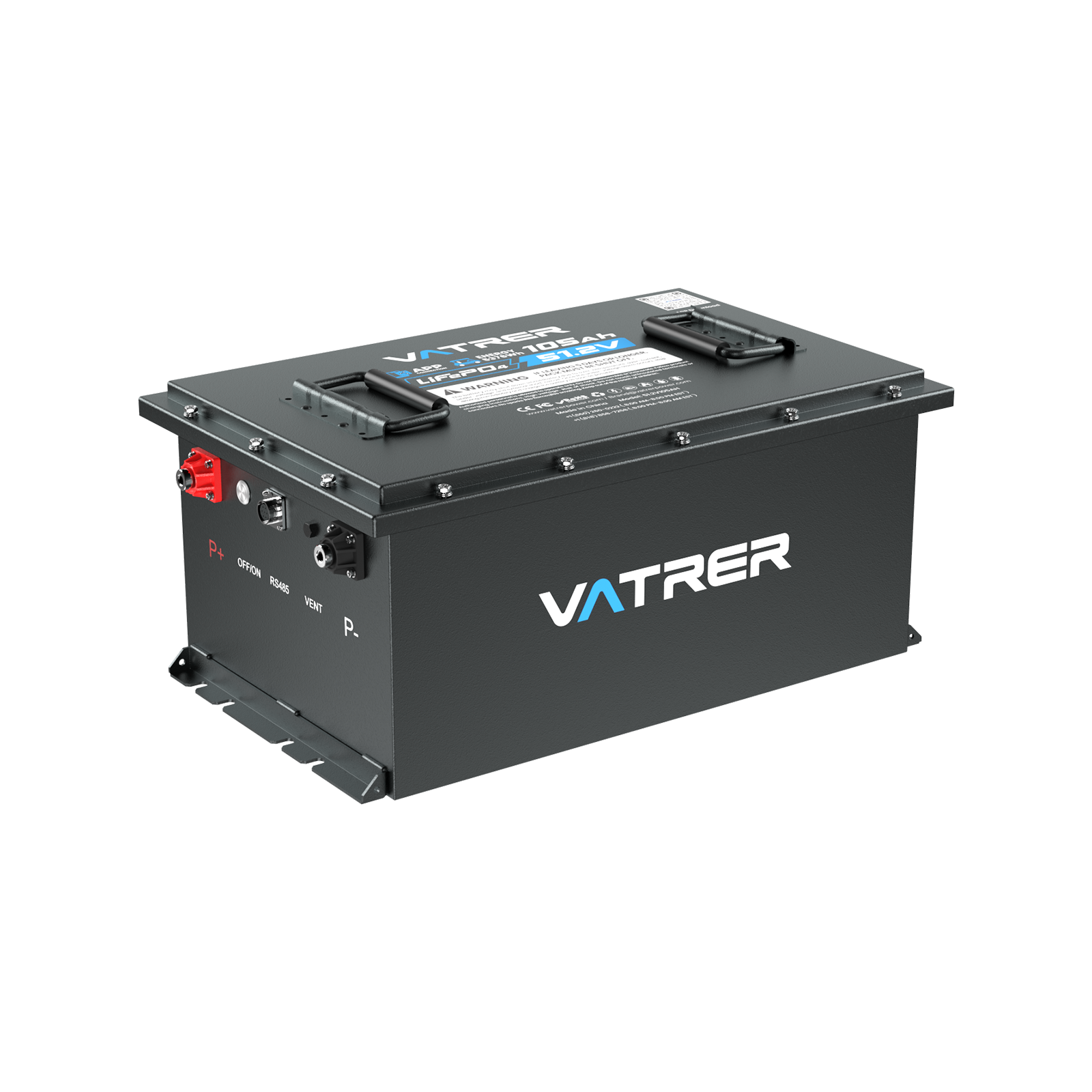

Vatrer 48V EZ GO Golf Cart Batteries
Equipped with the Vatrer 48-volt lithium battery, designed for EZ GO golf carts, this battery delivers exceptional performance with a continuous load power of 10.24 kW and a usable energy capacity of 5.376 kWh. Featuring grade A cells, it offers over 4000 deep cycle life cycles and can discharge at a maximum rate of 200A continuously. Upgrade your golf cart with this high-performance battery and enjoy extended playtime and reliable power on the greens. Whether you're on the golf course or cruising on the fairways, this battery will provide you with outstanding performance.
Equipped with EVE grade A cells and a built-in 200A BMS
This ezgo golf cart batteries equipped with grade A cells and a built-in 200A BMS (Battery Management System). It delivers a continuous discharge of 200A, with the ability to peak at 400A for 35 seconds and 600A for 3 seconds. Get ready to experience exceptional acceleration and impressive surge power, adding excitement to your golfing experience.
Safety is a top priority, and this battery comes with advanced safety features. It provides protection against overcharging, over current, short circuits, over discharge, and it has tolerance to low and high temperatures. You can rely on this battery to perform reliably in any condition, ensuring your safety and peace of mind on the golf course.
Real-Time Monitoring Made Easy
Take full control of your EZ GO golf cart's power with 48V golf cart batteries. These batteries offer real-time monitoring and an intuitive app to keep you informed about crucial battery data. Stay in the know by downloading the dedicated app, which provides three pages of monitoring modes for easy access to important information.
With the app, you can effortlessly track and monitor parameters such as voltage, current, temperature, and battery status. This comprehensive visibility allows you to stay on top of your golf cart's battery performance and make informed decisions while on the course.
Say Goodbye to Range Anxiety
Say goodbye to range anxiety with EZGO lithium battery conversion kit. With an impressive 105AH capacity, this battery eliminates any worries about running out of power on the course. You can now enjoy uninterrupted golfing adventures without the fear of your battery dying mid-game.
Experience the freedom to explore the course with confidence, as this high-capacity battery allows you to travel up to 50 miles on a single charge. Enjoy extended range and peace of mind, knowing that your battery will last throughout your golfing session.
Rapid Charging Made Convenient
Experience the convenience of rapid charging with Vatrer's 48V lithium golf cart battery, specially designed for EZ GO models. This battery package includes a 58.4V 22A dedicated golf cart charger that supports fast charging capabilities, allowing you to go from 0 to 100% charge in just 5 hours.
Say goodbye to long charging times and get back on the green quickly. With Vatrer, recharging your golf cart battery becomes a breeze, ensuring you spend more time enjoying the game and less time waiting for your battery to charge.
Enhanced Stability with LCD Screen Bracket
These batteries come with a specially designed bracket that securely holds the LCD screen, ensuring it remains in place while you're on the move. This innovative feature provides easy access to vital information, allowing you to stay informed and in control during your golf outings.
The battery's design includes specially designed openings and included screws, enabling a snug fit into position. This not only ensures enhanced stability but also provides peace of mind, knowing that your battery and LCD screen are securely held in place.
Cold Weather Protection for Optimal Performance
Ensure optimal performance even in cold weather conditions with Vatrer's 48V golf cart lithium battery replacement kit, specifically designed for EZ GO models. This battery kit is equipped with a low-temperature cut-off protection feature for both charging and discharging operations, ensuring the battery's safety and longevity.
The intelligent low-temperature cut-off protection feature sets specific temperature thresholds to safeguard the battery. When the temperature falls below 23°F, charging is automatically cut off, preventing potential damage to the battery. As the temperature rises above 32°F, the battery automatically recovers its charging capabilities.
In addition to charging protection, the battery kit also includes a low-temperature cut-off for discharging operations. Discharging is cut off at temperatures below -4°F to protect the battery from adverse effects.
Portable, Efficient, and Smart
Vatrer's 48-volt golf cart battery is designed with a focus on convenience and efficiency, making it an excellent choice for EZ GO models. This battery is equipped with sturdy handles, making it effortlessly portable and allowing for easy transportation and installation.
The battery features smart LiFePO4 battery technology with a one-touch operation, ensuring a simplified user experience. With just a touch, you can easily operate the battery, enhancing usability and convenience.
In terms of design, this battery incorporates innovative ventilation features. These ventilation features promote the release of internal gases, ensuring optimal performance and extending the battery's longevity.
Cost-Effective Energy Solutions for Versatile Applications
This EZ GO TXT battery conversion kit not only powers golf carts but also street-legal carts and lawn mowers, offering a reliable and efficient source of energy for various applications.
Experience long-lasting performance, advanced features, and exceptional durability with the Vatrer battery. It is built to withstand the demands of different uses, ensuring reliable power and optimal performance in every situation.
48 Volt Golf Cart Battery Wiring Diagram

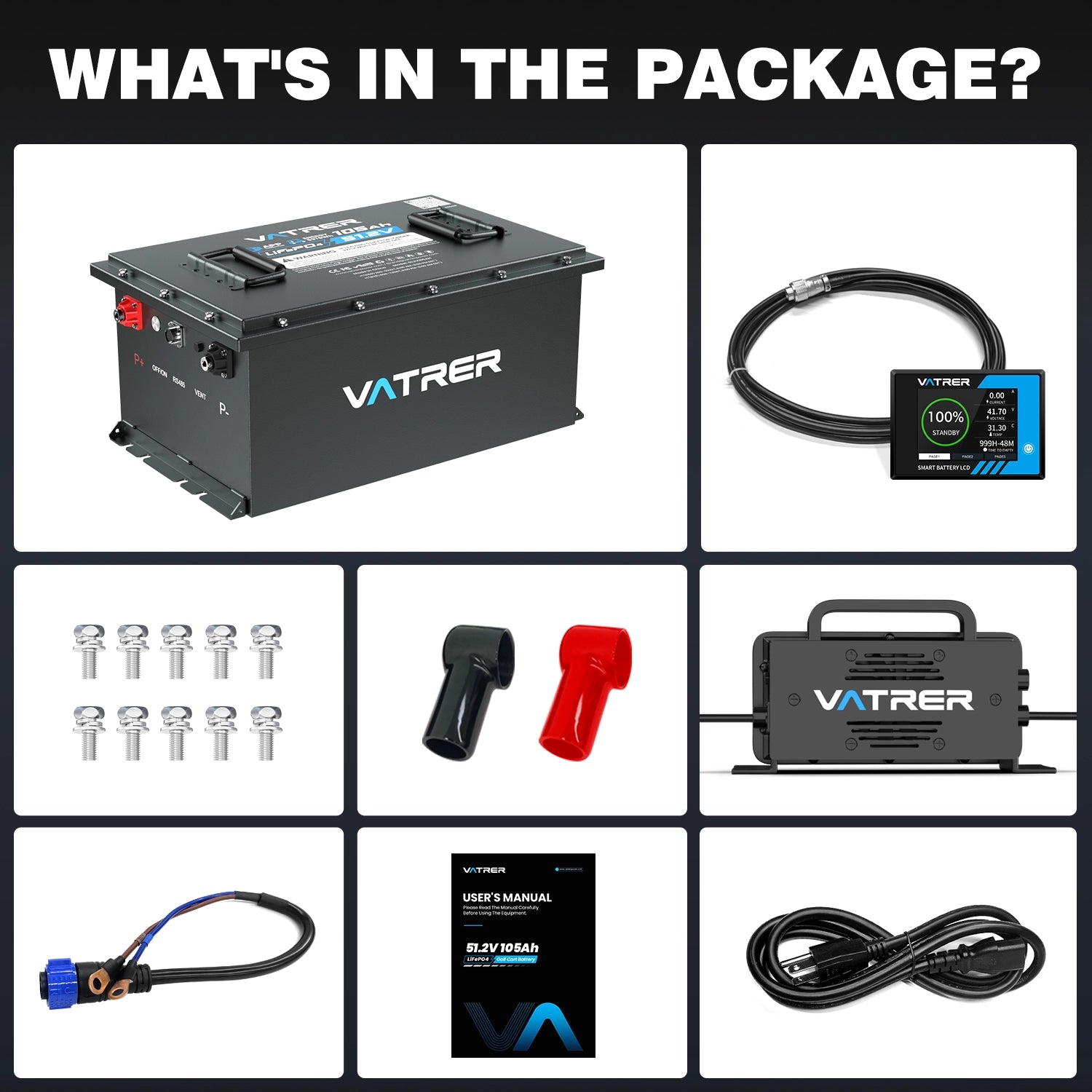

What's in the 48 volt EZGO lithium battery conversion kit?
 |
Golf Cart Battery *1 |  |
LiFePO4 Charger *1 |
 |
2.8 inch Touchable LCD Screen and Cable |  |
User manual |
 |

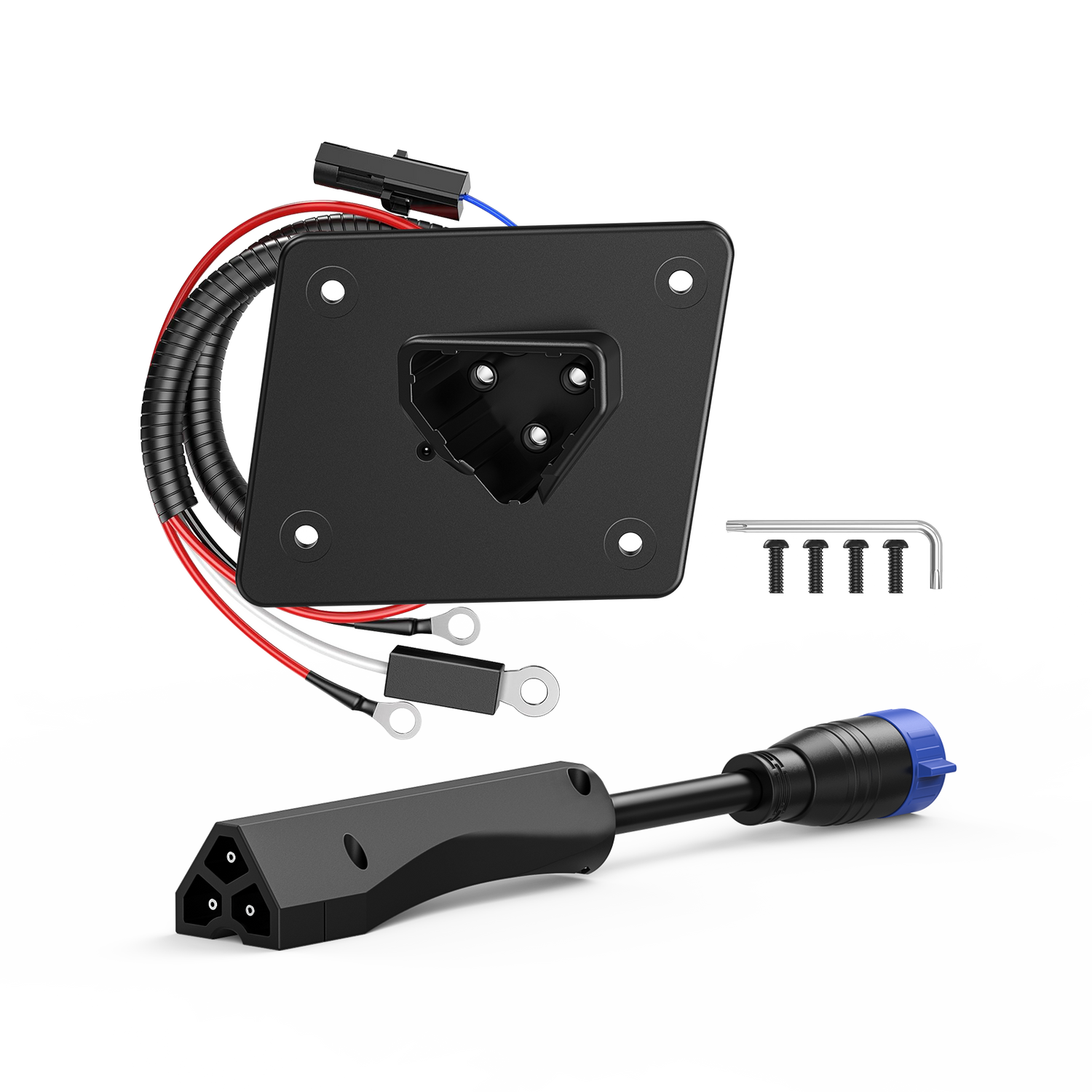

Adapter Connector Cable *1 |  |
Adapter Connector Cable *1 |
 |
Protective Covers *2 |  |
M8 Terminal bolts |
|
Golf Cart Battery *1 |
LiFePO4 Charger *1 |
|
2.8 inch Touchable LCD Screen and Cable |
User manual |
|
Adapter Connector Cable *1 |
Adapter Connector Cable *1 |
|
Protective Covers *2 |
M8 Terminal bolts |
Advantage
- Built with LiFePO4 battery cells that are engineered to deliver superior performance & longevity.
- Built-in 200A Battery Management System (BMS) provides over-charge/discharge, over-current, high/low temperatures, and short-circuiting protection.
- Comes with a 2.8-inch touch screen that you can view battery information in real-time on the LCD screen. And comes with a 58.44V 22A LiFePO4 charger, which supports fast charging.
- Providing 4000+ cycles compared to 300~500 cycles in the lead acid battery. Easier to carry and install.
- Connecting your battery to your smartphone for app monitoring, easy to know the lithium battery.
- Maintenance Free; Non-spill.
- Replacing a 48-volt golf cart battery is easier
| Specification | Value |
|---|---|
| Nominal Voltage | 51.2V |
| Charge Voltage | 58.4V |
| Weight | 46.4KG / 102.3LBs |
| Energy | 5376Wh |
| Max Charging Current | 100A |
| Max Continuous Discharging Current | 200A (Peak 400A 35S) |
| Continuous Charge Current | 55A |
| Max Load/Inverter Power | 10240W |
| Discharge Cut-off Voltage | 40V |
| Operating Temperature Range |
Charge: 0°C to 45°C (32°F to 113°F) Discharge: -20°C to 60°C (-4°F to 131°F) Storage: -10°C to 50°C (-14°F to 122°F) Low temp cut off protection (Charge): 0°C ± 4°C (32°F ± 7.2°F) |
| Waterproof Class | IP67 |
| Dimension | 500×318×230 mm / 19.69×12.52×9.06 inch |
| Cycle Life | ≥4000 Cycles |
| Safety Features | BMS, Over Charge/Discharge, Low/High Temp Cut-off, Over Current, Short Circuit |
| Accessories | 1x51.2V 105Ah Golf Cart Battery, 1x 58.4V 22A LiFePO4 Charger, 1x2.8in LCD Screen, Communication Cables |
The connections on our batteries are crimped and have a very good internal construction. They are nuts attached to the terminals for both the positive (+) and negative (-) connections. The charger also connects to the same lug with the same positive and negative terminals.
As long as your cart system is operating at 48V and currently using a lead-acid battery, our LiFePO4 lithium golf cart batteries can be a direct replacement. You would not need to change your electric motor or speed controller, making it a plug-and-play solution.
If your cart's speed controller is rated at 300A, the cart should retain its current speed when using our battery. The speed controller is responsible for managing the power delivery to the motor, and our battery is capable of providing the necessary current for the controller to function properly.
We offer a 10-year warranty on our lithium golf cart batteries, provided they are not damaged by human factors. If you encounter any issues with the battery during the warranty period, we will require you to provide the evidence we ask for. Once verified, we will provide you with a pre-paid return label to send the battery back. Depending on your requirements, we will either offer a full refund or send you a new replacement battery.
Yes, the touch screen comes with a mounting bracket that can be screwed onto the top of the golf cart's dashboard. This allows you to securely mount the touch screen display in a convenient location.
To set up the Bluetooth functionality and monitor the charging status of your battery, please follow these steps:
- Search for and install the "xiaoxiangelectric" app on your smartphone.
- Open the app and allow it to access Bluetooth on your device.
- You can choose to register an account or use the guest mode to proceed to the app's interface.
- For further assistance with the Bluetooth setup and monitoring, please contact us directly.
Vatrer Golf Cart Lithium Batteries for More Benefits

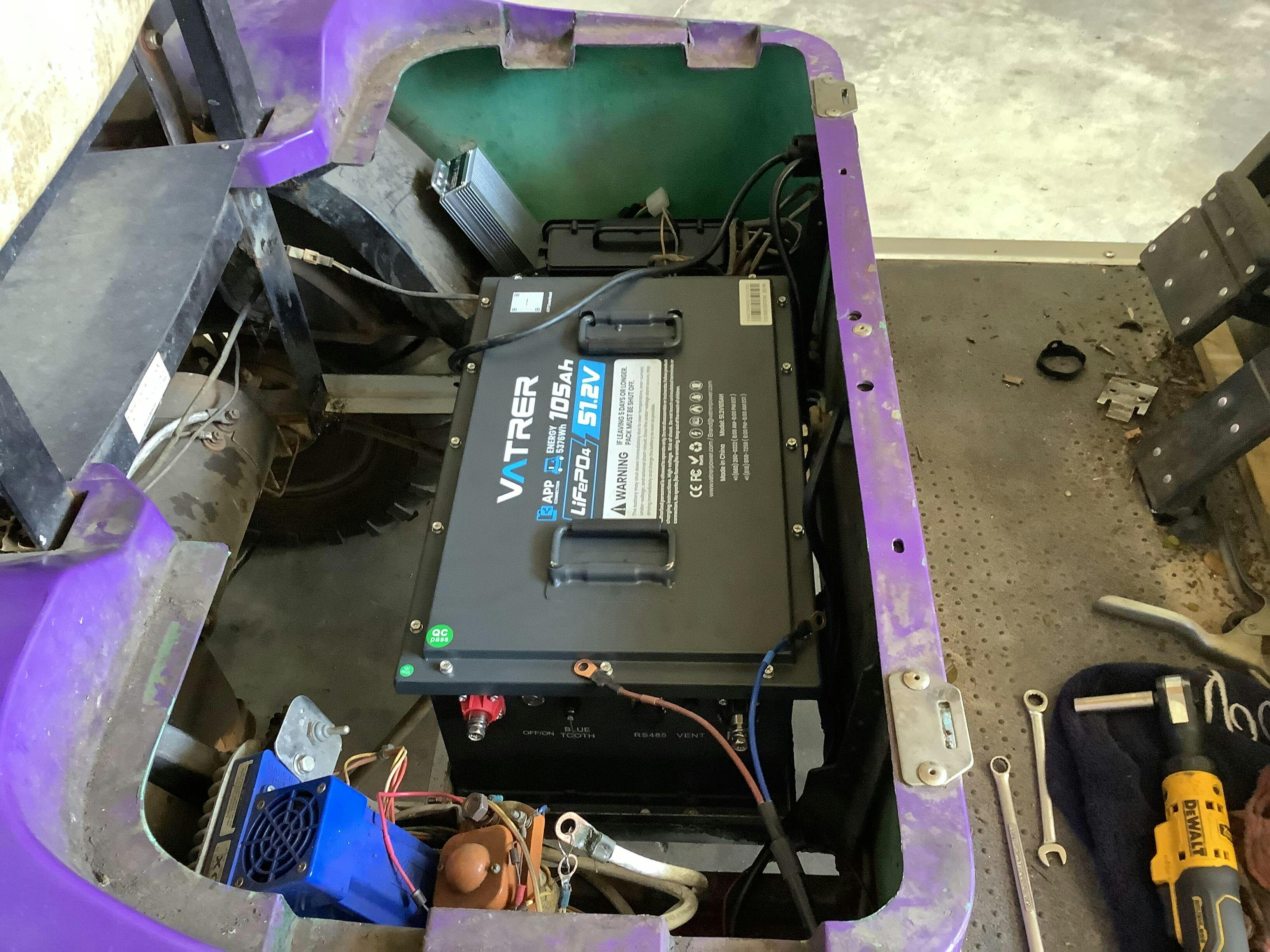

Authentic User Installation Photos
