Vatrer 12V 100Ah(Group 24) Low Temp Cutoff LiFePO4 Battery with Bluetooth
Vatrer deep cycle LiFePO4 battery has built-in BMS to protect it from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate.With high temp cutting off prevents charging over 167 °F (75°C) and Low temp cutoff protection . No matter what state the battery is, it can be used as soon as it is charged.
lithium battery manufactured by Automotive Grade LiFePO4 Cells with higher energy density, no memory effect, more stable performance and greater power. Excellent cycle performance, fast charging and discharging, charging efficiency up to 100%, and high output power. Supporting IP65 waterproof and battery expansion for up to 4 series & 4 parallel and suitable for electric energy storage.
Our LiFePO4 lithium iron batteries battery provides 5000+ cycles compared to 300~500 cycles in lead acid battery.
Highest-level safety based on UL Testing Certificate for the cell inside the battery.
With no acid in the lithium ion battery, you're able to safely mount in any position. This makes li-ion batteries perfect for marine, RV, campers, golf cart, travel trailer, off-road and off-grid applications!
Runtime Calculation
Safety Certifications
Vatrer 12V 100Ah Group 24 Battery: Powerful and Long-lasting Performance
The Vatrer 12V 100Ah Group 24 Lithium Battery is a high-performance battery that provides long-lasting power and durability for a wide range of applications. With its advanced LiFePO4 chemistry, built-in BMS, and low self-discharge rate, this battery is ideal for RVs, solar systems, marine applications, and more.
Comprehensive Protection and High Performance
Experience unmatched reliability and efficiency with the Vatrer Group 24 Deep Cycle Battery, featuring a built-in 100A BMS for full protection against overcharge, discharge, and temperature extremes. This battery offers a robust 100A continuous and 300A peak discharge, ensuring optimal performance under demanding conditions. Ideal for high-demand applications, it delivers both safety and durability.
Low Temperature Cut-Off Protection for Vatrer Group 24 Battery
Ensure optimal performance and longevity of your Vatrer Group 24 Battery with advanced low temperature cut-off protection. Charging is enabled above 32°F (0°C) and automatically disabled below 32°F (0°C) to prevent potential damage. Charging resumes above 41°F (5°C), safeguarding your battery in cold conditions.
High Capacity and Power Configuration
The Vatrer Group 24 Battery supports versatile configurations, including 4P4S up to a 20.48kW load power. With a maximum of 4 batteries in series and up to 10 in parallel, it delivers a substantial 20.48kWh of energy and 20.48kW of power, making it ideal for high-demand applications.
Versatile Charging Solutions
Quick Charging Times for Vatrer Group 24 Battery

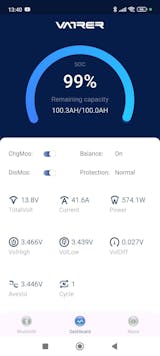

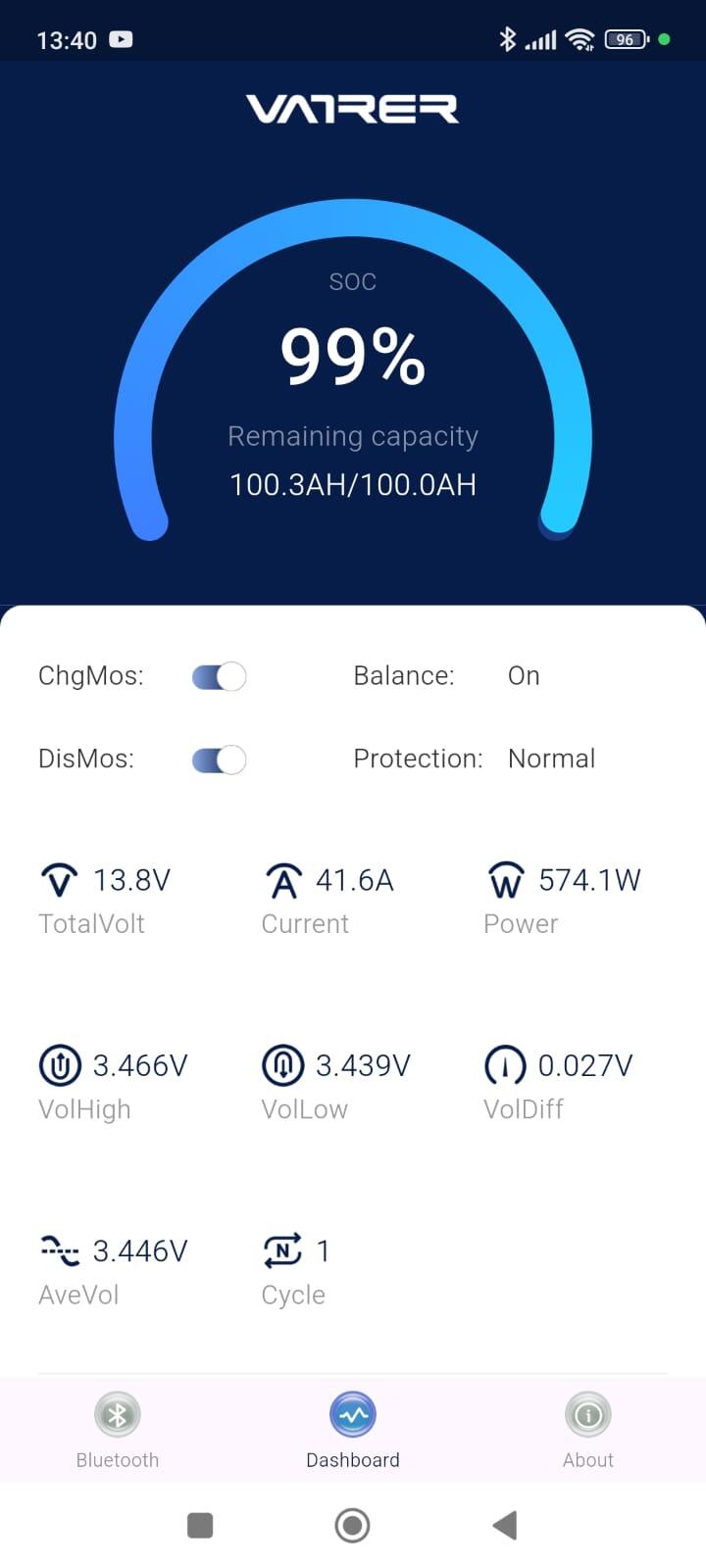

Real-Time Monitoring and Easy Control
Versatile Power Solutions for All Applications

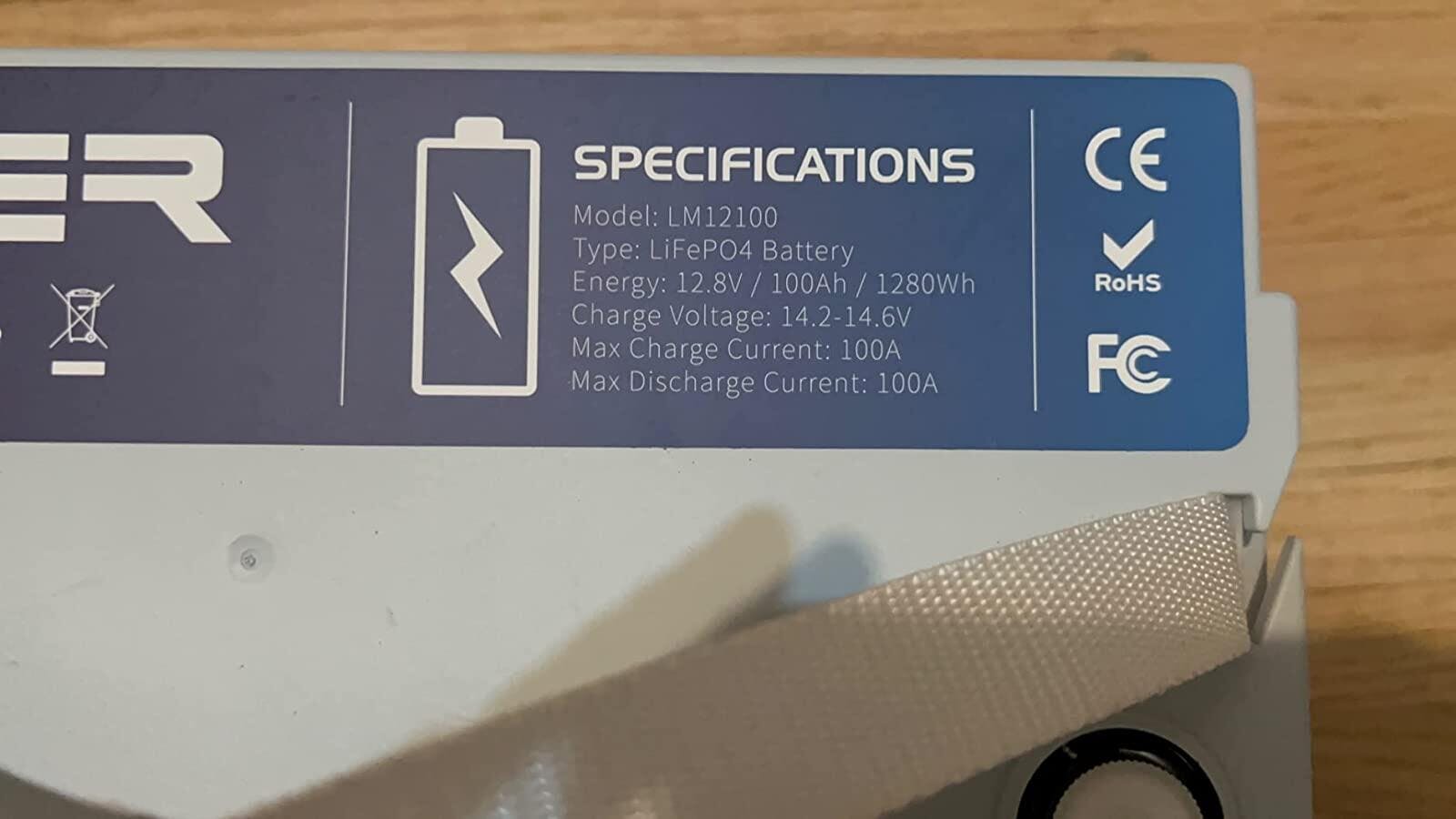

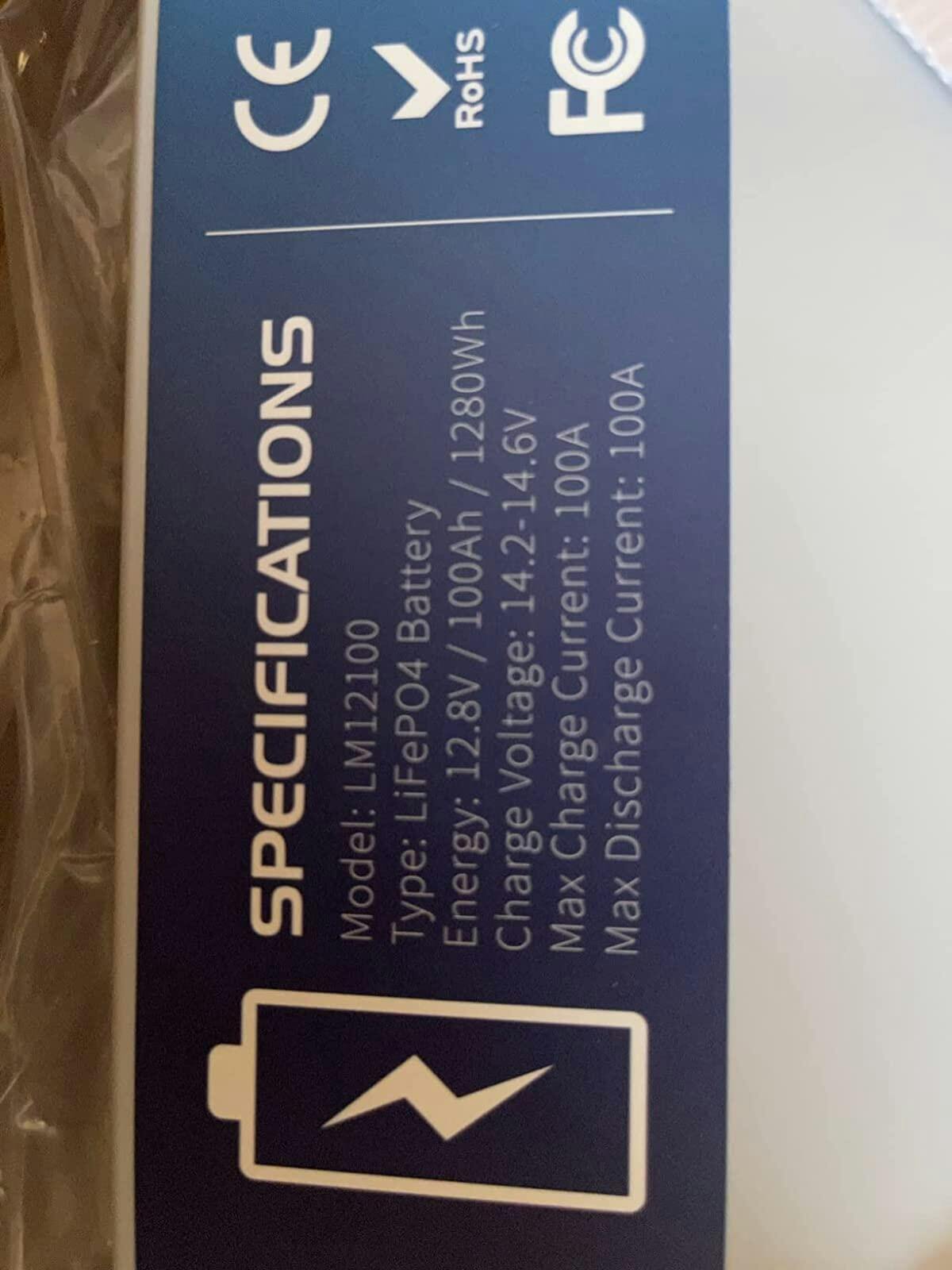

| Specification | Value |
|---|---|
| Battery Model | LiFePO4 Battery 12.8V 100Ah |
| Nominal Voltage | 12.8V |
| Capacity | 100Ah |
| Charge Voltage | 14.2V-14.6V |
| Weight | 10.5KG/23.14LB |
| Energy | 1280Wh |
| Max Continuous Charging Current | 100A |
| Max Continuous Discharging Current | 100A |
| Recommended Charge Current | 20A (0.2C) |
| Max Load/Inverter Power | 1280W |
| Operating Temperature Range | Charge: 0°C to 50°C (32°F to 122°F) Discharge: -20°C to 60°C (-4°F to 140°F) Storage: -10°C to 50°C (-14°F to 122°F) Low temp cut off protection (Charge): 0°C±4°C (32°F±7.2°F) Low temp cut off protection (Discharge): -20°C±4°C (-4°F±7.2°F) |
| Waterproof Class | IP65 |
| Terminal Type | M8 |
| Dimensions | 260x167x209 mm / 10.24*6.61*8.23 inch |
| Cycle Life | >=5000 Cycles |
| Series/Parallel Connections | 4 in Series, and no more than 10PCS in Parallel |
Yes, of course! Our BMS has a low temperature protection cut-off function to safeguard your battery against low temperature damage and extend its lifespan.
Low temp cut off protection (Charge): 0℃ ± 4℃ (32°F ± 39.2°F)
Low temp cut off protection (Discharge): -20℃ ± 4℃ (-4°F ± 39.2°F)
We recommend using a lithium iron phosphate 4-string (14.6V) charger to efficiently charge the battery. However, there are alternative methods:
Scheme 2: You can charge the battery using photovoltaic solar panels through an MPPT charger.
Scheme 3: You can charge the battery pack using an inverter with a built-in AC to DC charging function.
A BMS, or Battery Management System, is a vital component of our LiFePO4 battery. It performs several functions:
a. It safeguards the battery and the user by shutting off the battery in cases of low or high voltage, low or high temperatures, and system shorts.
b. Our BMS maintains cell balance within the battery pack. During each charge cycle, it reduces the charging rate in cells that have reached their capacity, allowing other cells to catch up. This ensures overall balance, quality, and efficiency of the battery pack.
Our LiFePO4 batteries provide over 2000 cycles at 100% depth of discharge (DoD), and they can even reach over 5000 cycles at 80% DoD. Compared to standard lead-acid batteries, LiFePO4 batteries have a service life that is 8 to 10 times longer.
Yes, our LiFePO4 batteries are designed with safety in mind:
- Manufactured with Automotive Grade LiFePO4 Cells for higher energy density, stability, and power.
- The stable chemical structure of LiFePO4 ensures they do not burn or explode, even under high temperatures, short circuits, impacts, or drops.
- Our batteries have undergone UL Testing and are certified for their safety.
- They are environmentally friendly, containing no heavy metals or rare metals.
- The built-in Battery Management System (BMS) provides protection against overcharge, deep discharge, overload, overheating, short circuits, and low self-discharge rate.
We apologize, but our LiFePO4 batteries are not suitable for jump-starting vehicles. However, they can serve as reliable power supplies for automobiles. You can recharge your car using a Jackery power supply cord, which is available for separate purchase.
A Group 24 battery refers to a specific size and type of automotive battery. It is a standardized battery size commonly used in various applications, including marine, recreational vehicles (RVs), and automotive vehicles. Group 24 batteries typically have dimensions of approximately 10.25 inches in length, 6.75 inches in width, and 9.25 inches in height. They are known for their medium to high capacity and are often chosen for their balance between power output and size. Group 24 batteries are labeled with a code that helps identify their size and compatibility with specific vehicles or equipment.
