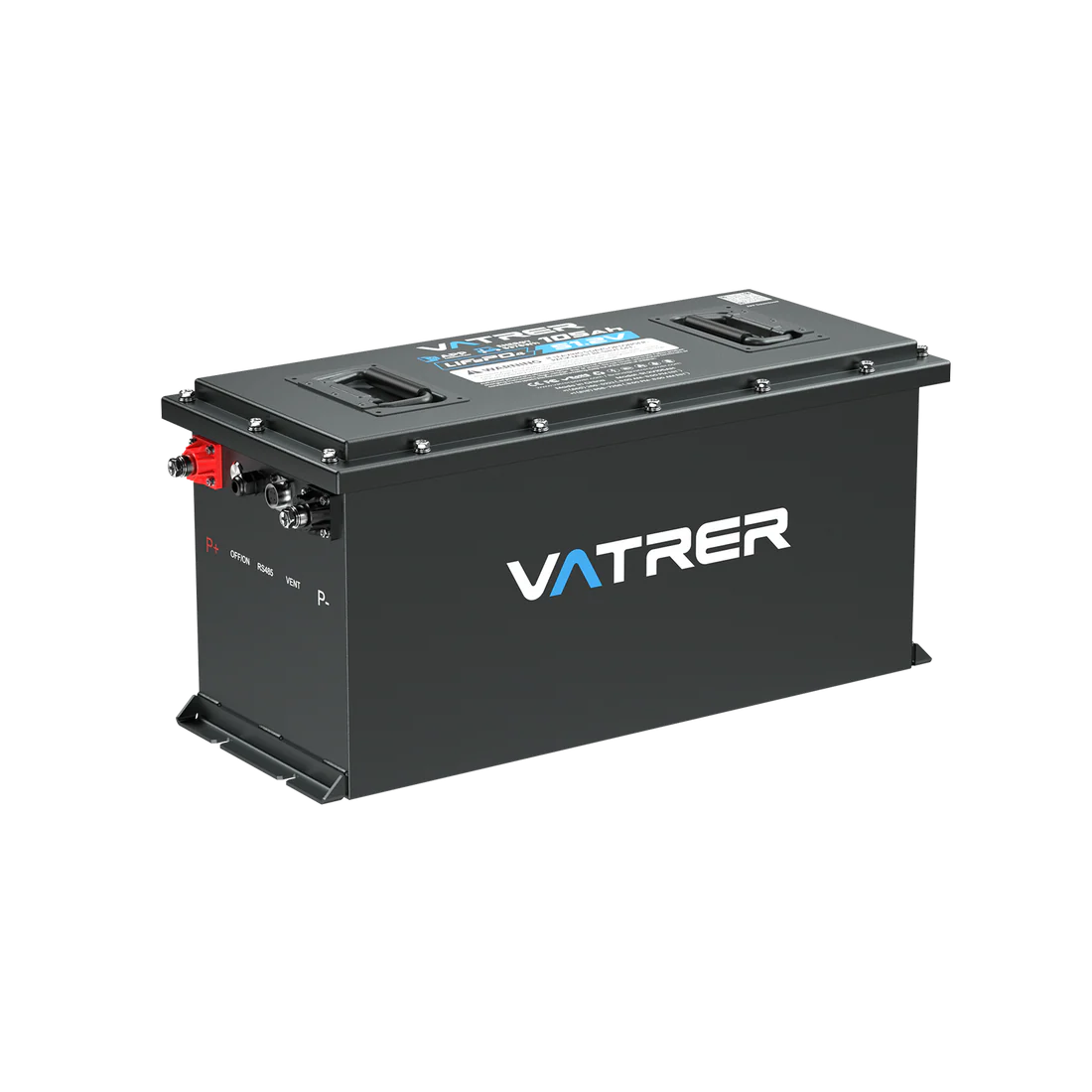

Vatrer 48V 105Ah (Narrow Version) Lithium Golf Cart Battery, 200A BMS, 4000+ Cycles, Max 10.24kW Power
【Top-Flight Performance】Why settle for less? Our 48V 105Ah golf cart LiFePO4 battery uses top-notch EVE's Grade A Prismatic LiFePO4 Cells. It's like having the energy of four linebackers in one compact package, offering a whopping 5.37kWh energy, and it can unleash a beastly 10.24kW power. Ready to leave other carts in the dust with continuous discharge up to 200A? Buckle up!
【Get Rid of Lead-acid Now】Wave goodbye to old-school lead-acid batteries! Vatrer Power 48 Volt lithium golf cart battery not only brings power to your pedal but also ensures you enjoy up to 50 miles on a single charge. Who said electric vehicles can't go the distance?
【Built-in 200A BMS & Multiple Protection】Security first! Our built-in 200A BMS is like a personal bodyguard for your battery, protecting it from over-charges, under-charges, and the boogeyman under your bed. Sleep easy knowing your golf cart is safe and sound.
【Specially Designed & LCD Touchscreen】Designed for the tough life of a 48V golf cart, our battery packs more punch than a high school reunion. Plus, it comes with a snazzy 2.8-inch touchscreen that lets you check on your battery as easily as checking your phone.
【Exceptional Longevity & Easy to Use】Our battery lasts longer than your favorite TV series with over 4000 cycles. It's also 50% lighter than those old lead-acid types – because who needs a workout just installing a battery?
【Mobile APP Monitoring】And for the tech-savvy, our battery comes with a mobile app. Now you can check your battery's stats from your phone, probably from the comfort of your golf cart seat. Talk about convenience!
Exclusion of Hawaii (HI), Alaska (AK), and Puerto Rico (PR)
Runtime Calculation
Safety Certifications

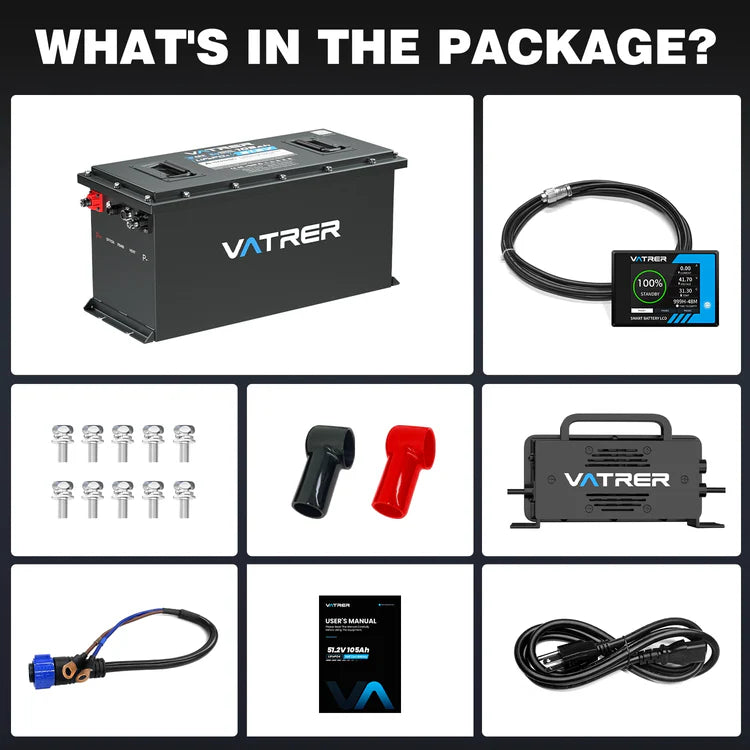

What's in the 48V Golf Cart Lithium Battery Conversion Kit?
Golf Cart Battery *1 | LiFePO4 Charger *1 | ||
2.8 inch Touchable LCD Screen and Cable | User manual | ||
Adapter Connector Cable *1 | Adapter Connector Cable *1 | ||
Protective Covers *2 | M8 Terminal bolts |
Golf Cart Battery *1 |
LiFePO4 Charger *1 |
2.8 inch Touchable LCD Screen and Cable |
User manual |
Adapter Connector Cable *1 |
Adapter Connector Cable *1 |
Protective Covers *2 |
M8 Terminal bolts |
Vatrer Golf Cart Battery Connection Diagram
Advantage
- Built with LiFePO4 battery cells that are engineered to deliver superior performance & longevity.
- Built-in 200A Battery Management System (BMS) provides over-charge/discharge, over-current, high/low temperatures, and short-circuiting protection.
- Comes with a 2.8-inch touch screen that you can view battery information in real-time on the LCD screen. And comes with a 58.44V 20A LiFePO4 charger, which supports fast charging.
- Providing 4000+ cycles compared to 300~500 cycles in the lead acid battery. Easier to carry and install.
- Connecting your battery to your smartphone for app monitoring, easy to know the lithium battery.
- Maintenance Free; Non-spill.
Specification | Value |
---|---|
Nominal Voltage | 51.2V |
Charge Voltage | 58.4V |
Weight | 44Kg / 97LBs |
Energy | 5376Wh |
Max Charging Current | 100A |

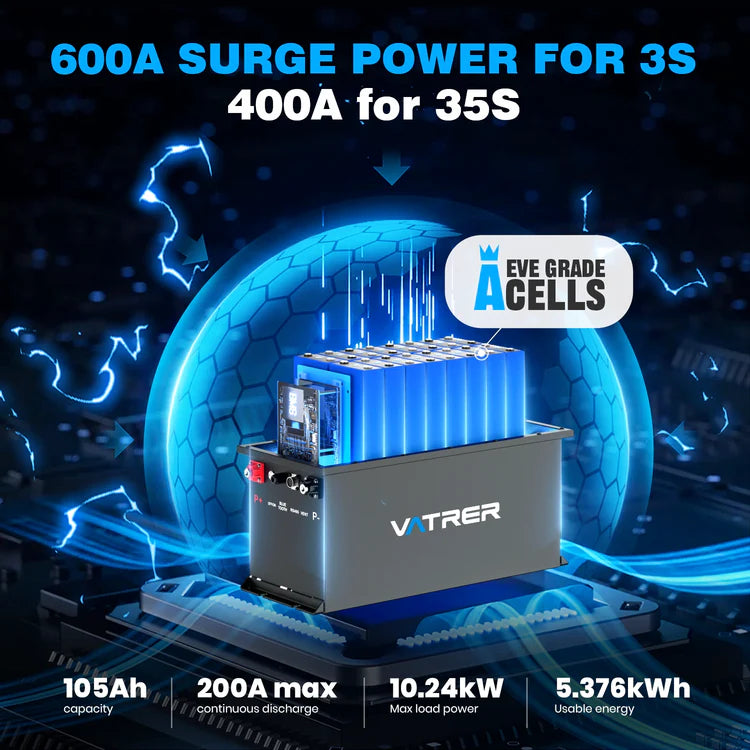

Max Continuous Discharging Current | 200A (Peak 400A 35S) |
Continuous Charge Current | 55A |
Max Load/Inverter Power | 10240W |
Discharge Cut-off Voltage | 40V |
Operating Temperature Range |
Charge: 0°C to 45°C (32°F to 113°F) Discharge: -20°C to 60°C (-4°F to 131°F) Storage: -10°C to 50°C (14°F to 122°F) Low temp cut off protection (Charge): 0°C ± 4°C (32°F ± 7.2°F) |
Waterproof Class | IP67 |

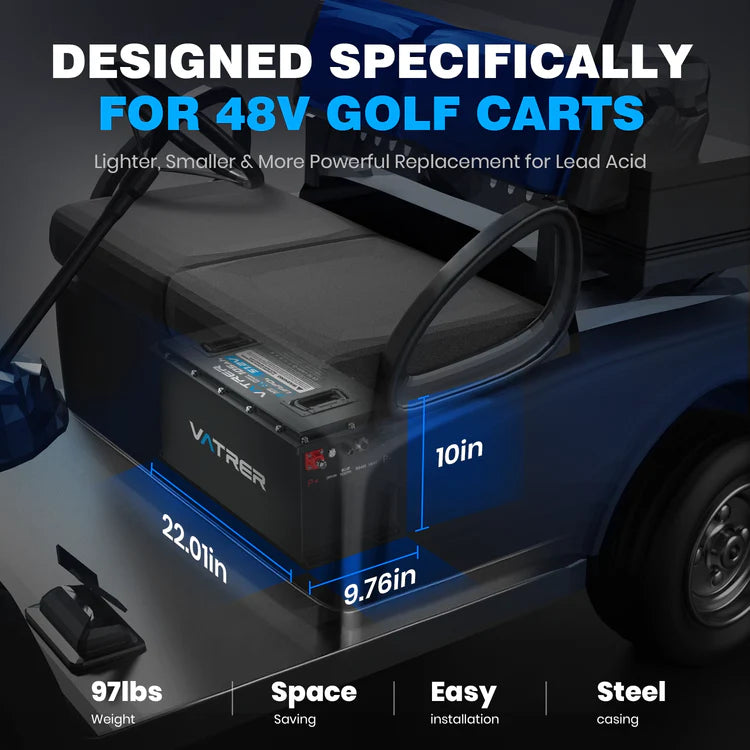

Dimension | 559 x 248 x 278 mm/22.01 x 9.76 x 10.94 inch |
Cycle Life | ≥4000 Cycles |
Safety Features | BMS, Over Charge/Discharge, Low/High Temp Cut-off, Over Current, Short Circuit |
Accessories | 1x51.2V 105Ah Golf Cart Battery, 1x 58.4V 22A LiFePO4 Charger, 1x2.8in LCD Screen, Communication Cables |
The connections on our batteries are crimped and have a very good internal construction. They are nuts attached to the terminals for both the positive (+) and negative (-) connections. The charger also connects to the same lug with the same positive and negative terminals.

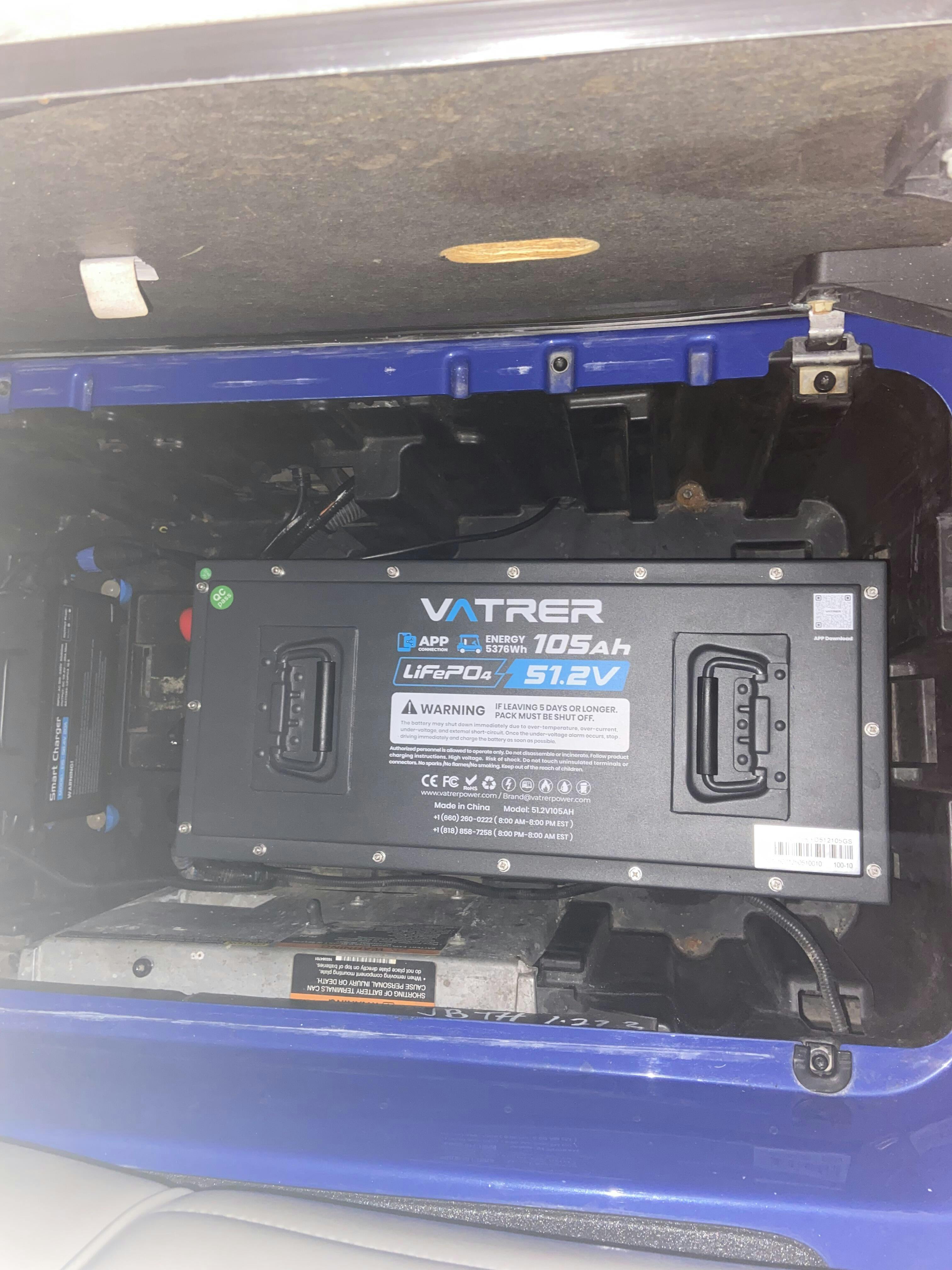

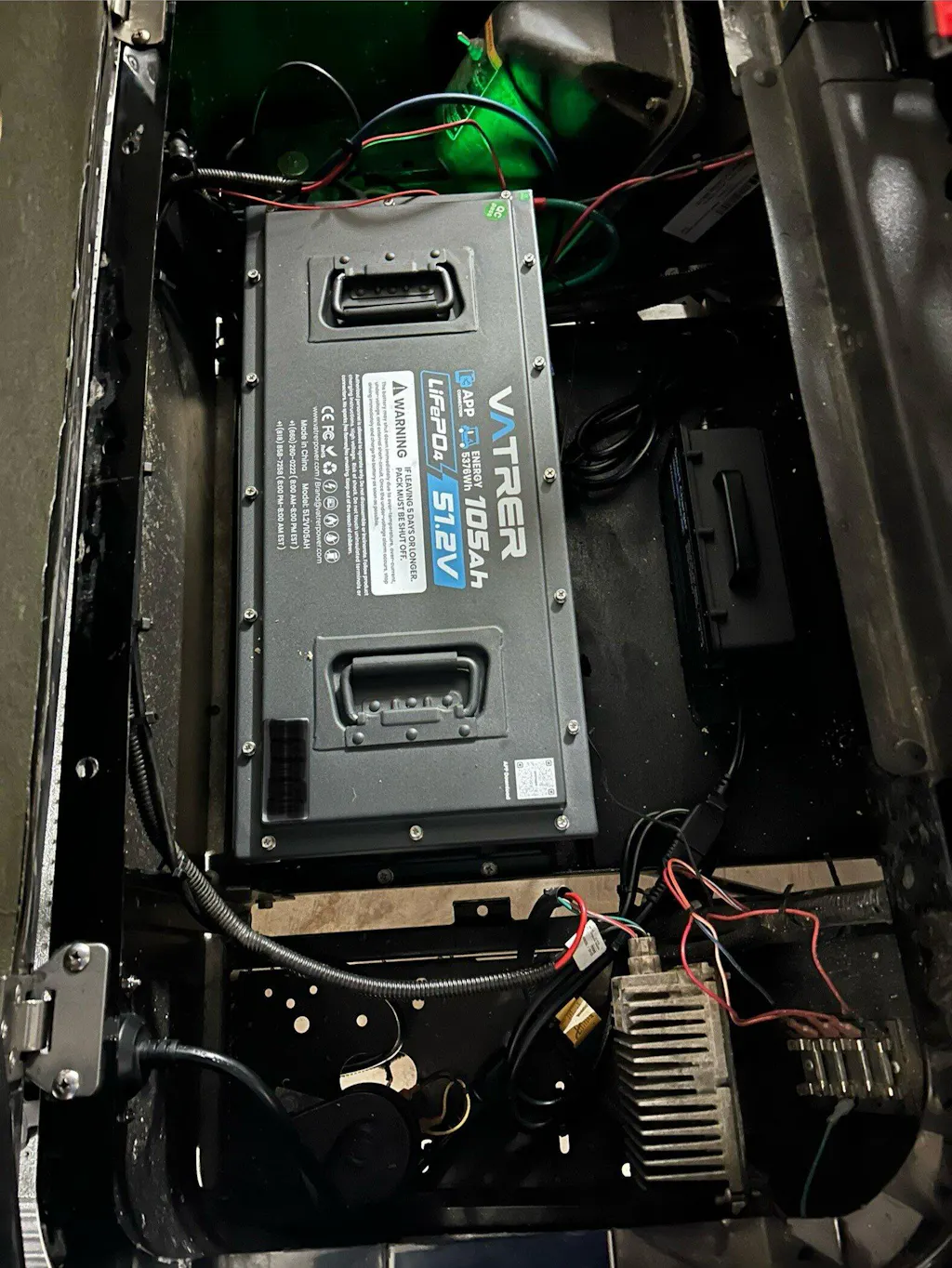

As long as your cart system is operating at 48V and currently using a lead-acid battery, our LiFePO4 lithium golf cart batteries can be a direct replacement. You would not need to change your electric motor or speed controller, making it a plug-and-play solution.
If your cart's speed controller is rated at 300A, the cart should retain its current speed when using our battery. The speed controller is responsible for managing the power delivery to the motor, and our battery is capable of providing the necessary current for the controller to function properly.
We offer a 5-year warranty on our lithium golf cart batteries, provided they are not damaged by human factors. If you encounter any issues with the battery during the warranty period, we will require you to provide the evidence we ask for. Once verified, we will provide you with a pre-paid return label to send the battery back. Depending on your requirements, we will either offer a full refund or send you a new replacement battery.
Yes, the touch screen comes with a mounting bracket that can be screwed onto the top of the golf cart's dashboard. This allows you to securely mount the touch screen display in a convenient location.
To set up the Bluetooth functionality and monitor the charging status of your battery, please follow these steps:
- Search for and install the "xiaoxiangelectric" app on your smartphone.
- Open the app and allow it to access Bluetooth on your device.
- You can choose to register an account or use the guest mode to proceed to the app's interface.
- For further assistance with the Bluetooth setup and monitoring, please contact us directly.
