Vatrer 48V 105AH LiFePO4 Self-heating Golf Cart Battery, 200A BMS, 10.24kW Lithium Battery
● Grade-A LiFePO4 Prismatic Cells
● 3X Heating Efficiency: Integrated 200W Heated Lithium Pad
● 105Ah, 5,376Wh Capacity (RC @20A: 330 minutes)
● 4,000+ cycles @100% DOD
● 200A Max Continuous Discharge (400A 35S/600A 3s Peak Discharge)
● 48V Systems Only, Not in Series.
● IP67 Rated Waterproof and Vibration-proof
● Zero Maintenance, Environment Friendly
● Perfect Replacement for 8*6V/6*8V Lead-Acid Batteries
● 2.8 inches LCD Touchable Display Screen
● 58.4V 20A Battery Charger, 0 to 100% Charge in 5.5 hours
● Built-in 200A Smart BMS, Multiple protections, including low-temp cut-off protection - automatically cuts off charging and discharging under freezing weather to protect the battery and extend its life
● Smart Bluetooth 5.0 Connection - Smart control, monitor battery status, and battery system with the Vatrer App.
● Widely Suitable for 48V Low-Speed Street-Legal Carts: Golf carts, LSV, ATV, NEV, electric shuttle buses.
● Easy Installation and Complete Kit: 58.4V 20A LiFePO4 Charger, 2.8in LCD Screen, Communication Cables, screws, and detailed manual
Earn [points_amount] when you buy this item.
Runtime Calculation
Safety Certifications
Boost Your Golf Cart with Vatrer's Heated Battery!
Ready to ramp up your golf cart rides? Meet the Vatrer 48V 105AH LiFePO4 Heated Lithium Golf Cart Battery – your new secret weapon on the green! This isn't just a battery; it's a mega power station on wheels. With a hefty 10.24kW of continuous power and 5.376kWh of energy, you can play rounds all day long. Plus, it withstands over 4000 deep cycles and even keeps itself warm on cold days. Say hello to peak performance that lasts!
Grade A Prismatic LiFePO4 Cells with Built-in 200A BMS
Dive into the world of unstoppable energy with our Grade A Prismatic LiFePO4 Cells, complete with a savvy 200A BMS for the ultimate safeguarding. This isn't just a battery; it’s your golf cart’s new best friend, offering massive juice with a continuous 200A output, and bursts of 400A and 600A for those really demanding moments. Whether it’s scorching heat or freezing cold, this battery stays cool under pressure, thanks to its comprehensive protection against overcharging, deep discharging, overheating, and circuit mishaps. Ready to power up your cart with confidence and zest? Buckle up, because it's going to be an electrifying ride!
Go the Distance: 50 Miles of Freedom in One Charge!
Wave goodbye to range worries and hello to boundless adventures with our 48V lithium golf cart battery! Zip through up to 50 miles on a single charge and keep the fun going longer than ever. Whether it’s a day on the greens or a scenic trail, our battery ensures you’re powered for the long haul. Ready, set, explore!
Stay Powered in Any Weather: Advanced Temperature Protection!
Beat the weather extremes with our battery's innovative temperature cut-off protection. It smartly pauses at low temperatures from -20℃ to 4℃ (-4°F to 39.2°F) and handles the heat with a high cut-off during charging at 65℃ and discharging at 75℃. This ensures optimal performance and longevity, giving you reliable power in any environmental conditions. Ready to ride out the temperature rollercoaster?
Triple Power Heating: Fast Warm-Up for Chilly Days!
Our battery packs a triple punch with its built-in heating system, speeding up the warm-up process threefold! When temperatures drop below 32°F (0°C), the self-heating kicks in to prepare the battery for efficient charging. Once it warms up to 41°F (5°C), the heating automatically stops, shifting back to normal charging mode. Power up quickly and seamlessly, even on the frostiest days!
All-Season Power Supply: Energize Through Any Weather!
Keep your golf cart rolling year-round, no matter the weather! Our battery thrives in the extremes, discharging reliably at chilly lows of -4°F (-20°C) and sizzling highs of 167°F (75°C). Never let a freeze or a heatwave put a damper on your drive again. Gear up for any season with unstoppable energy!
Supercharge Your Game: Fast & Dedicated Charger Included!
Power up pronto with our 58.4V 20A dedicated charger, zapping your battery from 0 to 100% in just 5.5 hours! Designed for speed, it supports 100% fast charging, ensuring you’re always ready to roll without the long wait. Say goodbye to downtime and hello to more playtime!

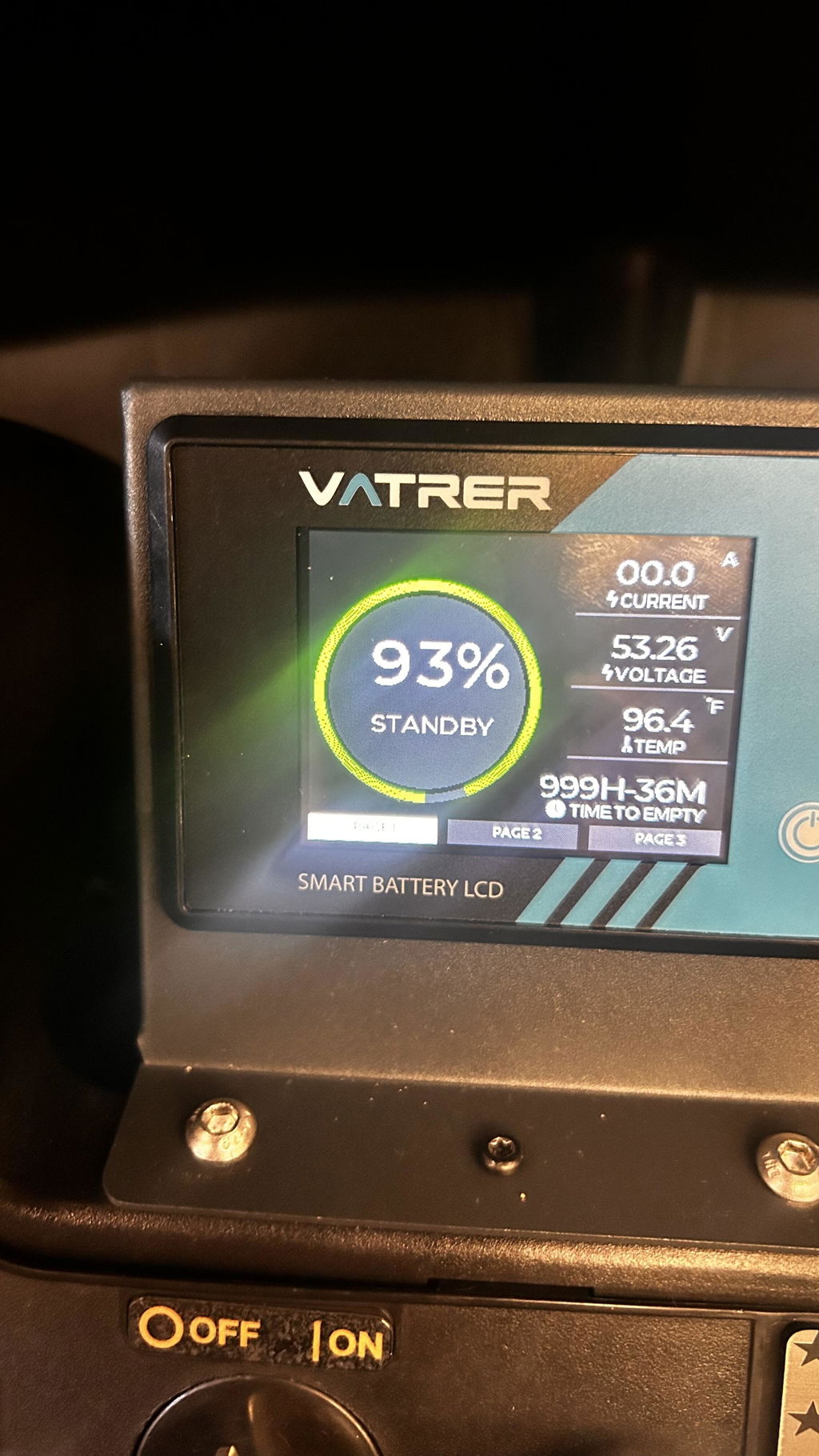

Dual Monitoring: App & LCD Touchscreen Control!
Enjoy flexibility and convenience with two ways to monitor your battery! Use our handy app for insights from your smartphone or tap through the easy-to-use LCD touchscreen directly on your device. Whether you prefer digital detail at your fingertips or on-the-go glanceable graphics, we've got you covered. Keep tabs on your battery's performance effortlessly, anytime, anywhere!
Grab & Go: The Smart, User-Friendly LiFePO4 Battery!
Take the hassle out of handling with our LiFePO4 golf cart battery! Designed for ease, it comes with sturdy handles for simple carrying and screw holes for quick installation. Plus, with its smart one-touch functionality and internal gas venting, managing your power supply is a breeze. Get ready to power up and play with minimal fuss and maximum fun!
Power Up Your Ride: The Ultimate 48V Lithium Battery!
Transform your travel with our 48V lithium battery, the perfect power boost for any street-legal cart. From golf carts to ATVs and tour cars, enjoy a reliable and efficient ride that keeps the fun going longer. Upgrade to our versatile battery solution and experience smooth travels on every turn!
Golf Cart Battery Connection Diagram
Specification | Value |
---|---|
Nominal Voltage | 51.2V |
Charge Voltage | 58.4V |
Weight | 46.5KG / 102.5LBs |
Energy | 5376Wh |
Max Charging Current | 100A |
Max Continuous Discharging Current | 200A (Peak 400A 35S) |
Continuous Charge Current | 55A |
Max Load/Inverter Power | 10240W |
Discharge Cut-off Voltage | 40V |
Operating Temperature Range |
Charge: -20°C to 45°C (-4°F to 113°F) Discharge: -20°C to 60°C (-4°F to 131°F) Storage: -10°C to 50°C (14°F to 122°F) Low temp cut off protection (Charge): 0°C ± 4°C (32°F ± 7.2°F) |
Waterproof Class | IP67 |
Dimension | 500×318×244 mm / 19.69×12.52×9.61 inch |
Cycle Life | ≥4000 Cycles |
Safety Features | BMS, Over Charge/Discharge, Low/High Temp Cut-off, Over Current, Short Circuit |

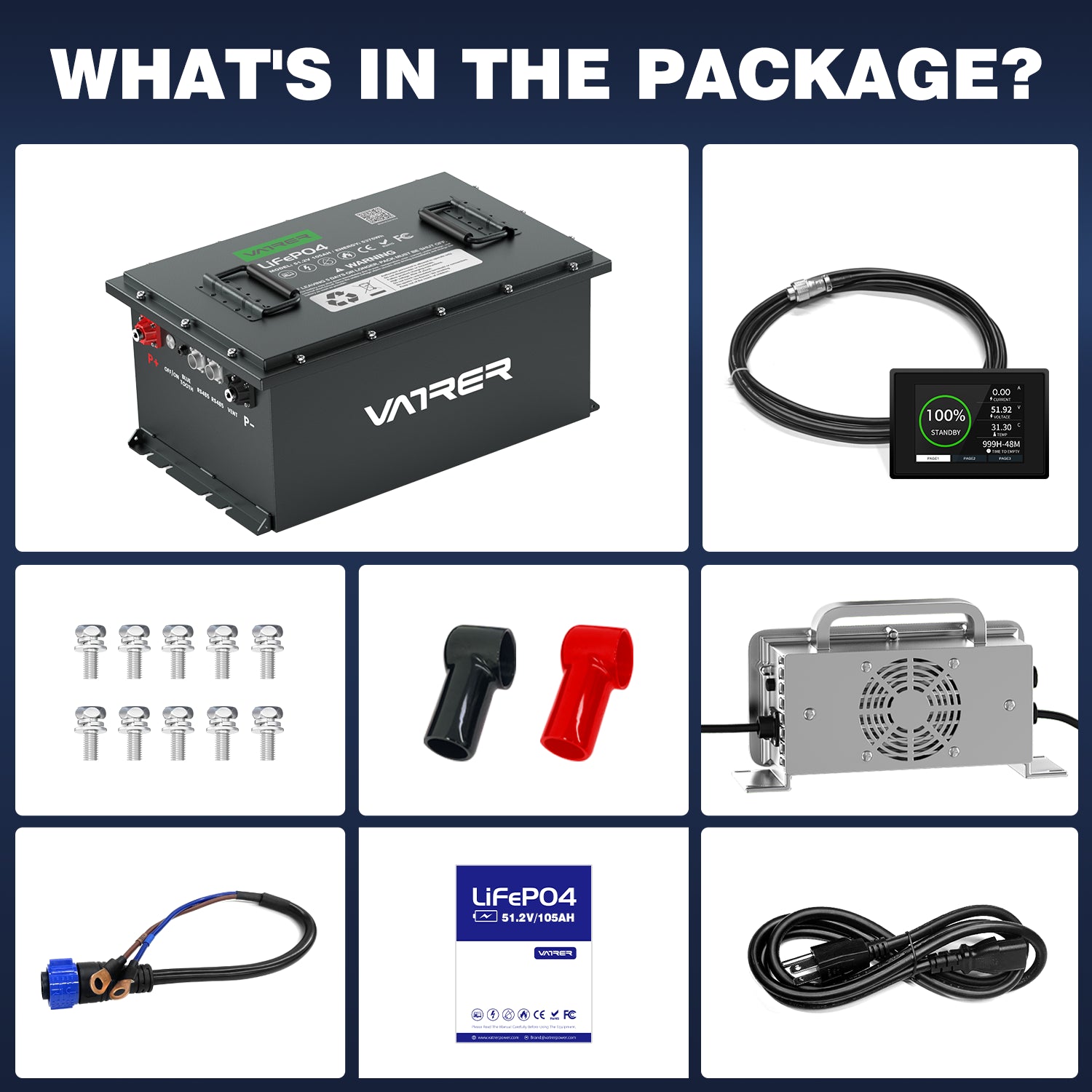

Accessories | 1x51.2V 105Ah Golf Cart Battery, 1x 58.4V 20A LiFePO4 Charger, 1x2.8in LCD Screen, Communication Cables |
The connections on our batteries are crimped and have a very good internal construction. They are nuts attached to the terminals for both the positive (+) and negative (-) connections. The charger also connects to the same lug with the same positive and negative terminals. As long as your cart system is operating at 48V and currently using a lead-acid battery, our LiFePO4 batteries can be a direct replacement. You would not need to change your electric motor or speed controller, making it a plug-and-play solution. If your cart's speed controller is rated at 300A, the cart should retain its current speed when using our battery. The speed controller is responsible for managing the power delivery to the motor, and our battery is capable of providing the necessary current for the controller to function properly. We offer a 10-year warranty on our batteries, provided they are not damaged by human factors. If you encounter any issues with the battery during the warranty period, we will require you to provide the evidence we ask for. Once verified, we will provide you with a pre-paid return label to send the battery back. Depending on your requirements, we will either offer a full refund or send you a new replacement battery. Yes, the touch screen comes with a mounting bracket that can be screwed onto the top of the golf cart's dashboard. This allows you to securely mount the touch screen display in a convenient location. To set up the Bluetooth functionality and monitor the charging status of your battery, please follow these steps:Q1: Are the connections soldered or crimped?
Q2: Would I have to change my electric motor or speed controller to use this battery or is it plug and play with the existing electric motor and controller?
Q3: If my speed controller is rated at 300A, will the cart retain its current speed?
Q4: What is the warranty on the battery?
Q5: Does the touch screen come with a mounting bracket for the golf cart's dash?
Q6: How do I contact you for Bluetooth setup and to know if my battery is charging?
