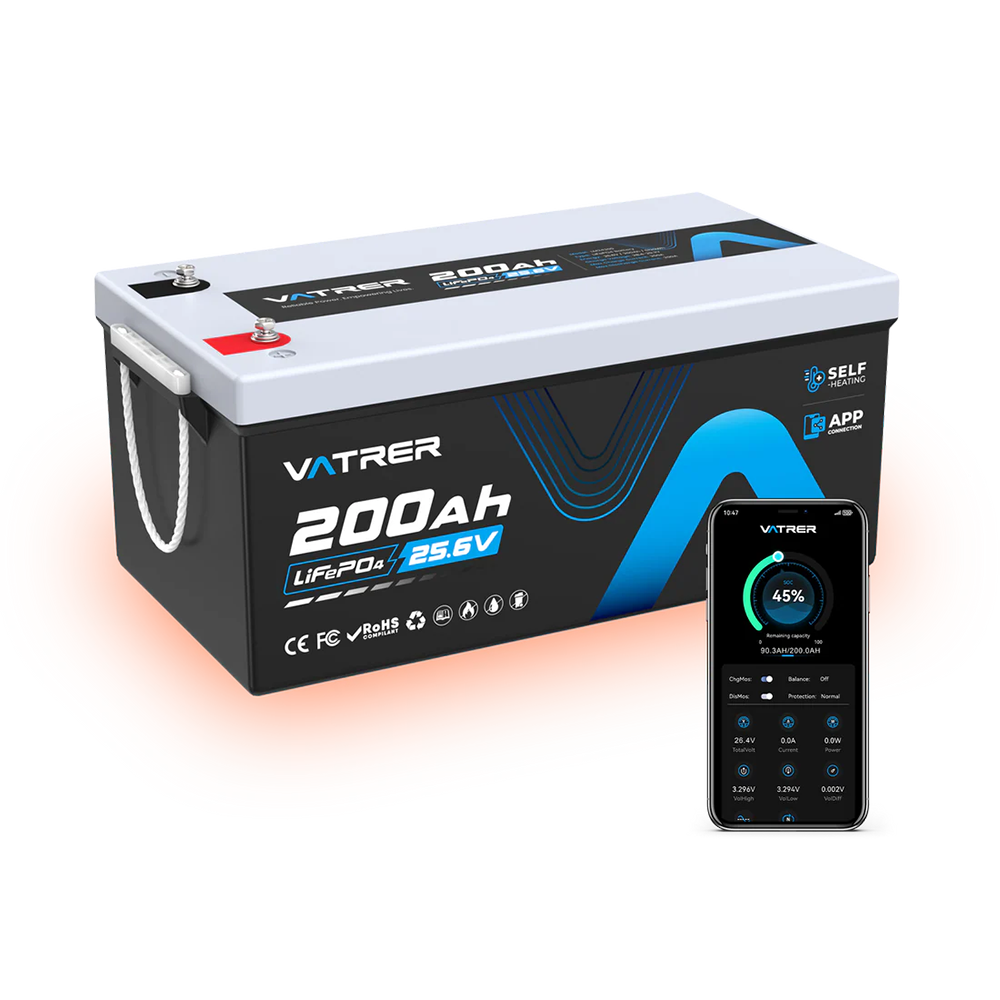

Vatrer 24V 200Ah Self-heating LiFePO4 Lithium Battery Bluetooth Version

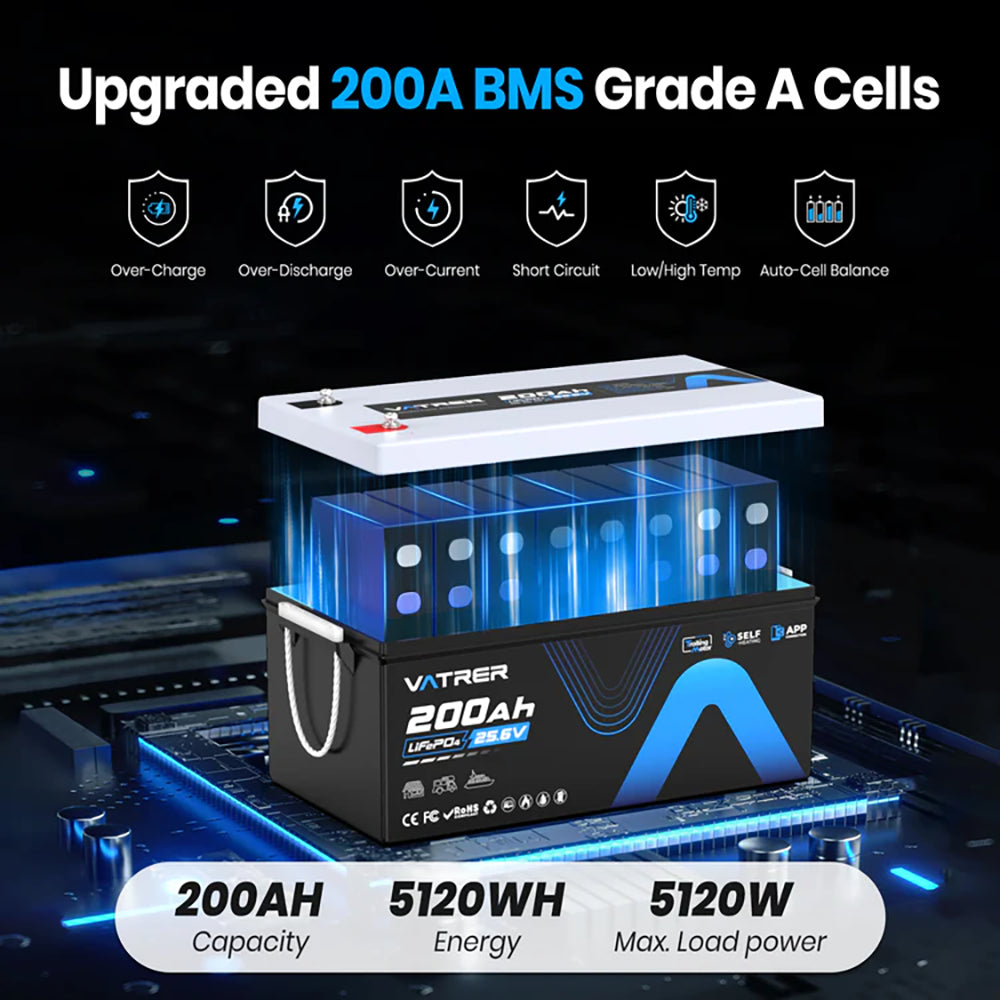

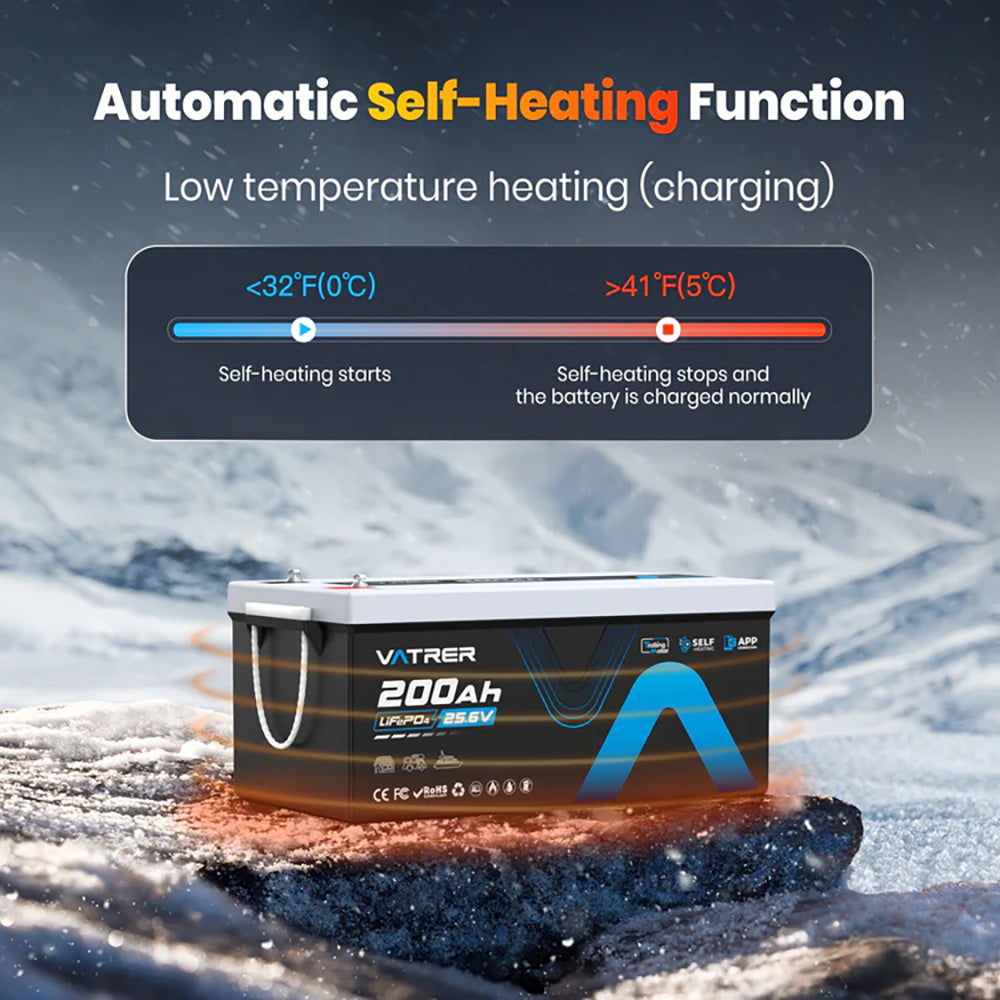

Vatrer deep cycle LiFePO4 battery has built-in BMS to protect it from overcharge, over-discharge, over-current, and short circuits with excellent self-discharge rate. With high temp cutting off prevents charging over 167 °F (75°C) and Low temp cutoff protection. No matter what state the battery is, it can be used as soon as it is charged.

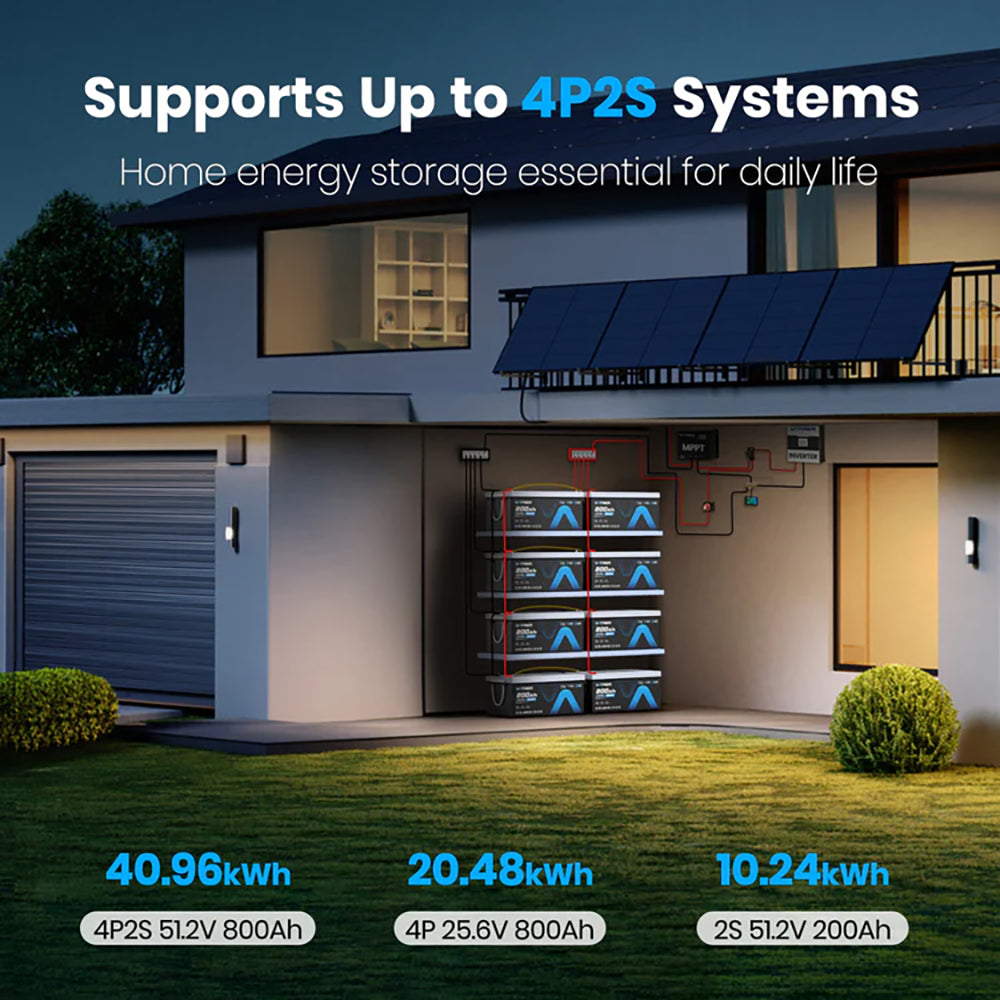

lithium battery manufactured by Automotive Grade LiFePO4 Cells with higher energy density, no memory effect, more stable performance, and greater power. Excellent cycle performance, fast charging and discharging, charging efficiency up to 100%, and high output power. Supporting IP65 waterproof and battery expansion for up to 4 series & 4 parallel and suitable for electric energy storage.

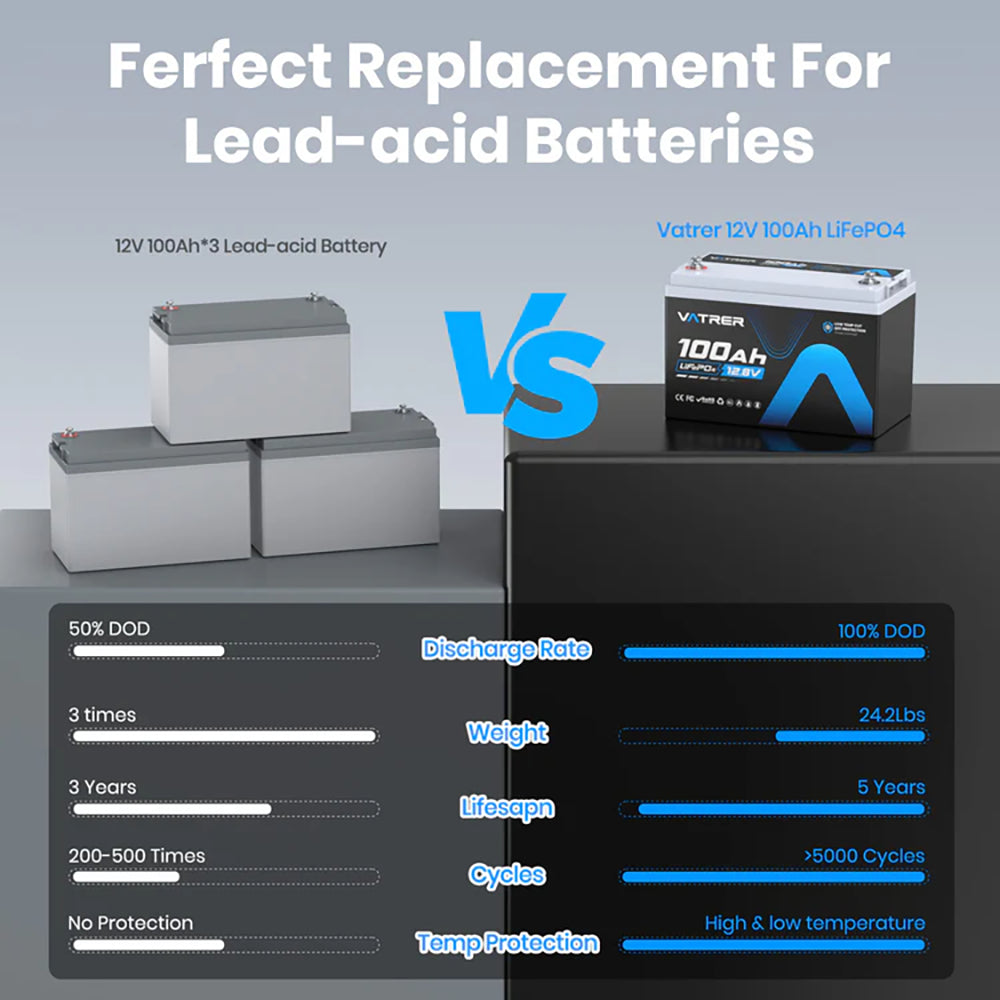

Our LiFePO4 lithium iron batteries battery provides 5000+ cycles compared to 300~500 cycles in lead acid batteries.
Highest-level safety based on UL Testing Certificate for the cell inside the battery.

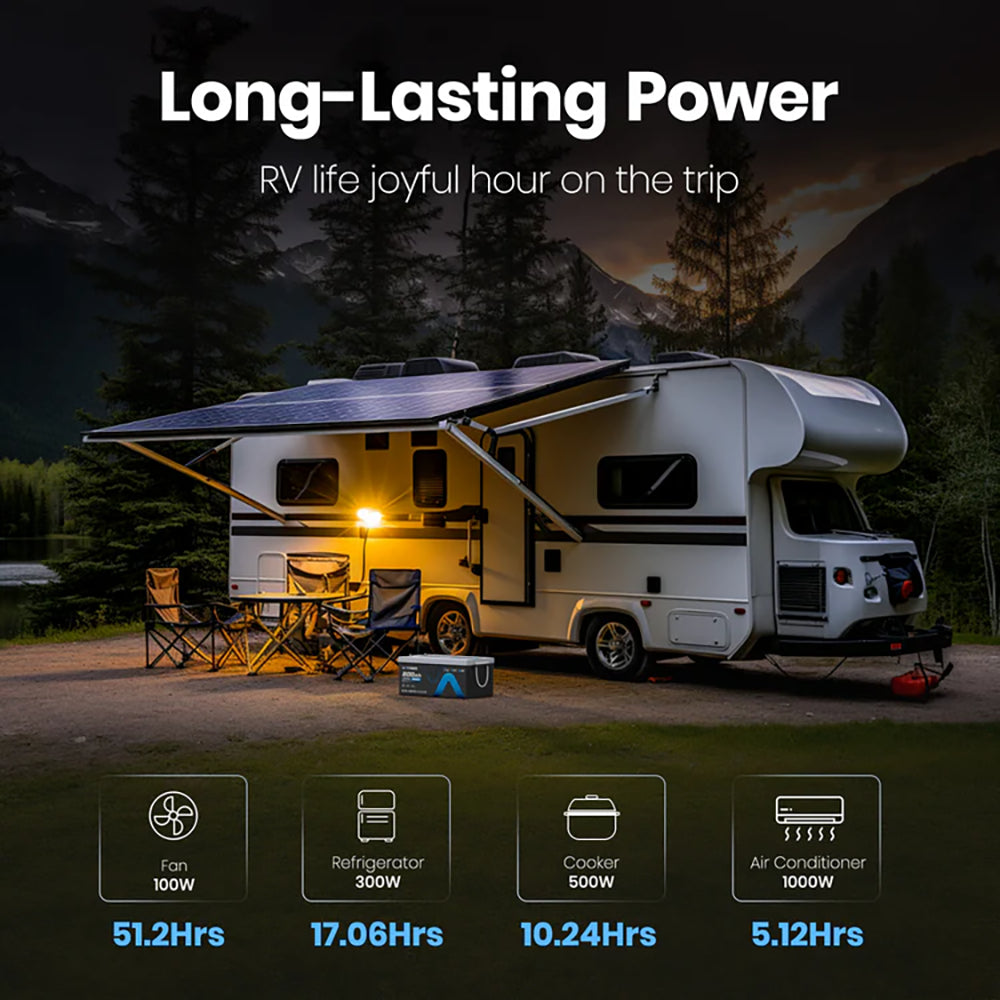

With no acid in the lithium-ion battery, you're able to safely mount it in any position. This makes Li-ion batteries perfect for marine, RV, campers, golf carts, travel trailers, off-road and off-grid applications!
Exclusion of Hawaii (HI), Alaska (AK), and Puerto Rico (PR)
Runtime Calculation
Safety Certifications
Specification | Value |
---|---|
Battery Model | LiFePO4 Battery 25.6V 200Ah |
Nominal Voltage | 25.6V |
Charge Voltage | 28.4V - 29.2V |
Weight | 36.6KG / 80.69LBs |
Energy | 5120Wh |
Max Continuous Charging Current | 200A |
Max Continuous Discharging Current | 200A |
Recommend Charge Current | 40A (0.2C) |
Max Load / Inverter Power | 5120W |

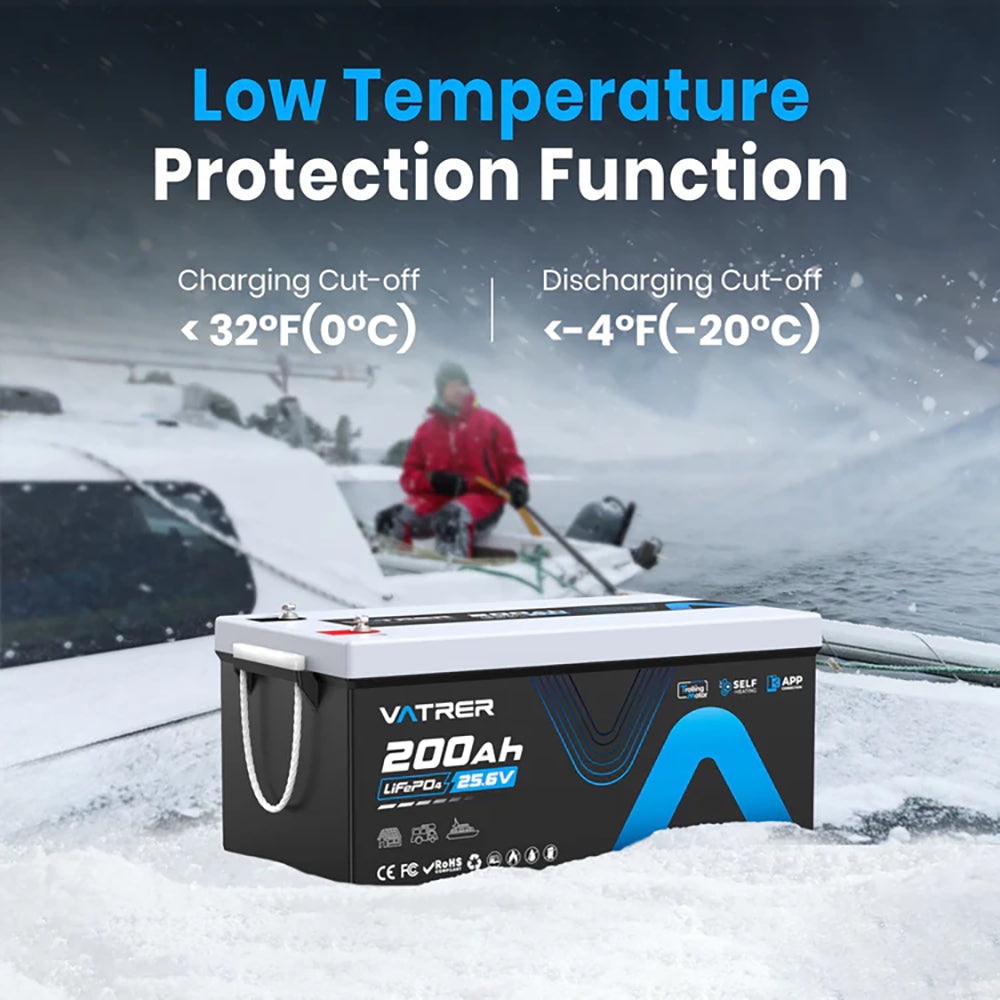

Operating Temperature Range | Charge: -20°C to 50°C (-4°F to 122°F) Discharge: -20°C to 60°C (-4°F to 140°F) Storage: -10°C to 50°C (14°F to 122°F) Low temp cut off protection (Discharge): -20°C ± 4°C (-4°F ± 7.2°F) |
Waterproof Class | IP65 |
Terminal Type | M8 |

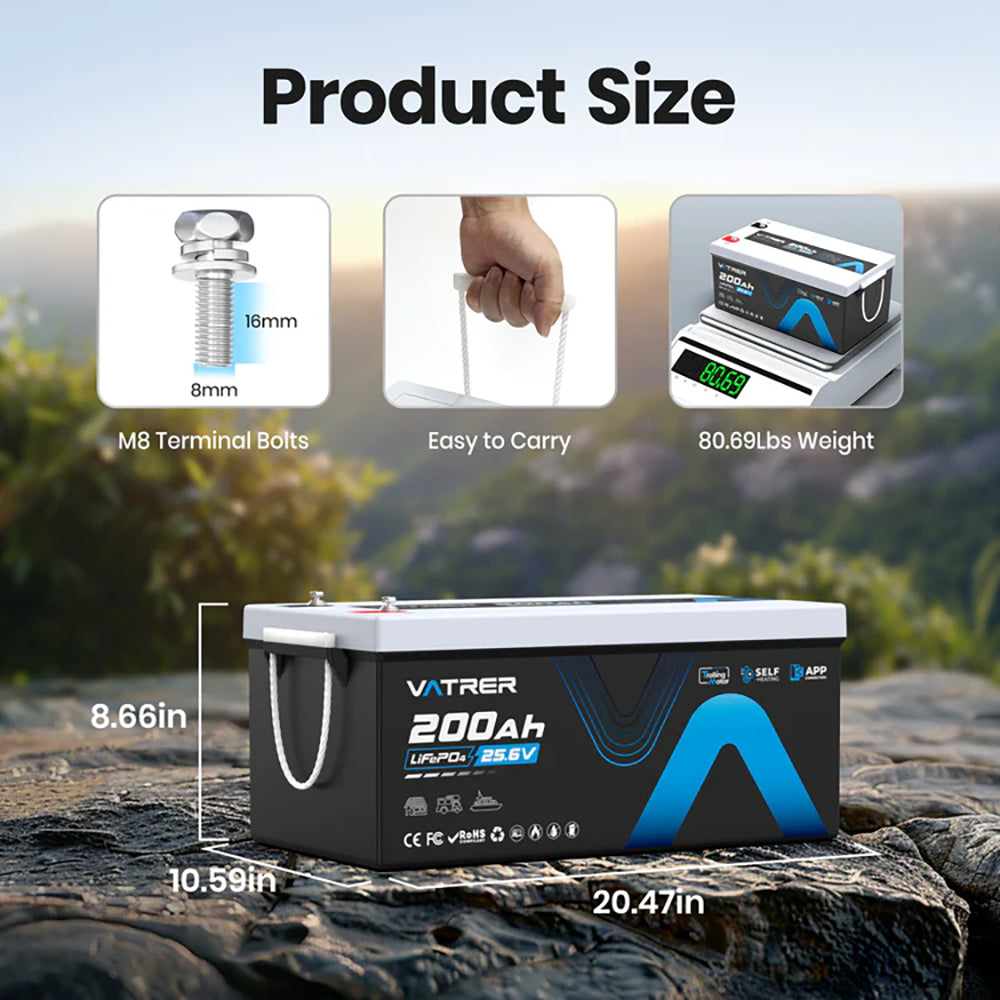

Dimension | 520x269x220mm 20.47x10.59x8.66inch |
Accessories | 1*24V 200Ah LiFePO4 Battery, 2*M8 Terminals, 2*Caps |
Yes, of course! If you purchase our battery with low temperature cutoff, our BMS has a low temperature protection cut-off function that protects your battery from low temperature damage and extends battery life. Low temp cut off protection (Charge): 0℃ ± 4℃ (32°F ± 7.2°F) Low temp cut off protection (Discharge): -20℃ ± 4℃ (-4°F ± 7.2°F) We recommend using a lithium iron phosphate 4-string (14.6V) charger to charge the battery. Additionally, you have two other options: Scheme 2: You can use photovoltaic solar panels to charge the battery through MPPT. Scheme 3: You can use an inverter with a built-in AC to DC charging function to charge the battery pack. A BMS (Battery Management System) is a system that protects the battery and ensures safe operation. It monitors conditions such as low or high voltage, low or high temperatures, and shorts in the system. The BMS shuts off the battery to protect the lithium-ion cells and the user from unsafe operating conditions. It also helps balance the cells and maintains the quality and efficiency of the battery pack. Our LiFePO4 lithium iron batteries provide 5000+ cycles compared to 300-500 cycles in lead acid batteries. The service life of LiFePO4 batteries is 8 to 10 times longer than standard lead-acid batteries. Our LiFePO4 batteries are manufactured using Automotive Grade LiFePO4 Cells, which have higher energy density, stability, and power. The stable Lithium Iron Phosphate chemical structure ensures that LiFePO4 batteries do not burn or explode even under high temperature, short circuit, impact, or drop conditions. They have undergone UL Testing and are certified for safety. Our batteries do not contain heavy metals or rare metals, making them environmentally friendly. The built-in Battery Management System (BMS) provides protection against overcharge, deep discharge, overload, overheating, and short circuits. The BMS also has a high temperature disconnect function, automatically disconnecting the battery when the internal temperature reaches 75°C / 167°F. Additionally, the batteries have overcharge and overdischarge protection functions. We apologize, but our batteries cannot be used to jump-start a vehicle. However, they can be used as a power supply for automobiles. You can recharge the car via a Jackery power supply cord, which is available for purchase separately.Q1: Does the BMS have low temperature charging disconnect?
Q2: Do I have to buy a special charger for LiFePO4 batteries?
Q3: What is a BMS?
Q4: How long do LiFePO4 batteries last?
Q5: Are your batteries safe?
Q6: Can it be used to jump-start a car?
