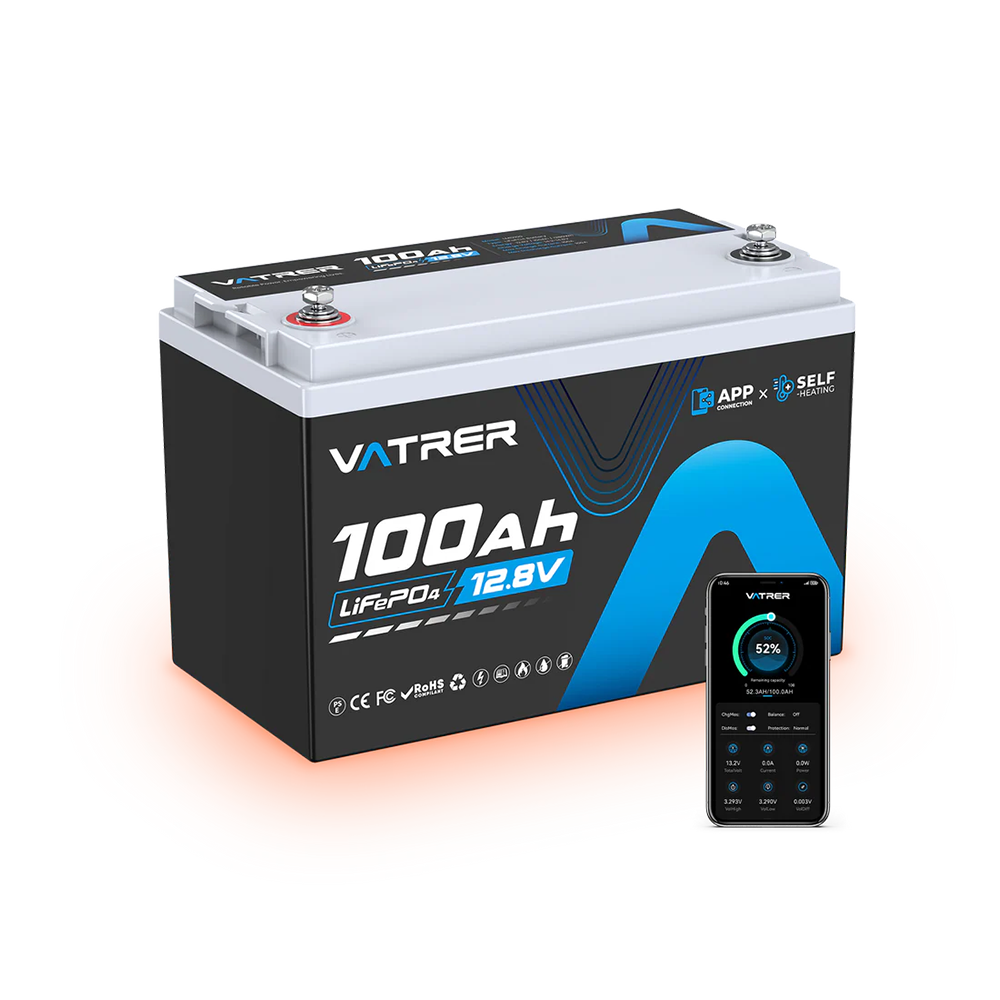

Vatrer 12V 100AH LiFePO4 Heated Lithium Battery with Bluetooth
Vatrer deep cycle LiFePO4 battery has built-in BMS to protect it from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate.With high temp cutting off prevents charging over 167 °F (75°C) and Low temp cutoff protection . No matter what state the battery is, it can be used as soon as it is charged.
lithium battery manufactured by Automotive Grade LiFePO4 Cells with higher energy density, no memory effect, more stable performance and greater power. Excellent cycle performance, fast charging and discharging, charging efficiency up to 100%, and high output power. Supporting IP65 waterproof and battery expansion for up to 4 series & 4 parallel and suitable for electric energy storage.
Our LiFePO4 lithium iron batteries battery provides 5000+ cycles compared to 300~500 cycles in lead acid battery.
Highest-level safety based on UL Testing Certificate for the cell inside the battery.

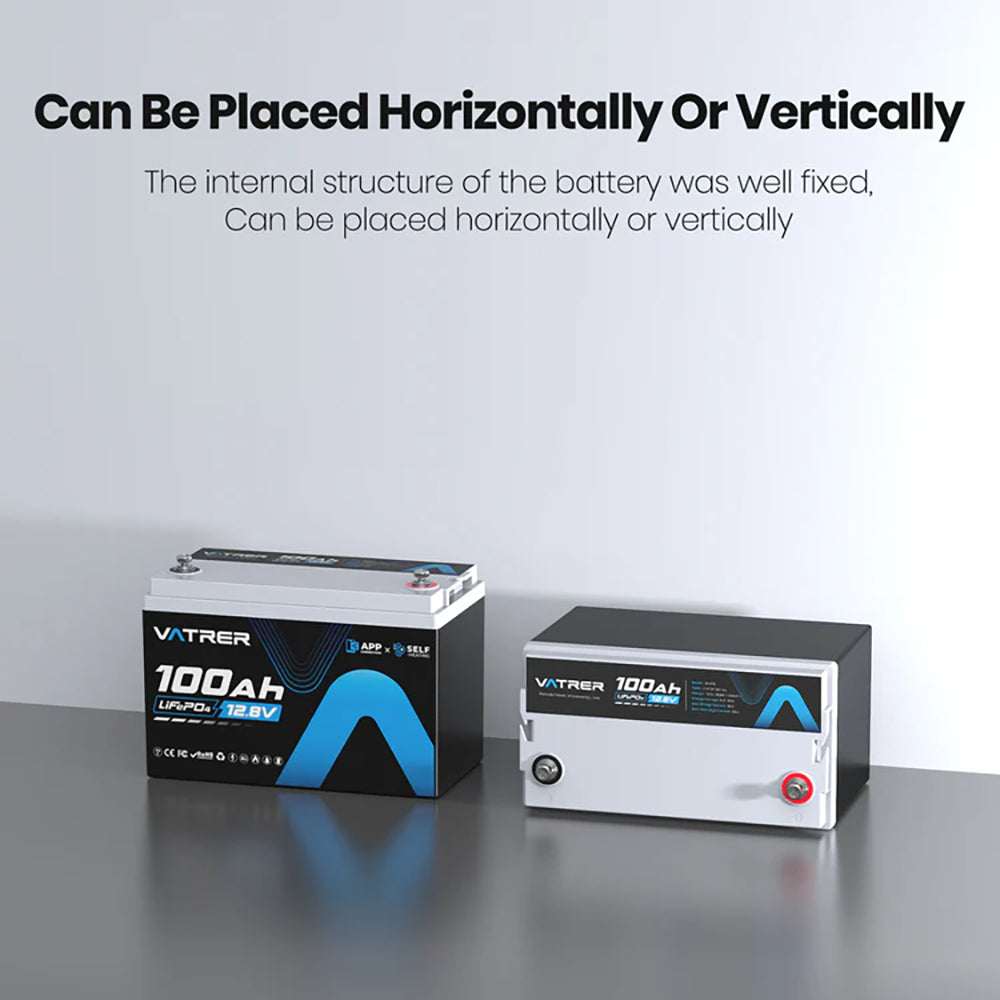

With no acid in the lithium ion battery, you're able to safely mount in any position. This makes li-ion batteries perfect for marine, RV, campers, travel trailer, off-road and off-grid applications!

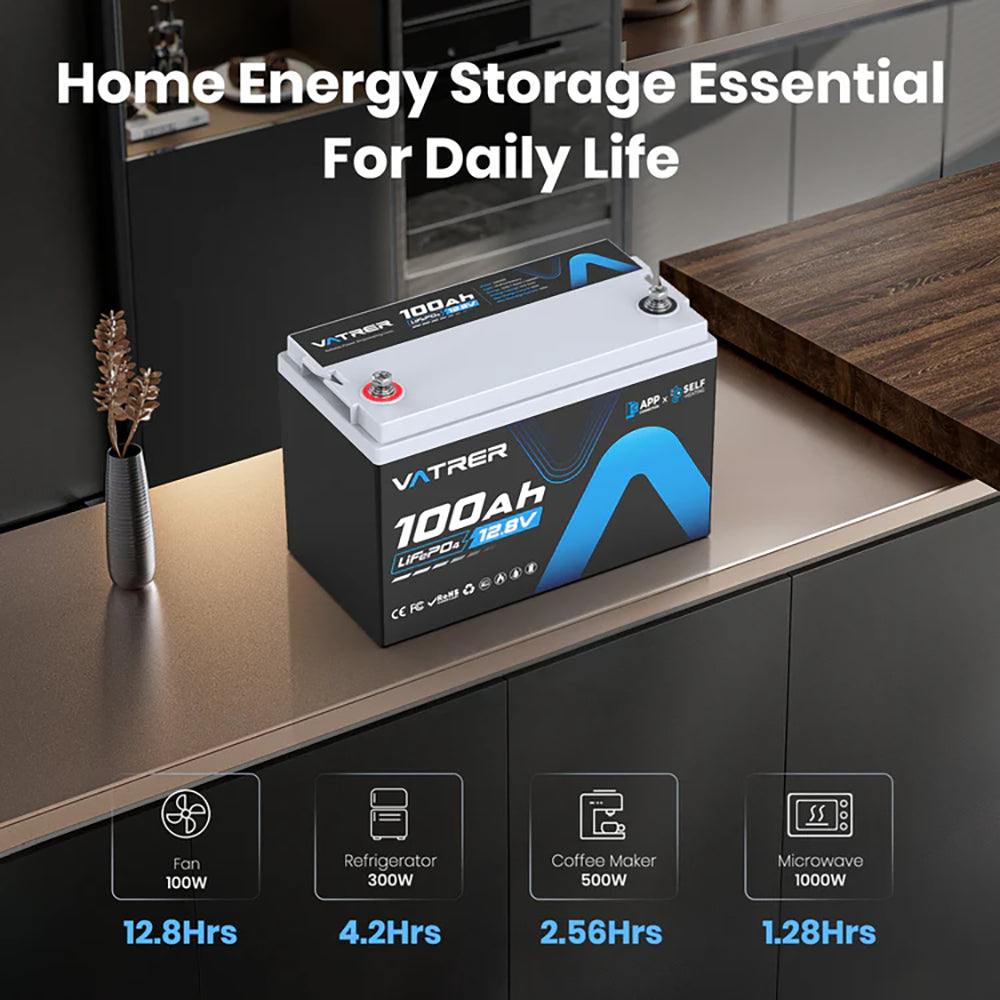

Runtime Calculation
Safety Certifications
High Performance, Long Life, Waterproof, and Safe
Discover the Vatrer 12V 100Ah Heated Lithium Battery, designed for exceptional performance and longevity. With a maximum continuous discharge of 100A and over 5000 cycles, this battery ensures reliable power for your needs. It boasts an IP65 waterproof rating and 1.28kWh of usable energy. Equipped with a super safe BMS for 100% full protection, it delivers a maximum continuous load power of 1.28kW. Ideal for various applications, offering durability, efficiency, and peace of mind.

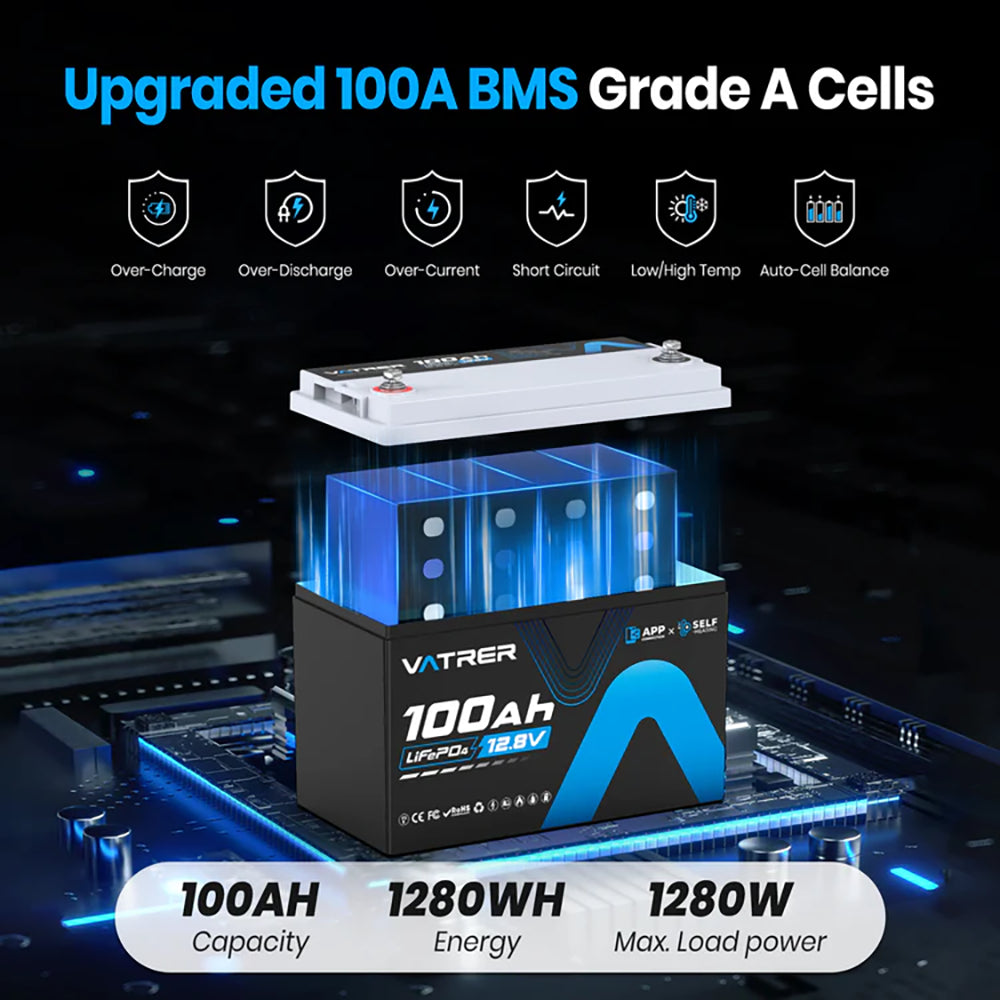

Enhanced BMS for Ultimate Protection and Performance
This battery features a built-in 100A BMS offering 100% full protection, including overcharge, discharge, overcurrent, and short circuit safeguards. It provides a peak discharge of 300A for 5 seconds, continuous discharge of 100A, and reliable operation in both low and high temperatures. Perfect for applications requiring high discharge and charge capacity.

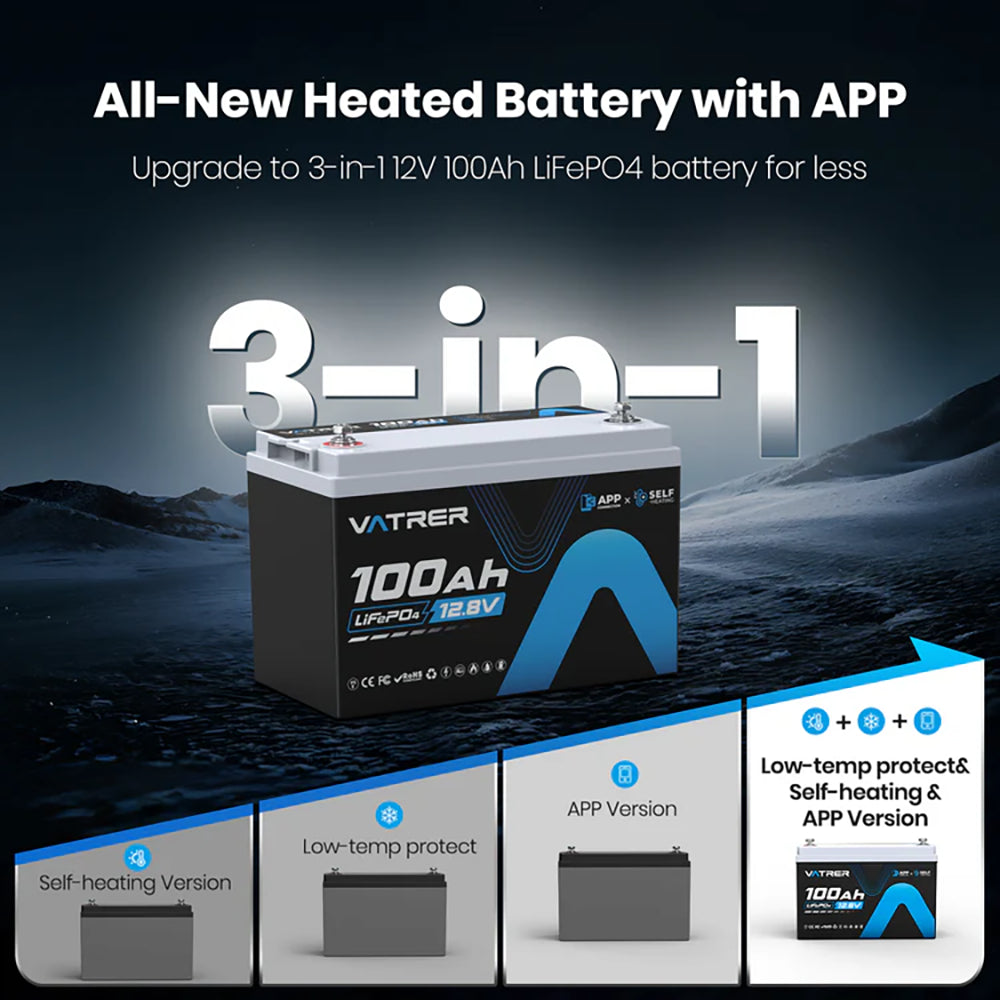

Smart Self-Heating for Optimal Low-Temperature Performance
The 12V 100Ah battery features innovative smart self-heating technology, starting at temperatures below -4°F (-20°C) and stopping above 41°F (5°C). This ensures efficient charging even in low temperatures, making it ideal for use in cold climates.

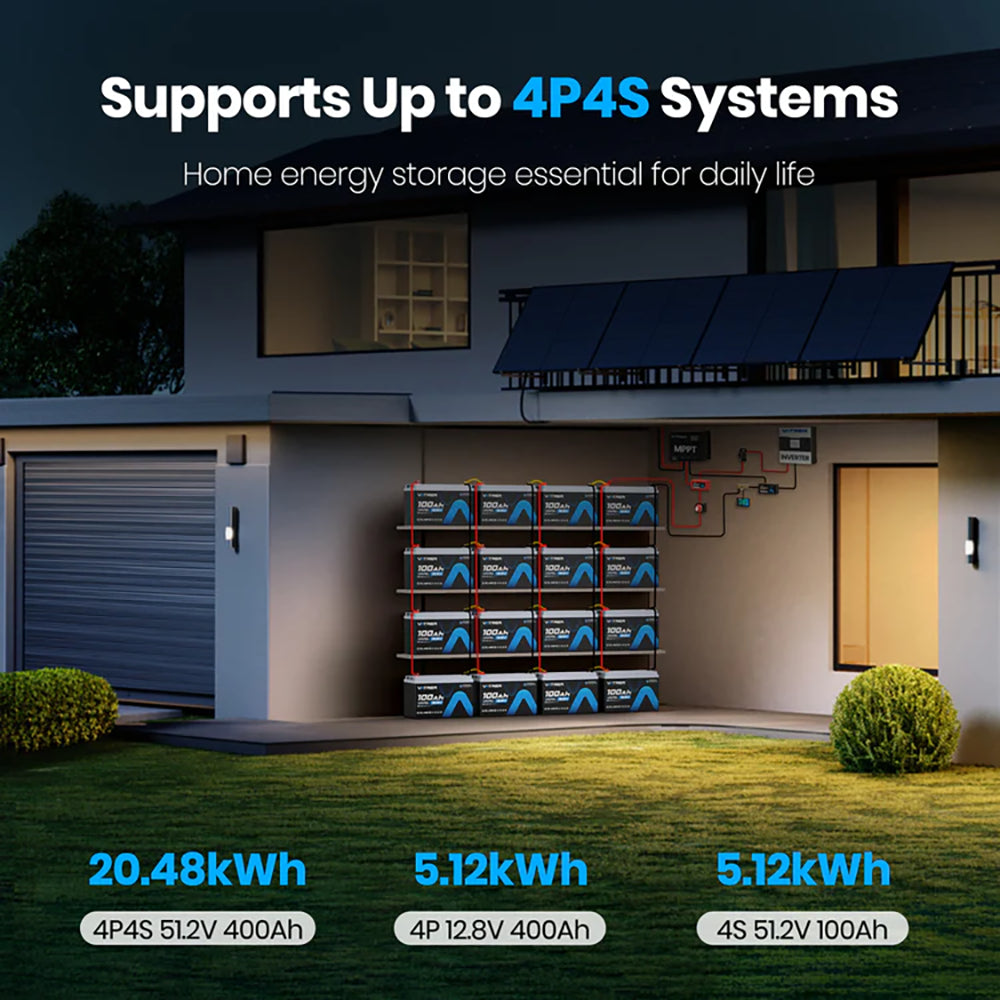

Flexibility with 4S4P Capacity Expansion
The Vatrer 12V 100Ah Heated Lithium Battery supports configurations up to 4 in series and 10 in parallel, delivering a maximum load power of 20.48kW and a maximum energy capacity of 20.48kWh. Ideal for high-demand applications, it ensures reliable and scalable performance.

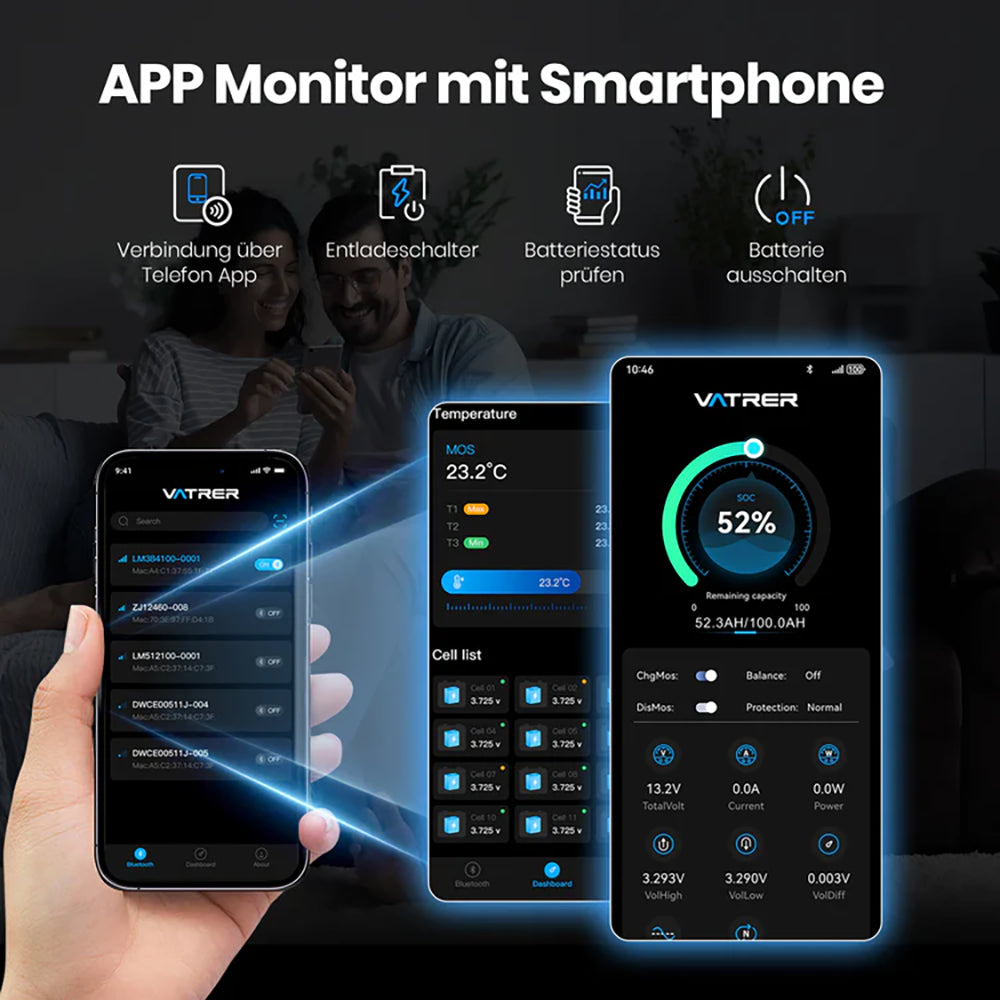

Real-Time Monitoring and Easy Control
The Vatrer 12V 100Ah Heated Lithium Battery enables real-time monitoring of battery parameters, making it easy to control and manage your battery's performance. Designed for convenience and efficiency, it ensures you stay informed and in control at all times.
Versatile Charging Solutions for Anytime, Anywhere
This battery offers easy recharging anytime, anywhere with support for generator and DC-DC charger inputs. It supports LiFePO4/LFP charging mode at 14.6V and integrates seamlessly with solar panels, MPPT controllers, inverters, and loads, ensuring versatile and efficient charging solutions.
How Long Does lt Take to Fully Charge?
This 12V 100Ah Heated battery offers fast and flexible charging options: fully charge in 4.27 hours with 300W solar panels, 2.13 hours with 600W solar panels, 5 hours with a 14.6V 20A charger, or 2.5 hours with a 14.6V 40A charger. Adaptable to various power sources for your convenience.
Versatile Solution for All Applications

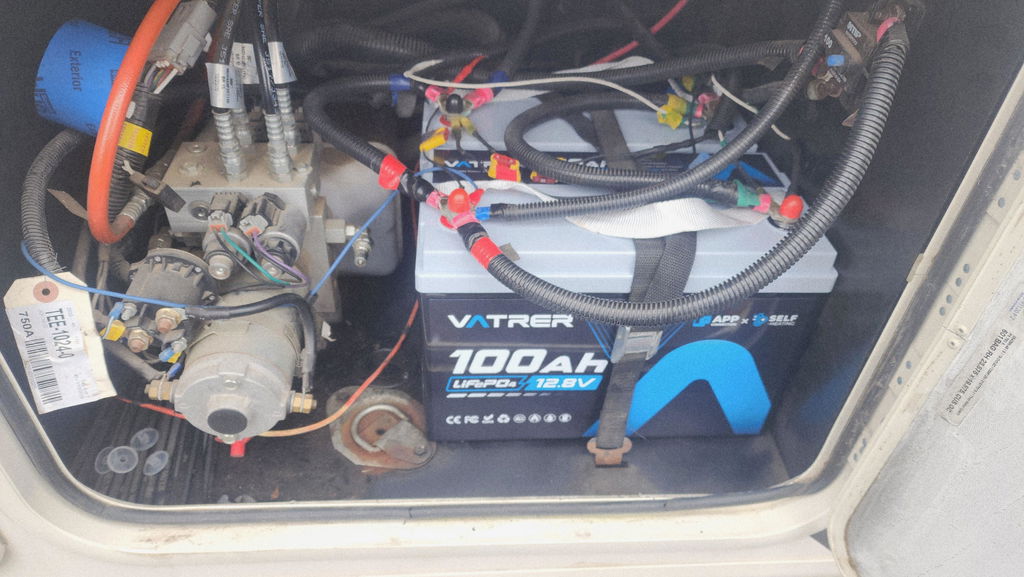

The Vatrer 12V 100Ah Heated Lithium Battery is perfect for a wide range of application scenarios, including home solar power systems, RVs, vans, motorhomes, camping, trolling motors, marine and boat systems, and off-grid setups. Its versatility makes it an ideal choice for any power need.
Advantage
Experience the advantages that our LiFePO4 battery offers, making it the ultimate power solution for a variety of applications. With its mobile design, integrated battery management system, superior performance, and maintenance-free operation, this battery is the perfect replacement or upgrade for traditional lead-acid batteries.
Portable and Easy to Handle:
Our LiFePO4 battery features a mobile design with carry handles, making it incredibly easy to lift and move around. Enjoy the convenience of a portable power source that can be effortlessly transported wherever you need it.
Integrated Battery Management System:
With the battery management system enclosed within the battery, there's no need for extra wiring or additional components. This built-in system optimizes the battery's performance, ensures safe operation, and prolongs its lifespan. Enjoy the benefits of a hassle-free and streamlined power solution.
Superior Performance and Longevity:
Engineered with LiFePO4 battery cells, our battery is designed to deliver superior performance and exceptional longevity. Experience reliable power output, extended cycle life, and consistent voltage throughout the battery's discharge. With a voltage that stays above 12.5V even at 90% discharge, you can count on a reliable power source for longer durations.
Maintenance-Free and Non-Spill:
Our LiFePO4 battery is maintenance-free, eliminating the need for regular maintenance and service. Say goodbye to checking water levels or dealing with acid spills. Enjoy the convenience of a hassle-free power solution that requires minimal attention while providing maximum performance.
Perfect Replacement or Upgrade:
Whether you need a direct replacement for a traditional lead-acid battery or are looking to upgrade your power system, our LiFePO4 battery is the ideal solution. Benefit from the superior performance, longer lifespan, and enhanced safety of LiFePO4 technology, taking your power needs to the next level.
| Specification | Value |
|---|---|
| Battery Model | LiFePO4 Battery 12.8V 100Ah |
| Nominal Voltage | 12.8V |
| Capacity | 100Ah |
| Charge Voltage | 14.2V-14.6V |
| Weight | 11KG / 24.2LB |
| Energy | 1280Wh |
| Max Continuous Charging Current | 100A |
| Max Continuous Discharging Current | 100A |
| Recommended Charge Current | 20A (0.2C) |
| Max Load/Inverter Power | 1280W |
| Operating Temperature Range | Charge: -20°C~ 50°C(-4°F~ 122°F) Discharge: -20°C to 60°C (-4°F to 140°F) Storage: -10°C to 50°C (-14°F to 122°F) Low temp cut off protection (Discharge): -20°C±4°C (-4°F±7.2°F) |
| Waterproof Class | IP65 |
| Terminal Type | M8 |

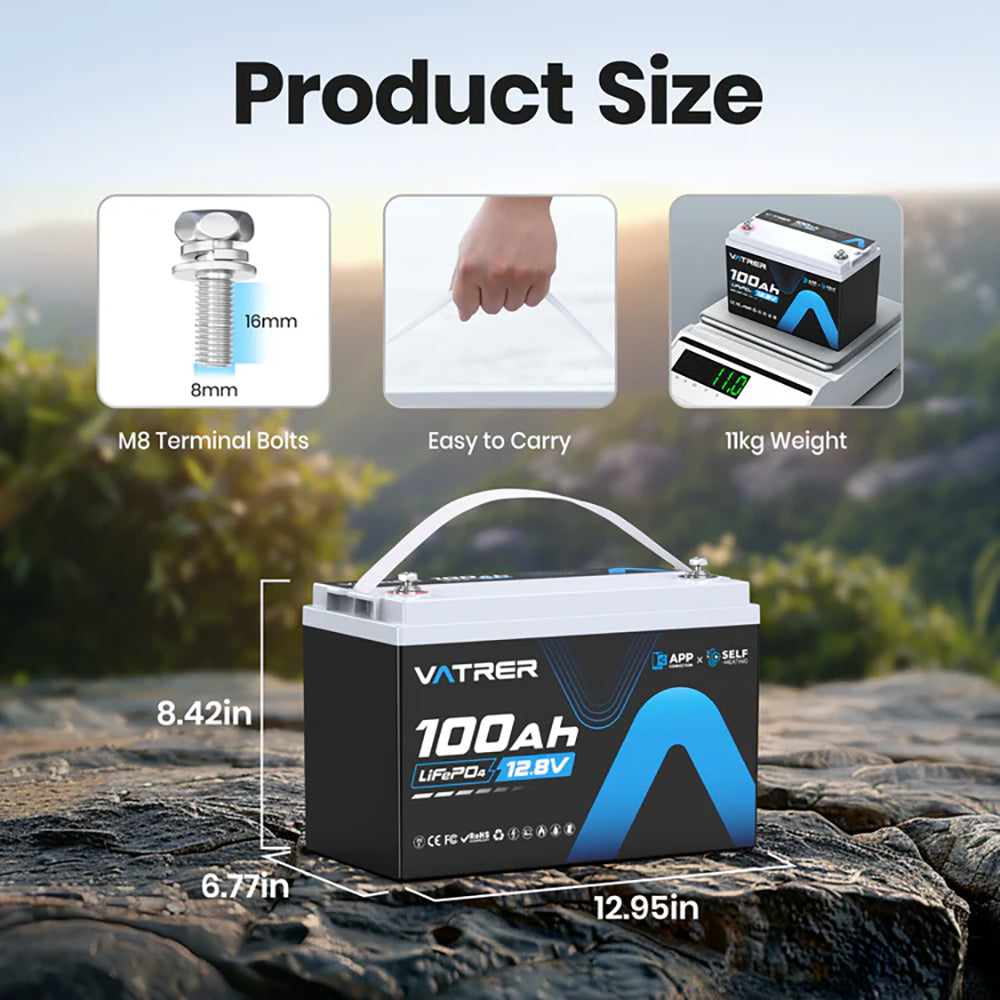

| Dimensions | 329x172x214 mm / 12.95x6.77x8.42 inch |
| Cycle Life | >=5000 Cycles |
| Series/Parallel Connections | 4 in Series, and no more than 10PCS in Parallel |
Yes, indeed! Our LiFePO4 battery comes equipped with a BMS that includes low temperature protection cut-off functionality. This feature ensures that your battery remains safeguarded against any potential damage caused by extremely cold temperatures. The low temperature cut-off protection for charging is set at 0°C ± 4°C (32°F ± 39.2°F), while for discharging, it is set at -20°C ± 4°C (-4°F ± 39.2°F).
For optimal charging of our LiFePO4 battery, we recommend using a lithium iron phosphate 4-string (14.6V) charger. This specific charger is designed to provide the appropriate voltage and charging characteristics for LiFePO4 batteries. However, if you prefer alternative charging methods, you can also utilize photovoltaic solar panels with an MPPT charger or an inverter with a built-in AC to DC charging function.
The BMS, or Battery Management System, plays a crucial role in the operation and safety of the LiFePO4 battery. It is responsible for various functions, including protecting the battery and the user from hazardous conditions such as low or high voltage, low or high temperatures, and short circuits. The BMS also ensures that all the cells within the battery pack remain balanced, allowing for optimal performance and longevity. Additionally, our BMS features a charge balancing function that reduces the charging rate for cells that have reached their capacity, enabling other cells to catch up and maintain the overall balance of the battery pack.
Our LiFePO4 lithium iron phosphate batteries have an impressive lifespan, providing a minimum of 2000 cycles at 100% depth of discharge (DoD). In more practical terms, this translates to a service life that is 8 to 10 times longer than standard lead-acid batteries. With proper care and usage, these batteries can serve you reliably for an extended period.
Absolutely! Our LiFePO4 batteries are designed with safety as a top priority. They are manufactured using automotive-grade LiFePO4 cells, offering higher energy density and enhanced stability compared to other battery chemistries. These batteries exhibit excellent safety characteristics, even under challenging conditions such as high temperatures, short circuits, impacts, and drops. The stable chemical structure of LiFePO4 ensures that the batteries do not burn or explode. Furthermore, our batteries have obtained UL Testing Certificates, assuring the highest level of safety. They are also environmentally friendly, containing no heavy metals or rare metals. Additionally, the built-in Battery Management System (BMS) provides comprehensive protection against overcharge, deep discharge, overload, overheating, short circuits, and low self-discharge rate.
Regrettably, our LiFePO4 battery is not designed to be used for jump-starting vehicles. However, it can serve as a reliable power supply for automobiles. To recharge your car, you may connect it to the LiFePO4 battery using a Jackery power supply cord, which can be purchased separately.
