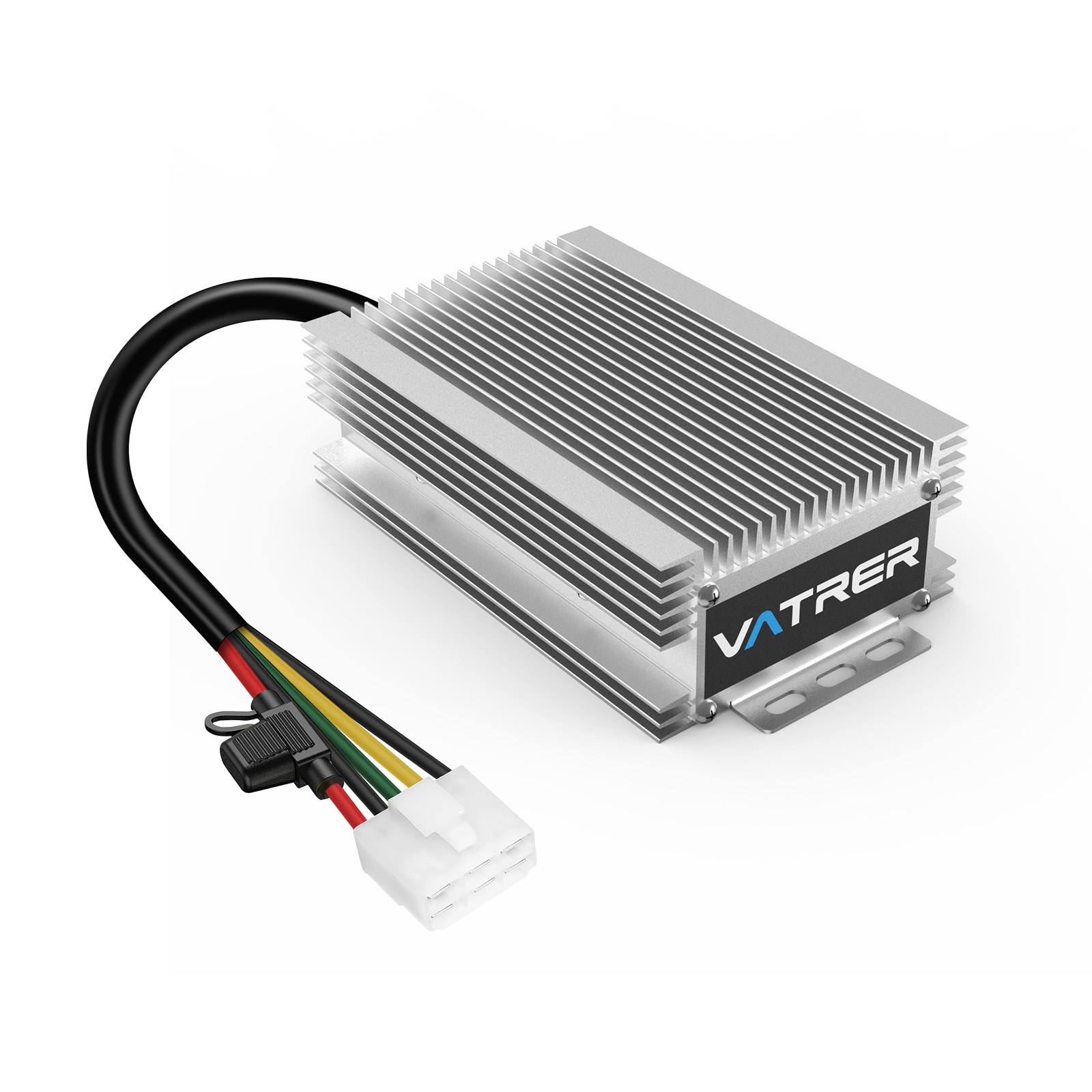

[Pre-order] Vatrer 48V/72V to 12V Golf Cart Power Converter, 25A/335W DC to DC Voltage Reducer
High Efficiency Design

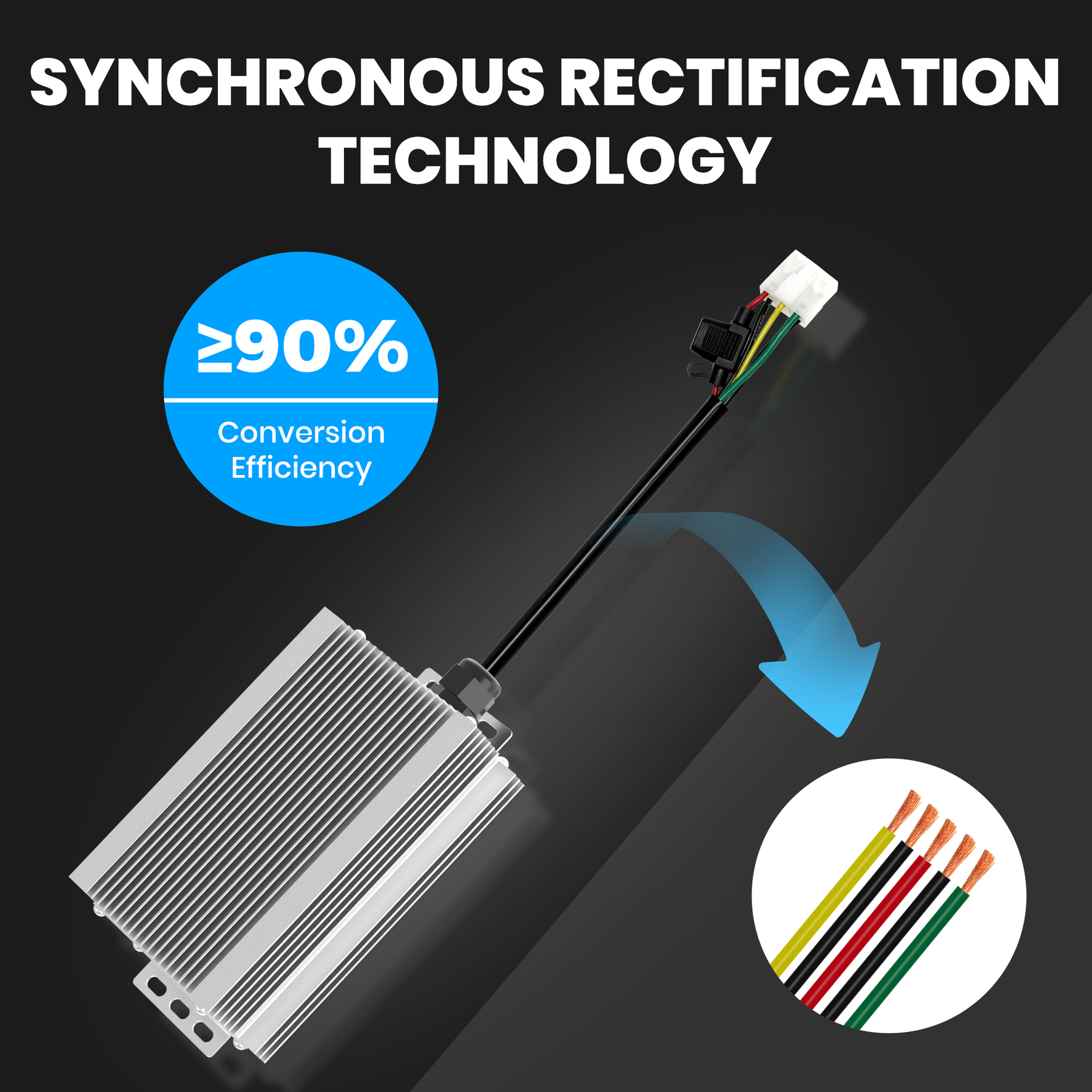

The converter features carefully designed circuitry that ensures high efficiency and reliable system operation. It utilizes synchronous rectification, achieving a conversion efficiency of ≥90%, which is superior to other similar products.
Versatile Applications

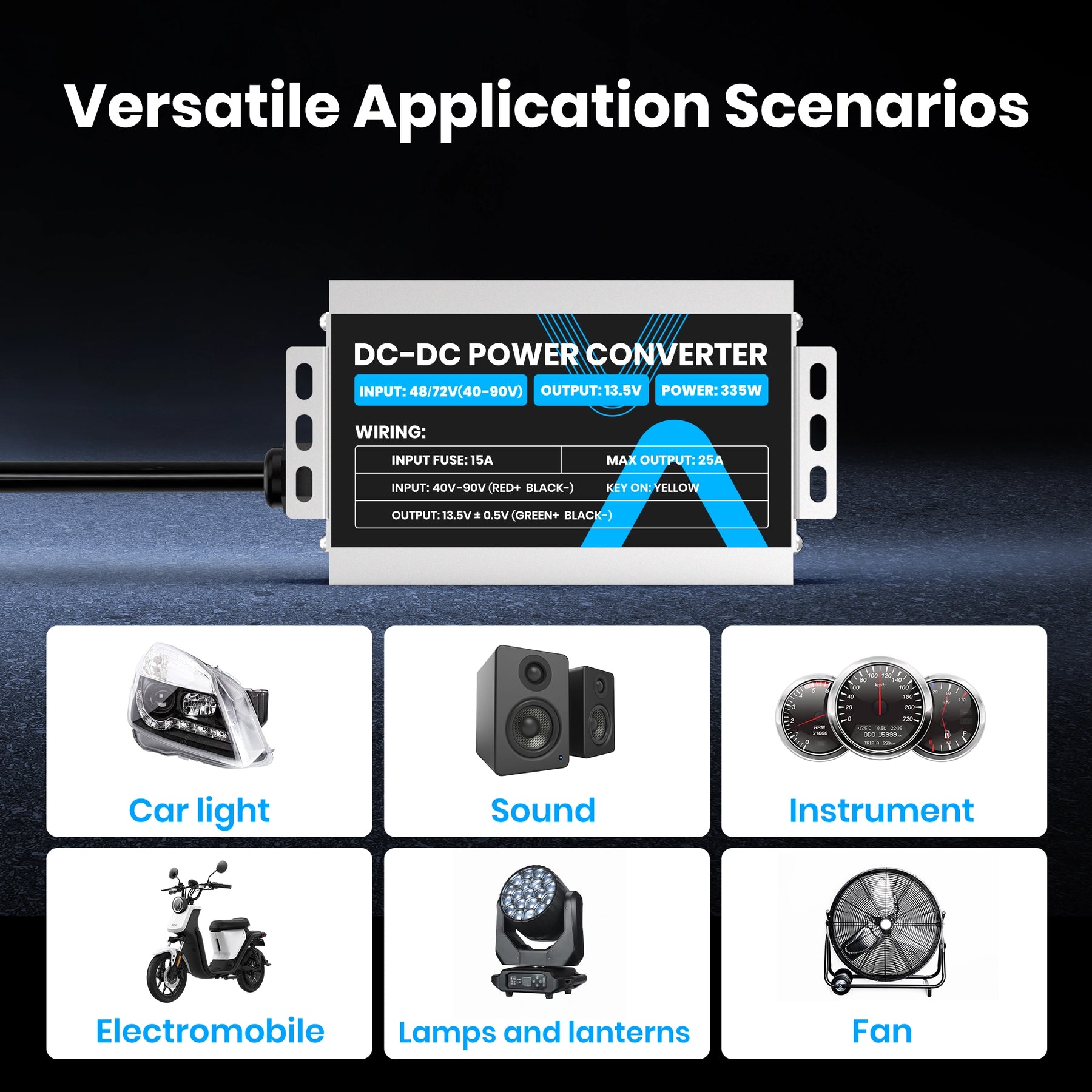

This converter is suitable for various DC power applications, including electric vehicles like forklifts, golf carts, and tour vehicles. It can also be used for voltage conversion in solar and wind power DC sources, providing an output voltage of 13.5V.
Robust Protection Features

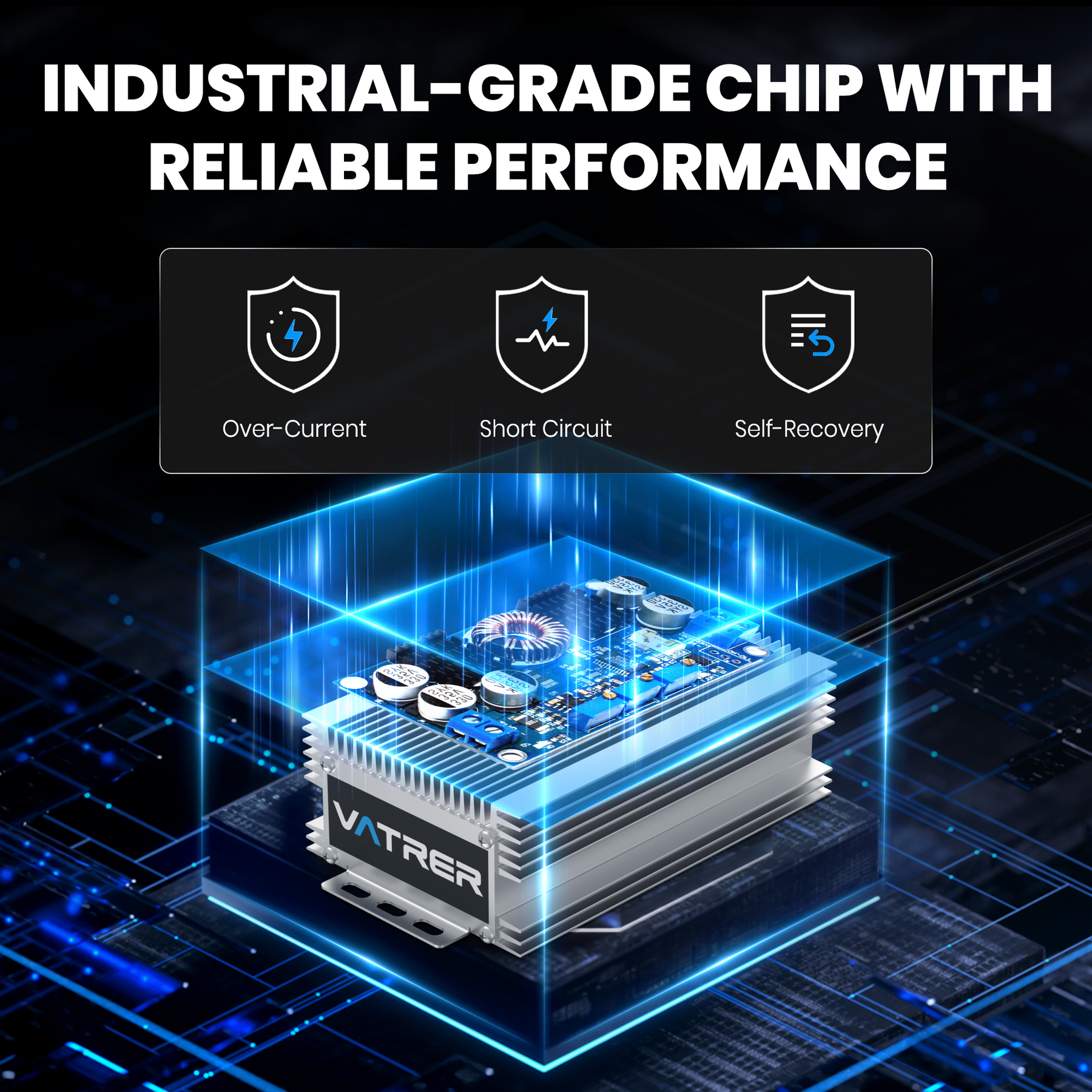

Equipped with internal overcurrent and short-circuit protection circuits, the converter ensures safe operation. It also includes a self-recovery feature, enhancing its durability.

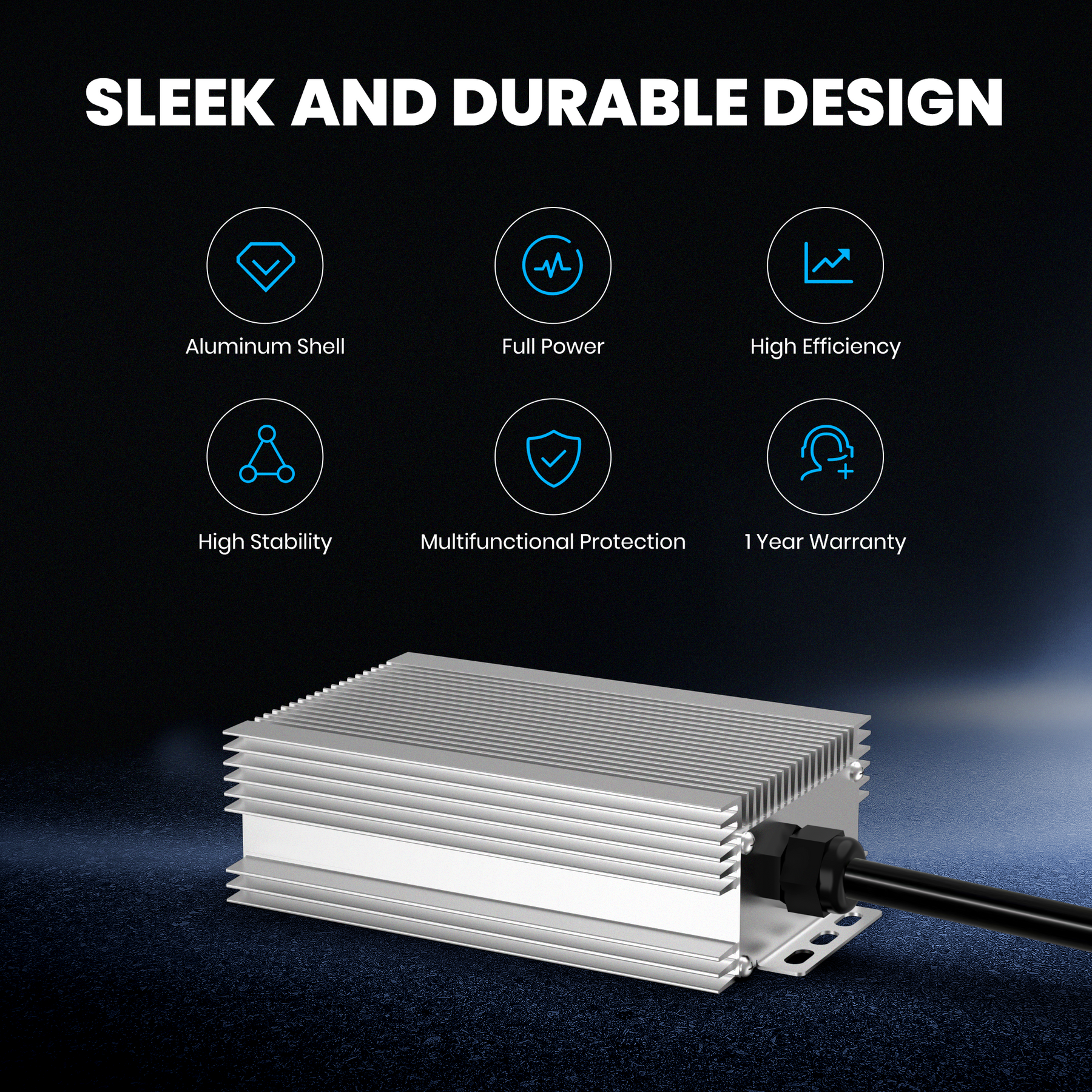

Durable Construction

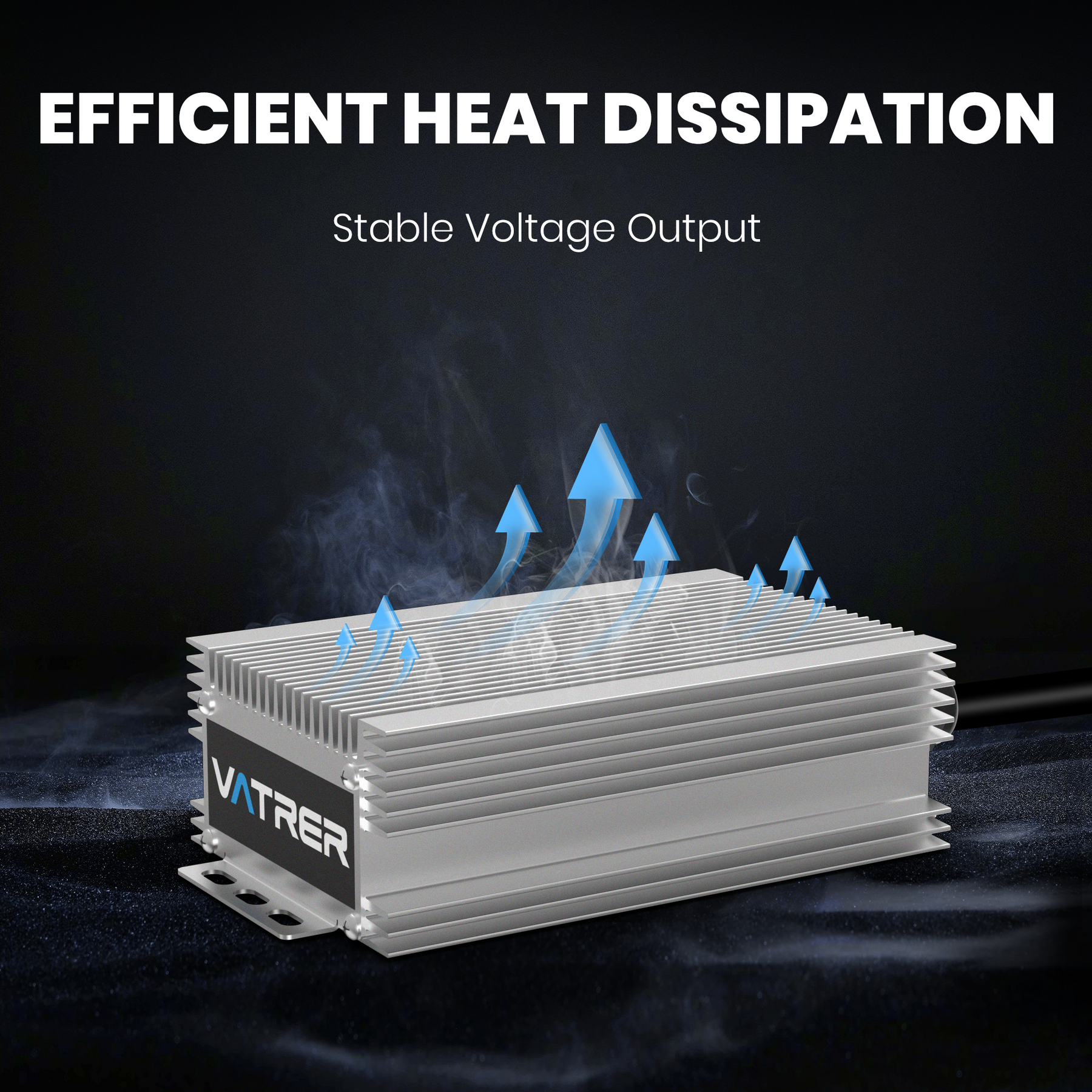

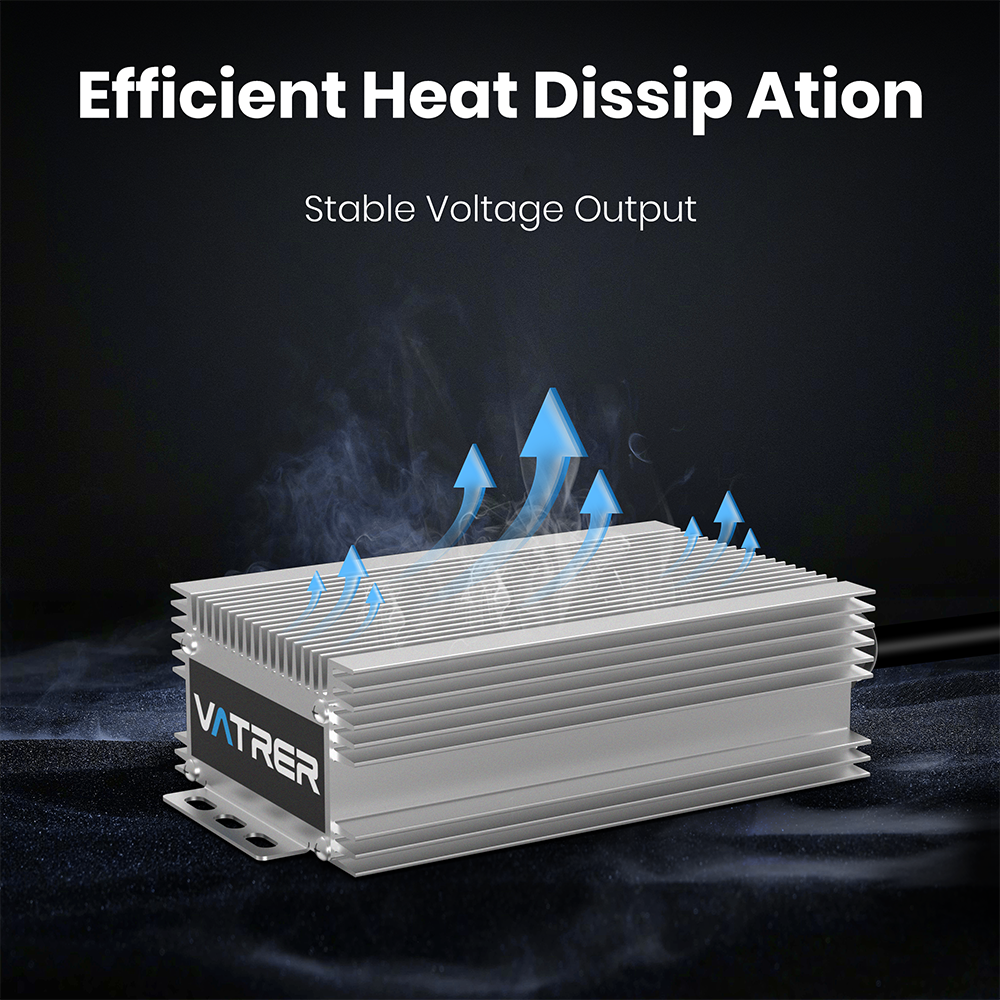

The converter's special aluminum profile casing facilitates heat dissipation, allowing for long-term operation at rated current. Its compact size and IP55 protection rating make it suitable for various environments.
Maintenance and Warranty
For optimal performance, the converter should be installed in a space with good heat dissipation. It comes with a 12-month warranty, but damages caused by incorrect wiring or human-induced actions are not covered.
Exclusion of Hawaii (HI), Alaska (AK), and Puerto Rico (PR)
Safety Certifications
Maintenance
Installation Environment: Ensure the 48v golf cart converter is installed in a space with good heat dissipation. For long-term full load or heavy load applications, it is important to maintain good contact between the bottom surface of the converter and other metal surfaces to facilitate heat conduction.

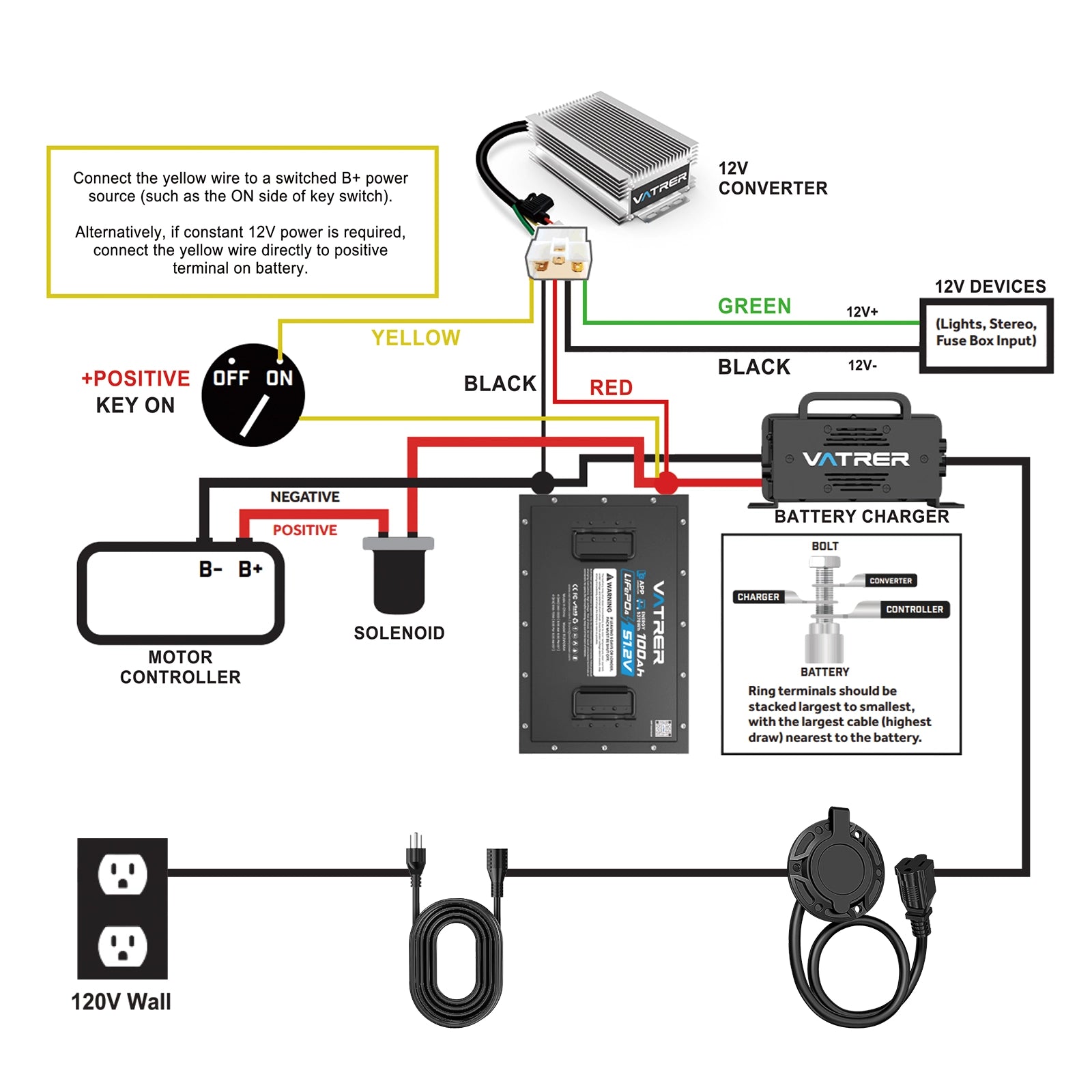

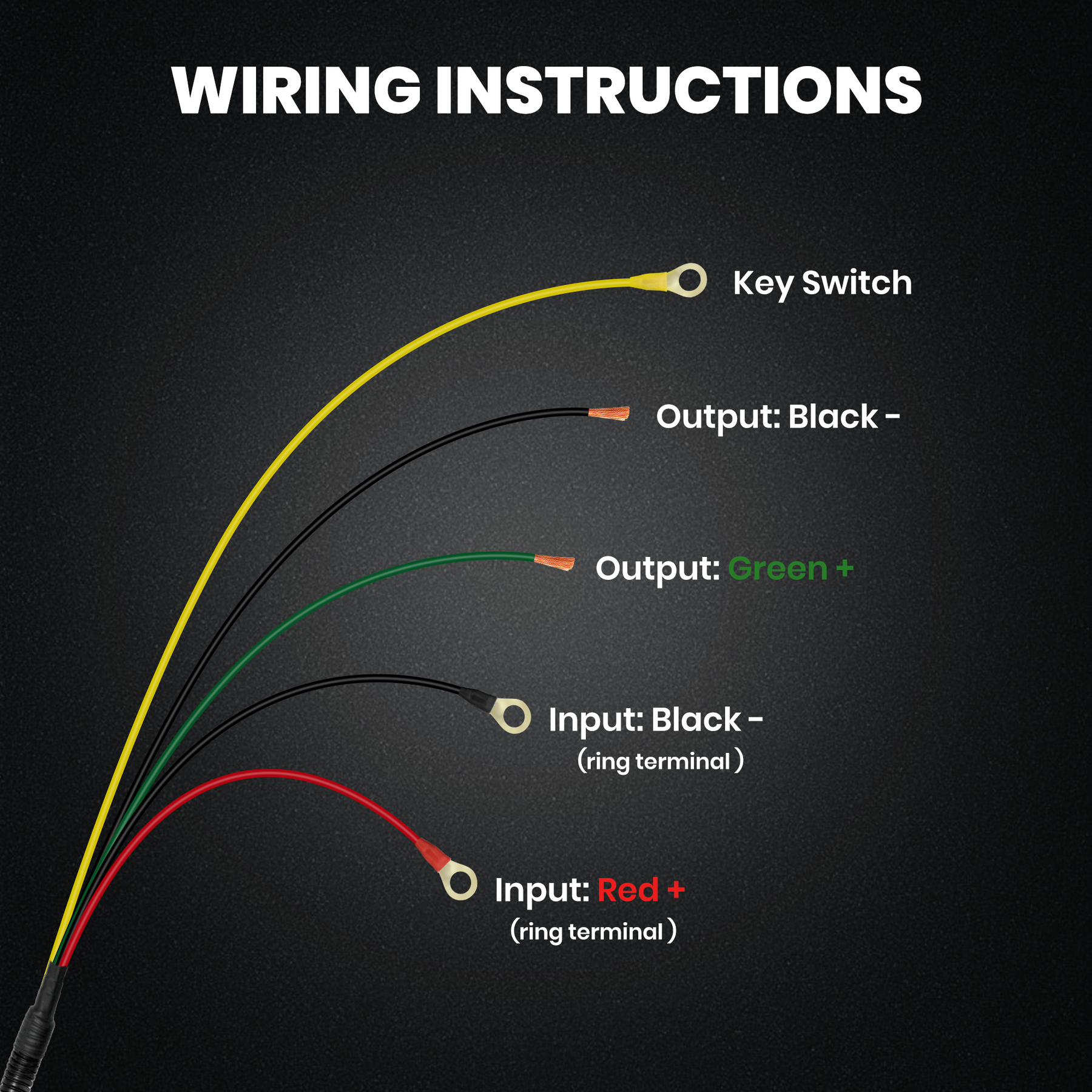

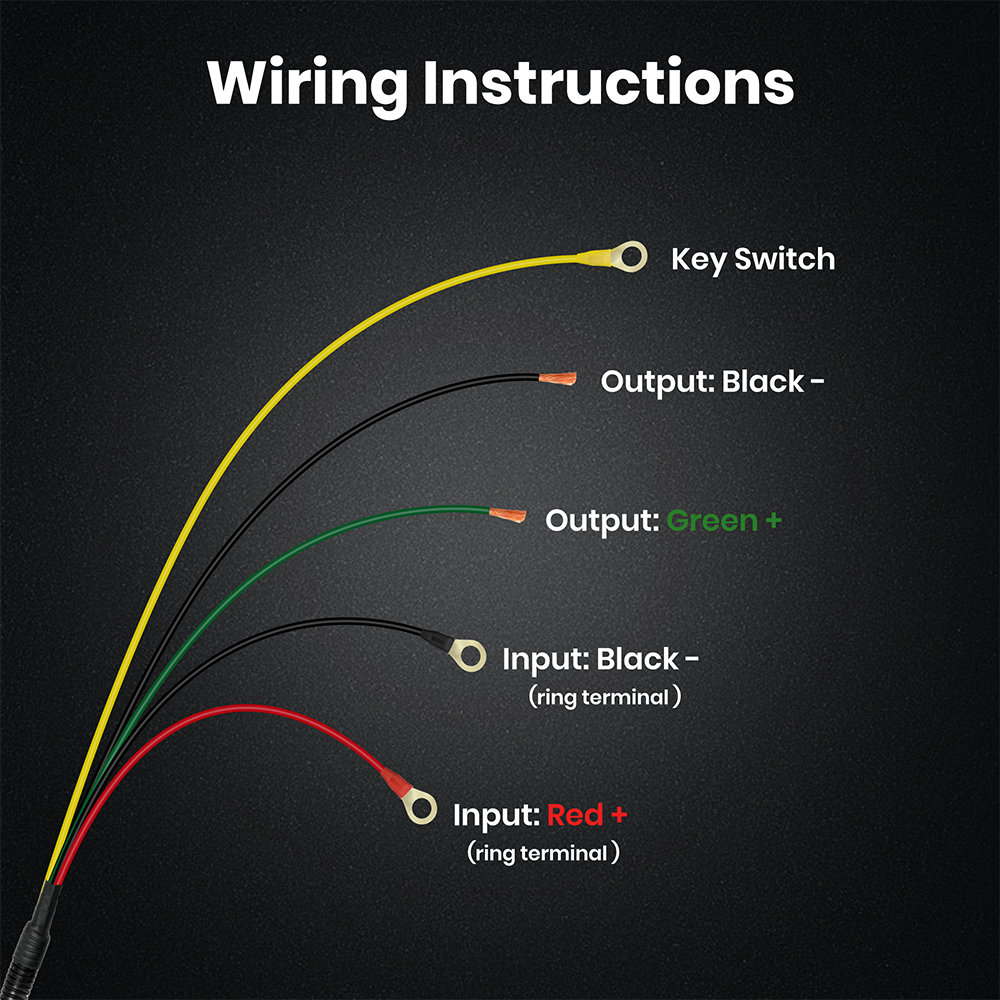

Wiring Precautions: Pay careful attention to the wiring process to avoid reversing the positive and negative power connections.
Fault Management: During use, promptly address any short-circuit or overload faults, as prolonged exposure to these conditions can damage the equipment.
Regular Cleaning: Regularly clean dust and other debris from the equipment surface to ensure effective heat dissipation.
Specification | Details |
---|---|
Model | PJ-124090 |
Battery Nominal Voltage | 72V |
Applicable Input Voltage Range | 40V~90V |
Output Voltage | 13.5V+0.5V |
Output Current | 0~25A |
Long-term Working Power | 335W |
Conversion Efficiency (Full Load) | ≥90% |
Protection Circuit | Overcurrent protection, short circuit protection, self-recovery |
Waterproof Rating | IP55 |

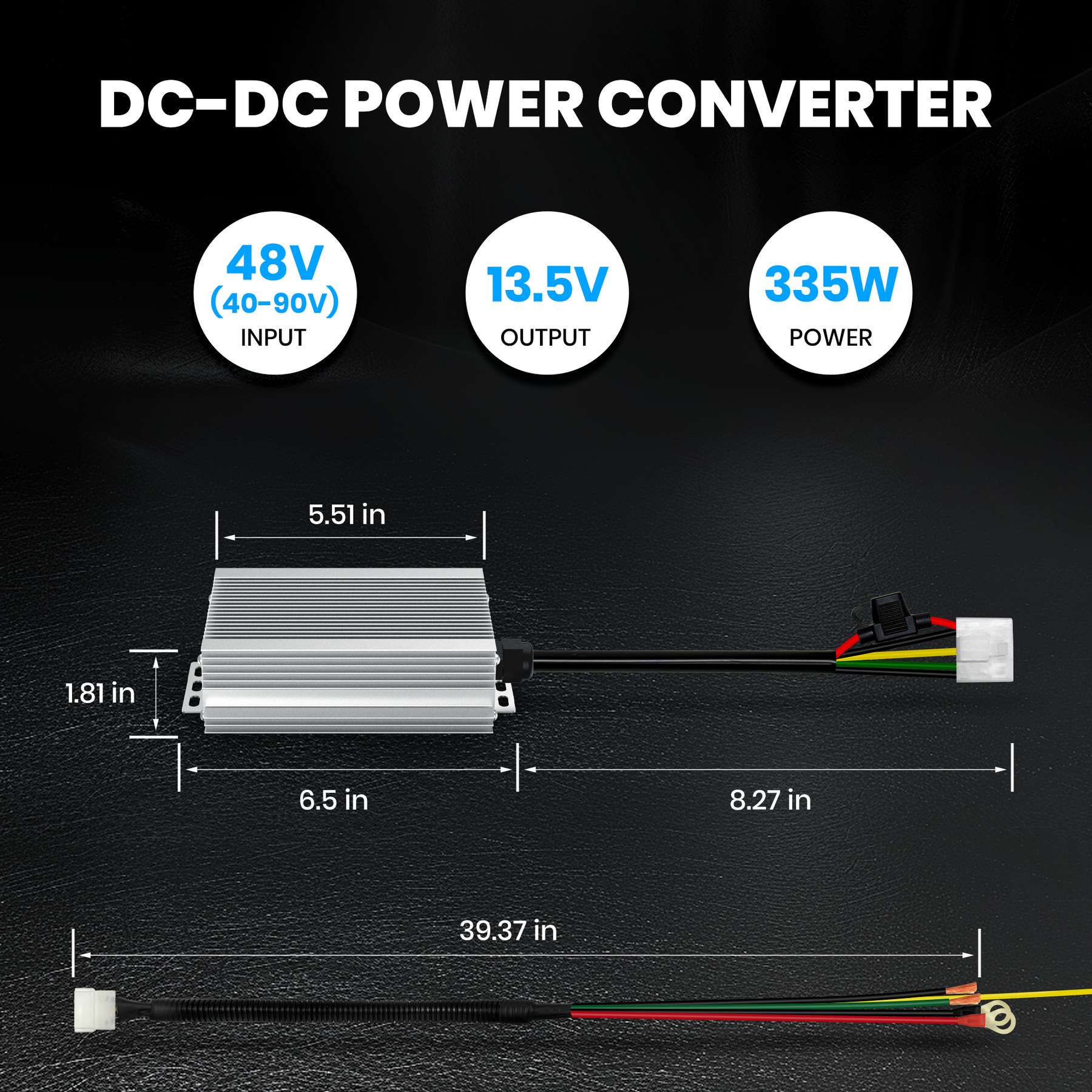

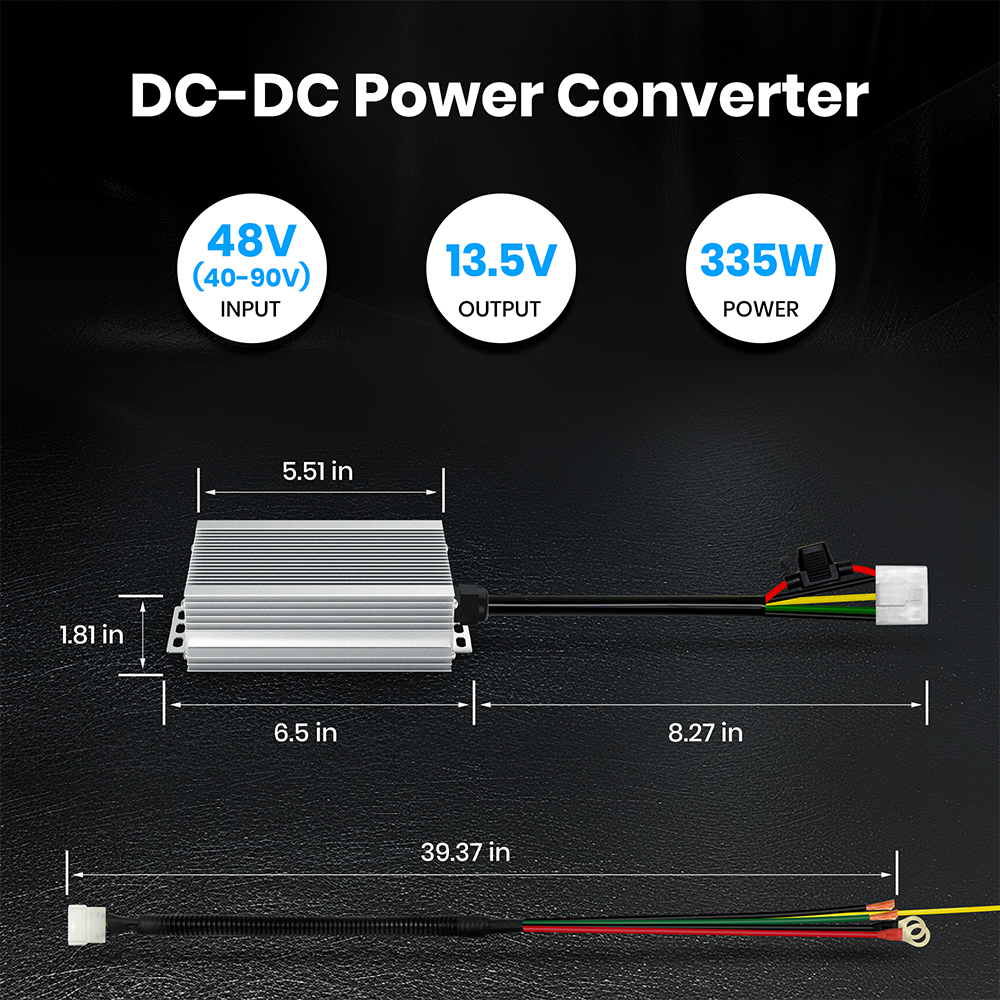

Dimensions | 140mm*92mm*46mm / 5.51*3.62*1.81 inch |
Minimum Installation Size | 165mm*92mm*46mm / 6.5*3.62*1.81 inch |
