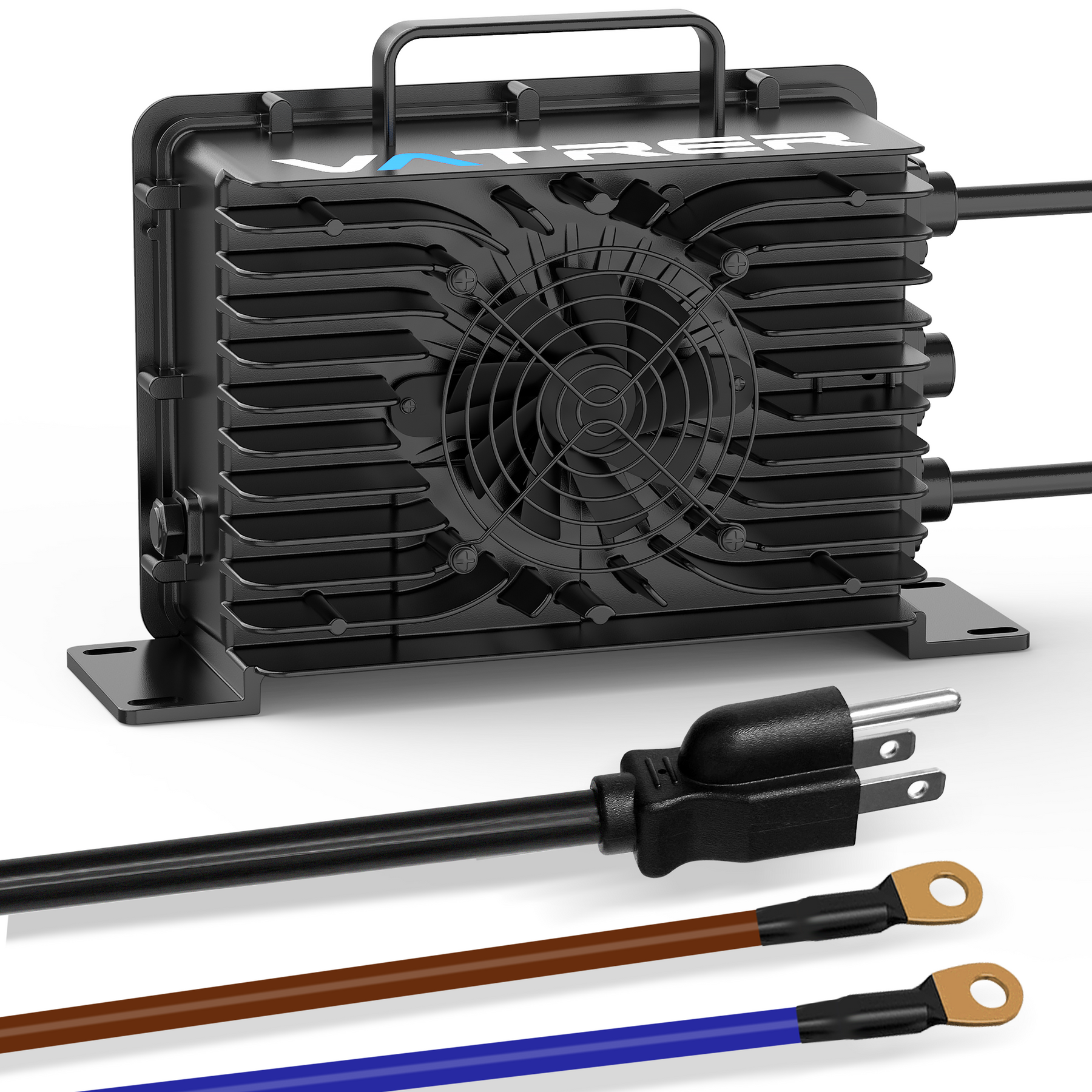

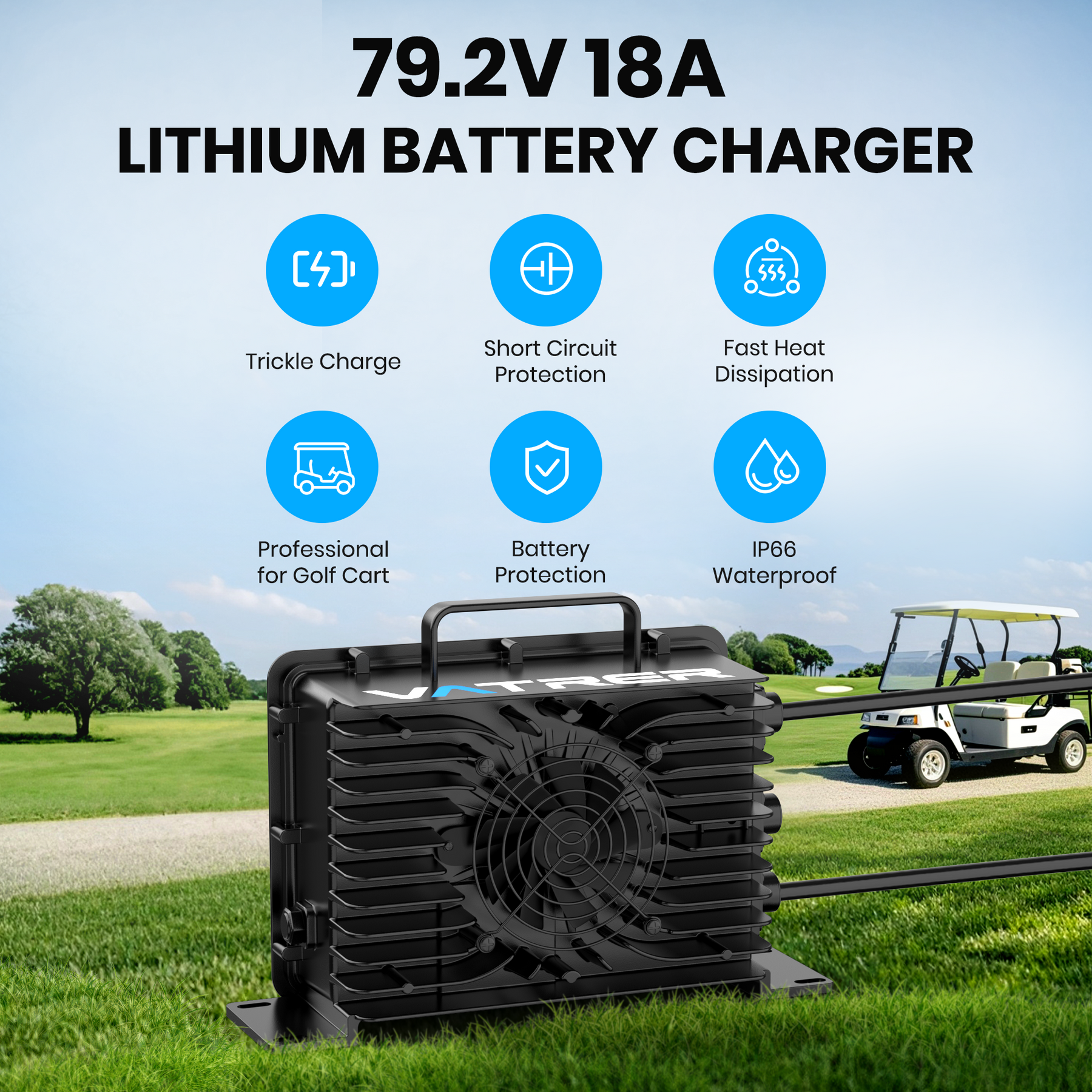

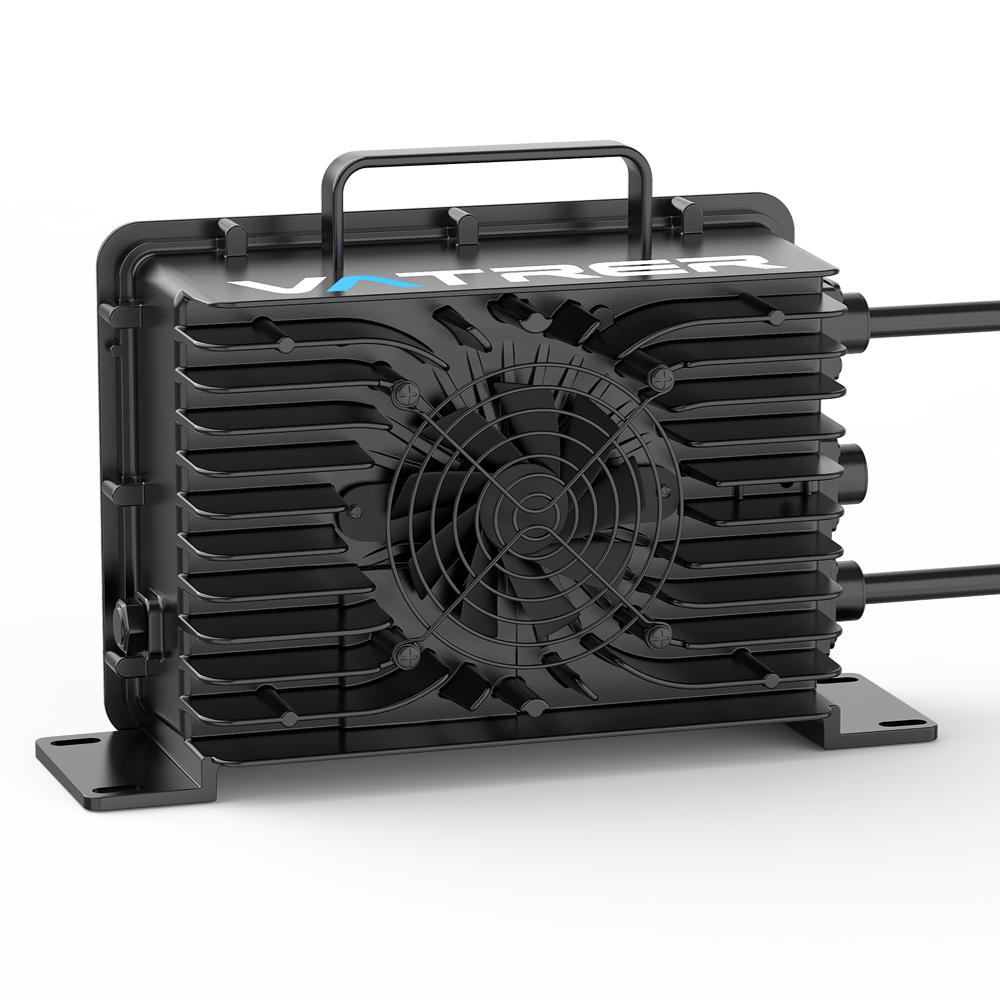

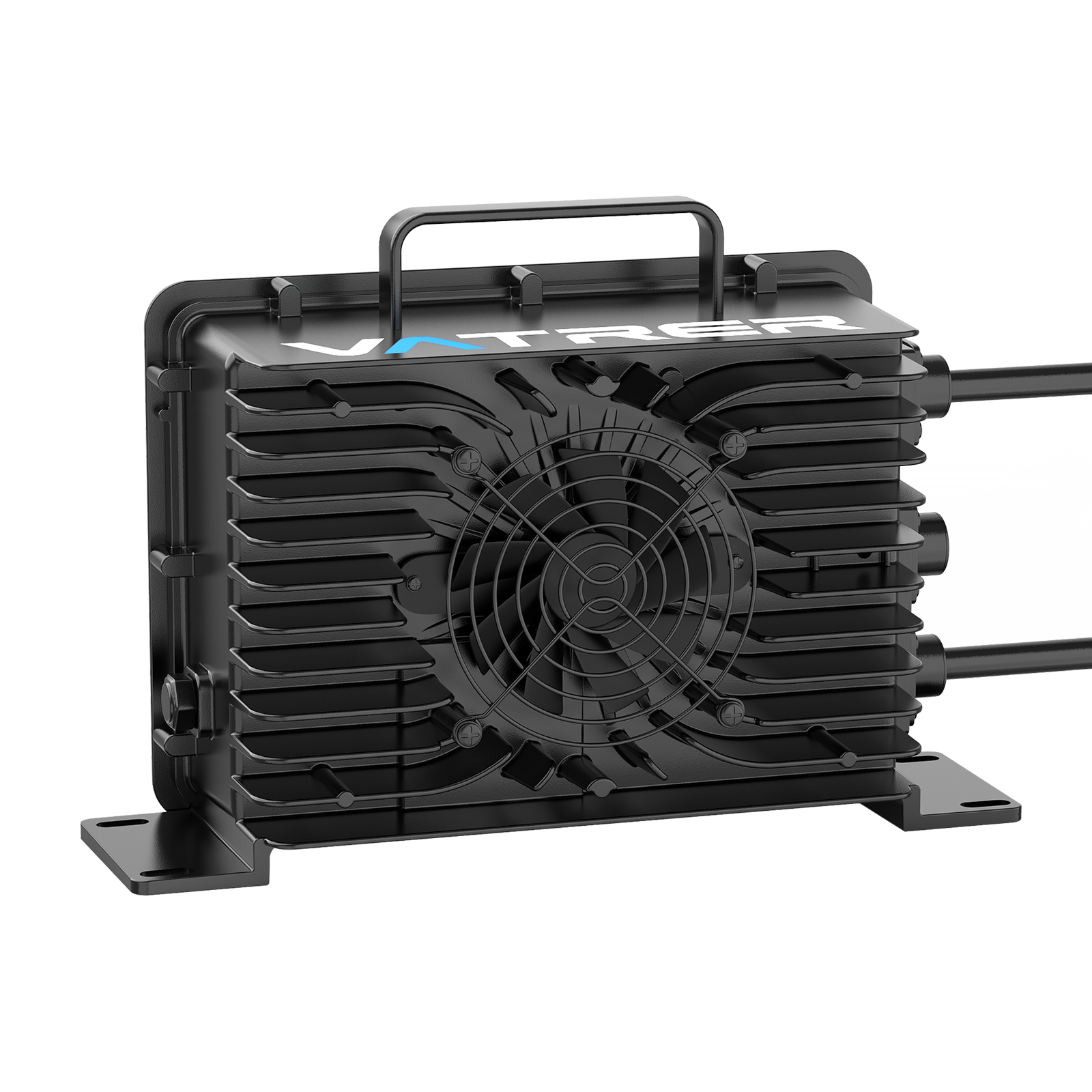

Vatrer 79.2V 18A Smart AC-DC 72V Golf Cart Lithium Battery Charger

(0)

$249.99 USD

Sku: 79.2V-18A-B
Quantity
Related Products
72V 105Ah golf cart deep cycle battery
$2,199.99 USD $3,699.99 USD

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Members earn 1 Vatrer point for every 1 dollar spent.
Delivery Method
Services and Benefits
1. Free standard shipping on all orders (No minimum). Exclusion of Hawaii (HI), Alaska (AK), and Puerto Rico (PR)
2. The delivery time is 2-7 working days, with a guaranteed 24 hour (one working day) dispatch
3. We usually use UPS/FedEx logistics services. If you purchase more than 5 items, we will discuss with you whether a free "By Truck" service is needed.
4. For purchases over $1000, we provide signature service. If not needed, please indicate in the email.
If the price drops within 30 days, we’ll refund the difference.
Return any new/unopened item within 30 days for a full refund. Return shipping is free if the issue is our fault.
We ship from the nearest warehouse (CA, GA, CHI, TX)

Estimated delivery between Oct 17 and Oct 22. Order within .

Introduction

Thank you for choosing the VATRER 79.2V Golf Cart LifePO4 Battery Charger, model E22-79.2V18A. This high-quality, economic charger is designed to meet your charging needs with efficiency and reliability.

Key Features

Advanced Charging Program: The charger utilizes a three-step charging process: constant current, constant voltage, and float charging. This ensures your battery is charged optimally and safely.

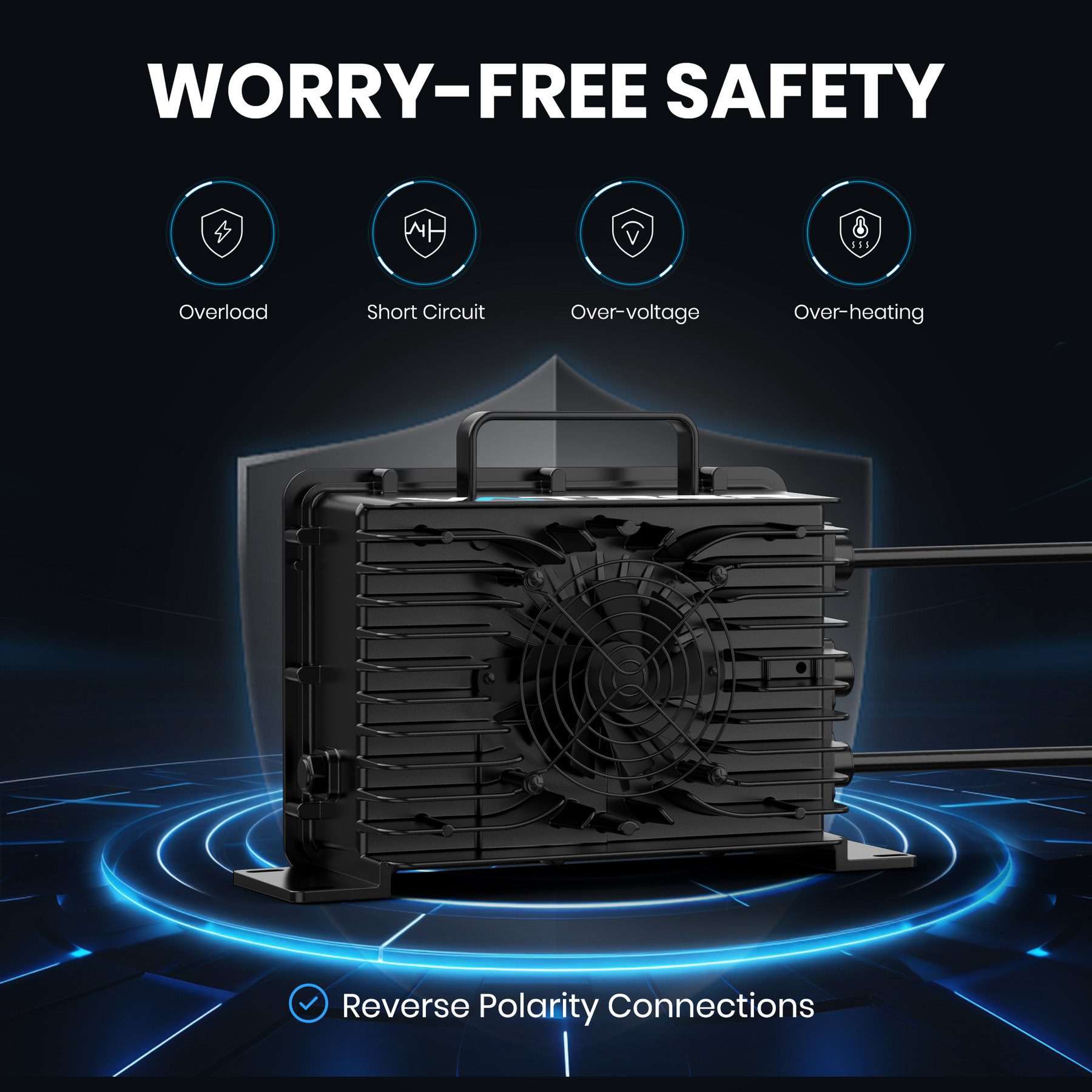

Comprehensive Protection: Equipped with safeguards against overload, over-voltage, over-heating, short circuit, and reverse polarity connections, this charger prioritizes safety.

Specifications

DC Output: Maximum voltage of 79.2V and current of 18A, delivering a powerful 1400W output.

AC Input: Compatible with a wide voltage range of 90-260VAC, and operates at a nominal frequency of 50/60Hz.

Mechanical and Environmental

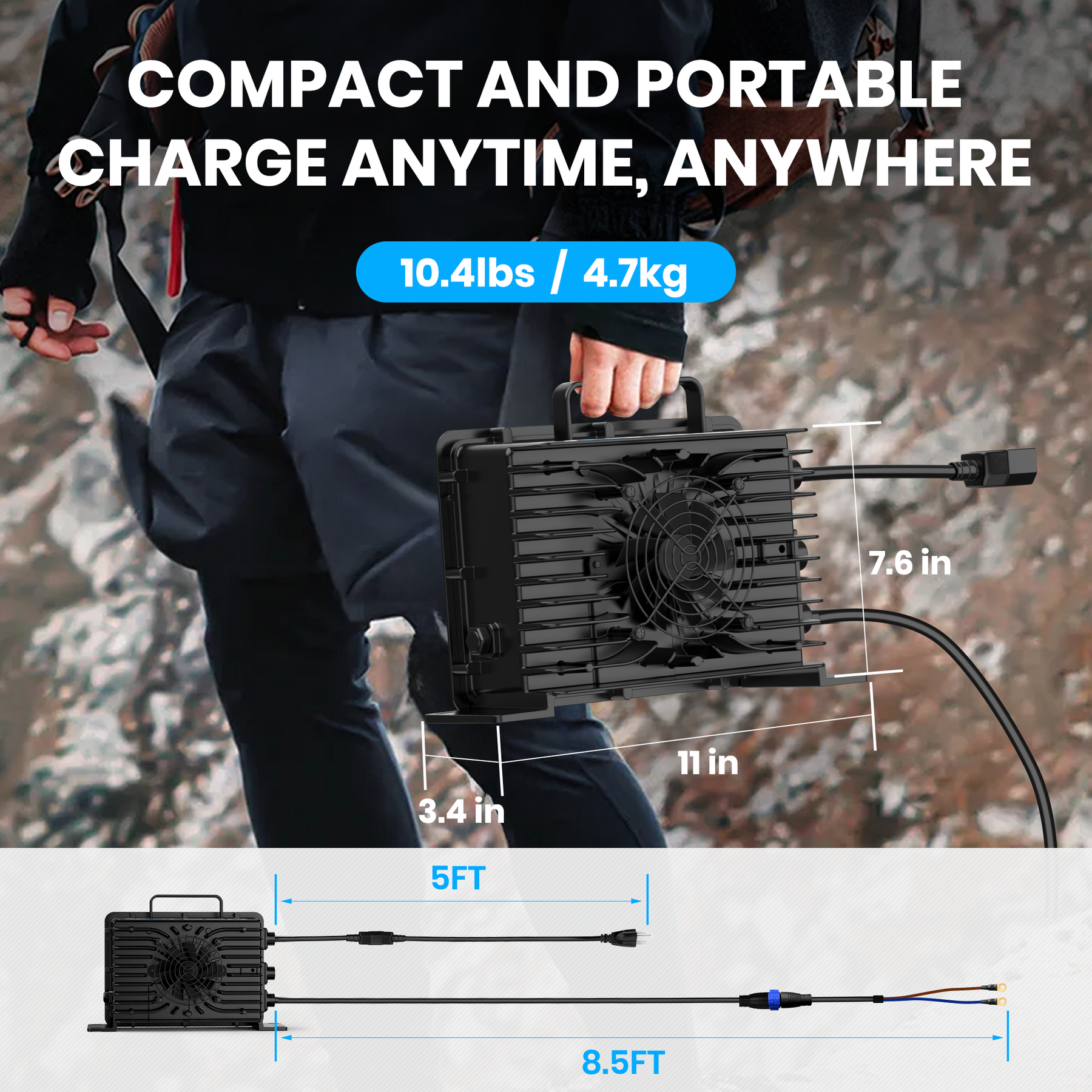

Dimensions and Weight: Compact size of 27.9x19.5x8.8 cm and a weight of 10.4 lbs, making it easy to handle and store.

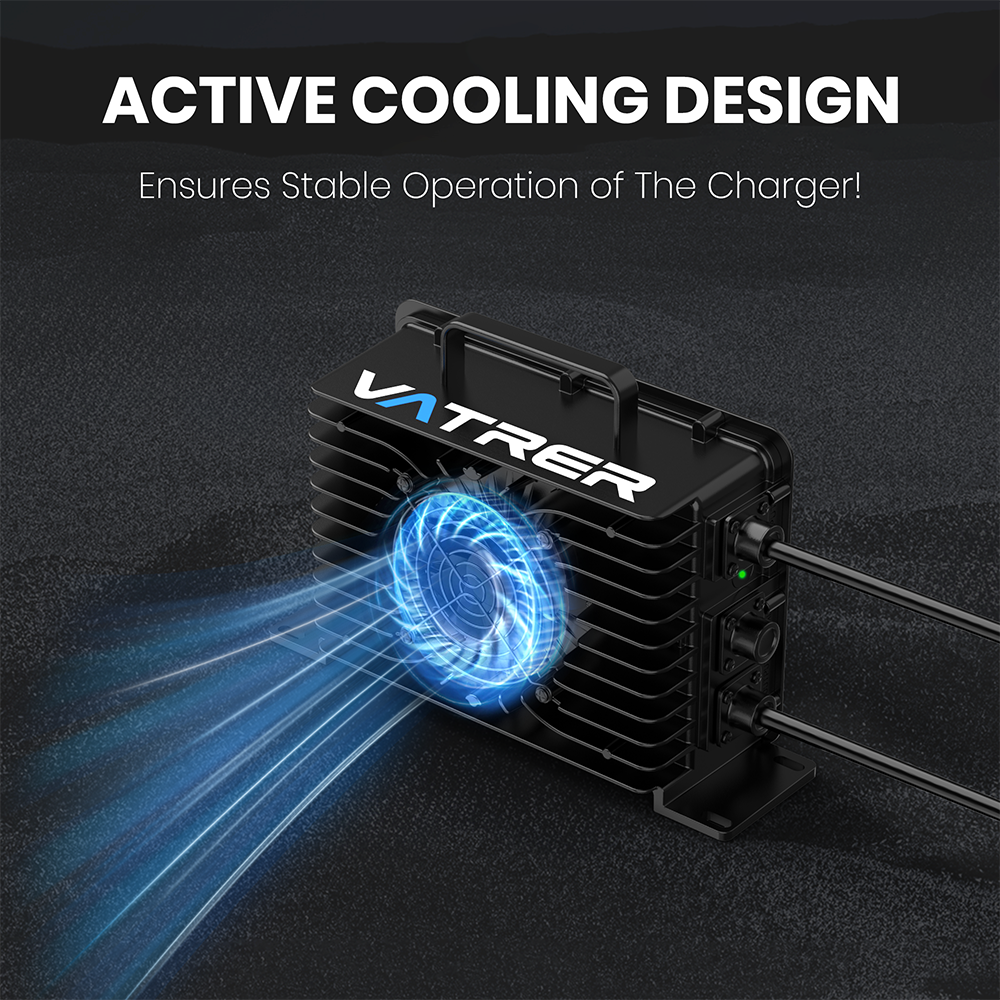

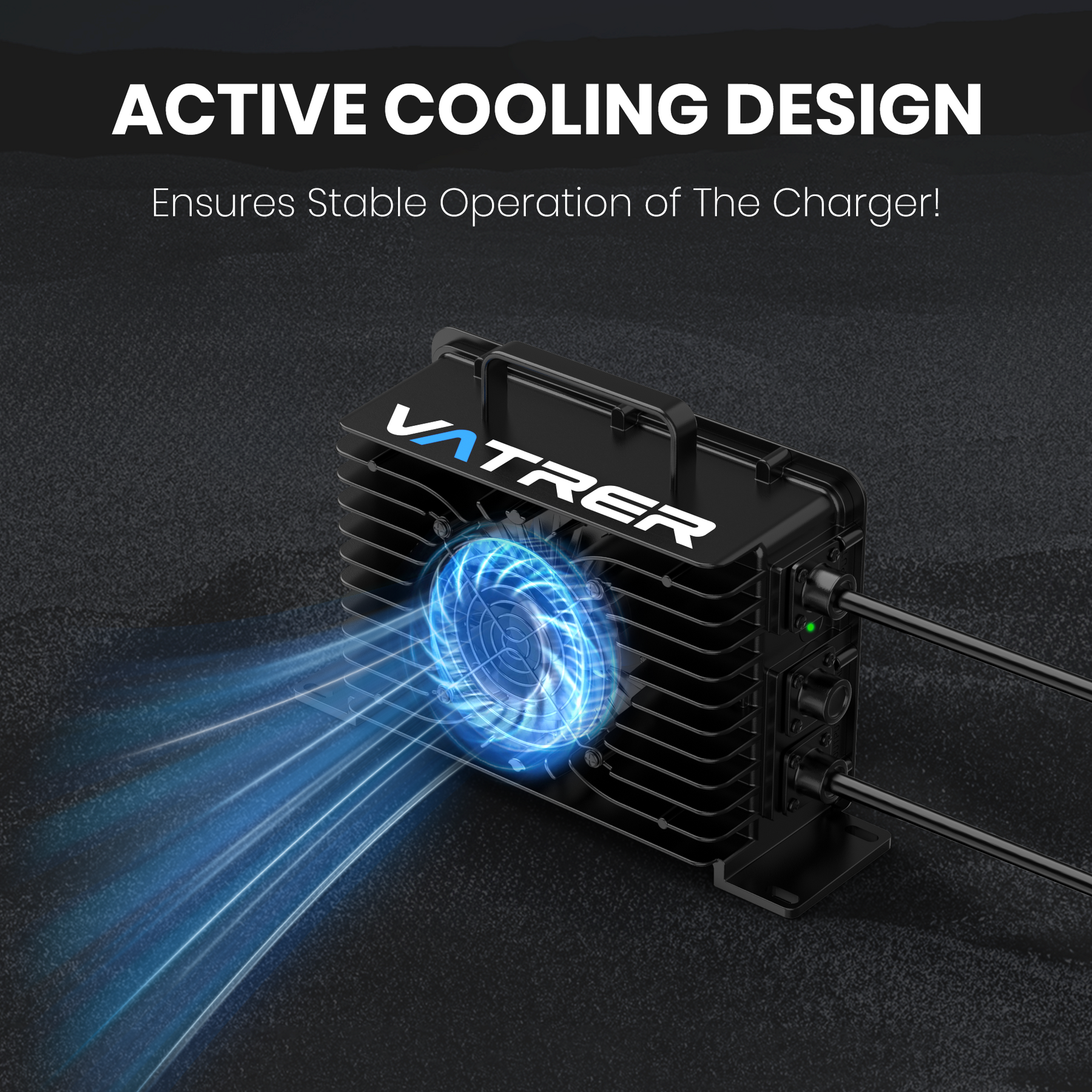

Cooling and Enclosure: Features active cooling with a fan and an IP66 enclosure, ensuring durability and performance in various conditions.

Temperature Range: Operates efficiently between -20℃ to +65℃, with storage capabilities from -40°C to +85℃.

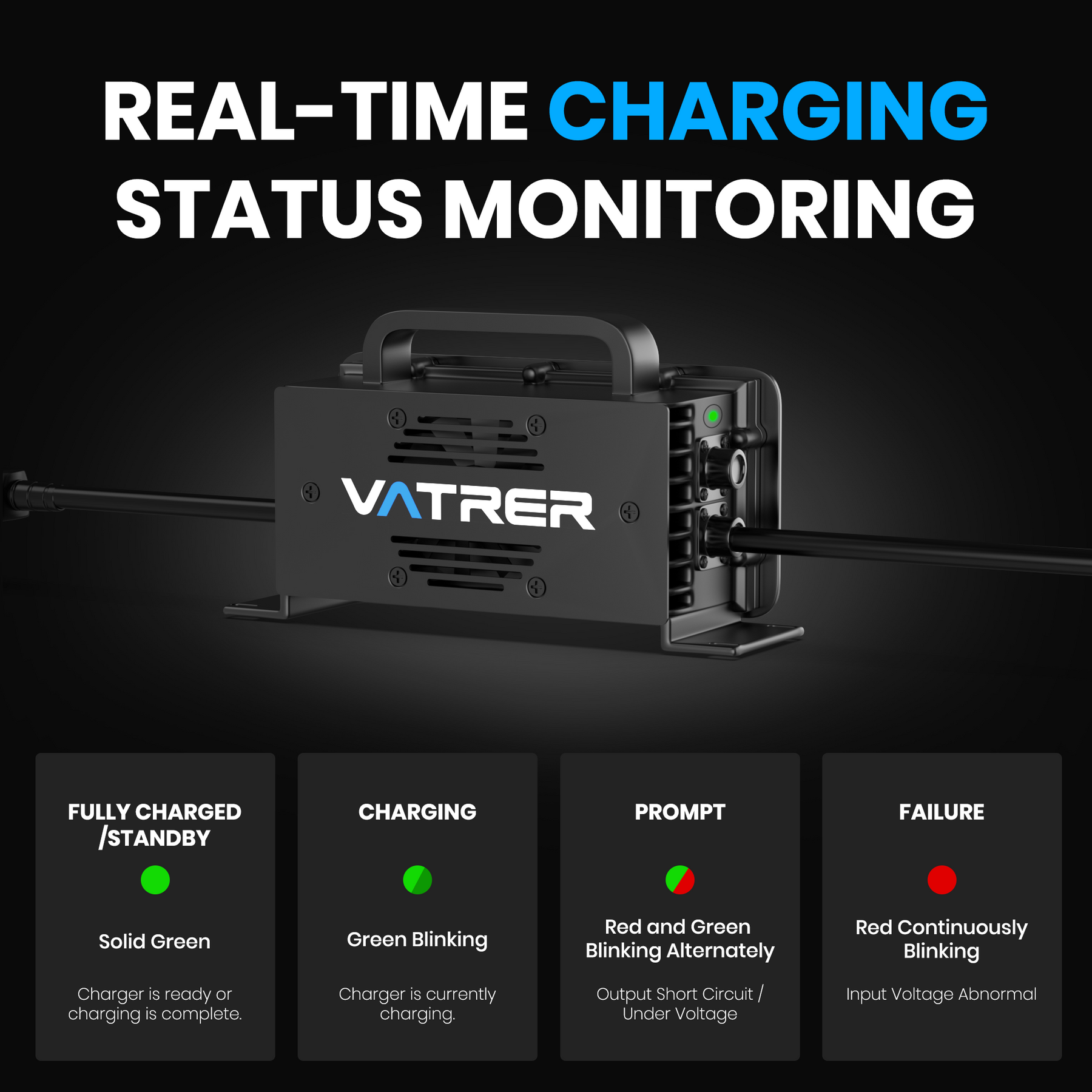

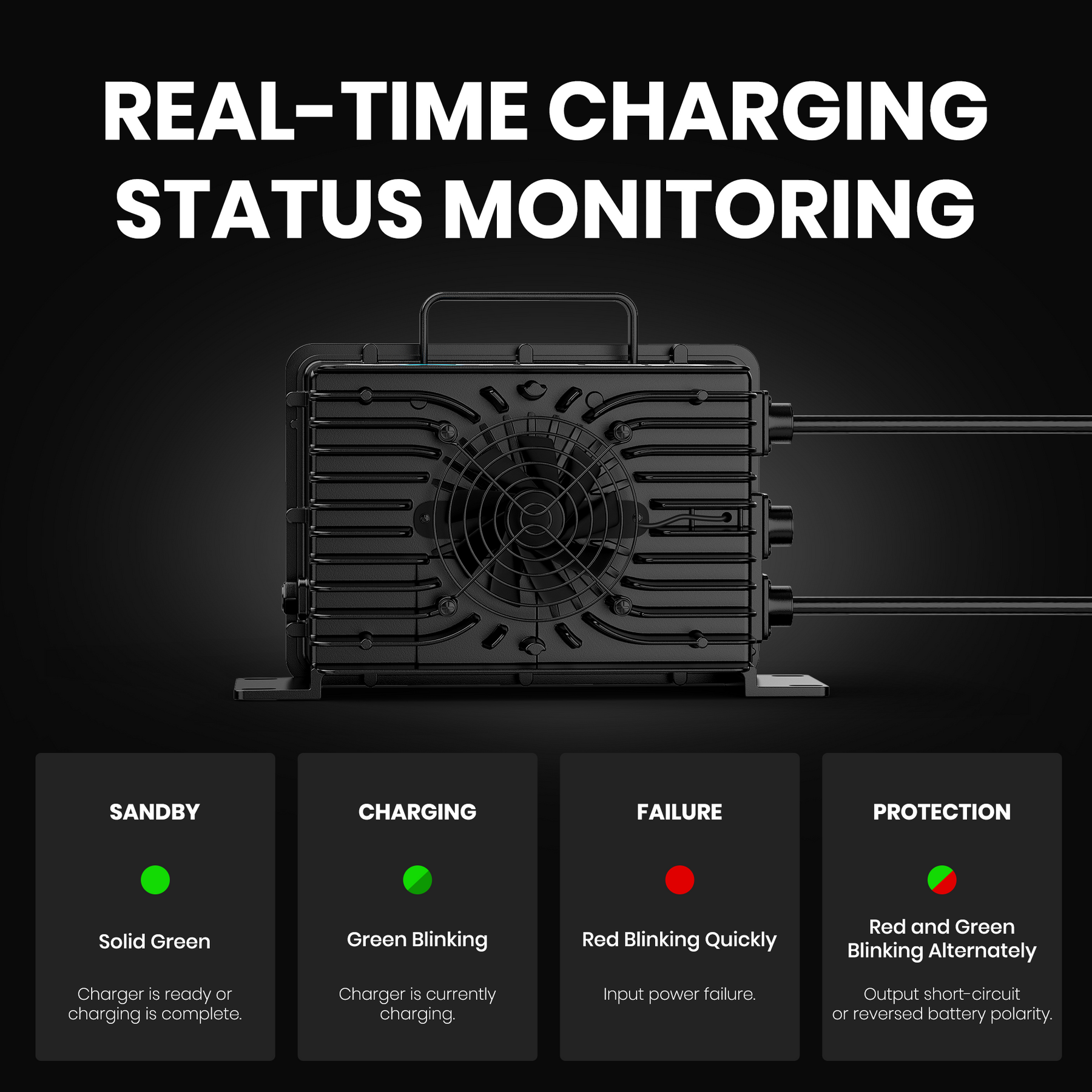

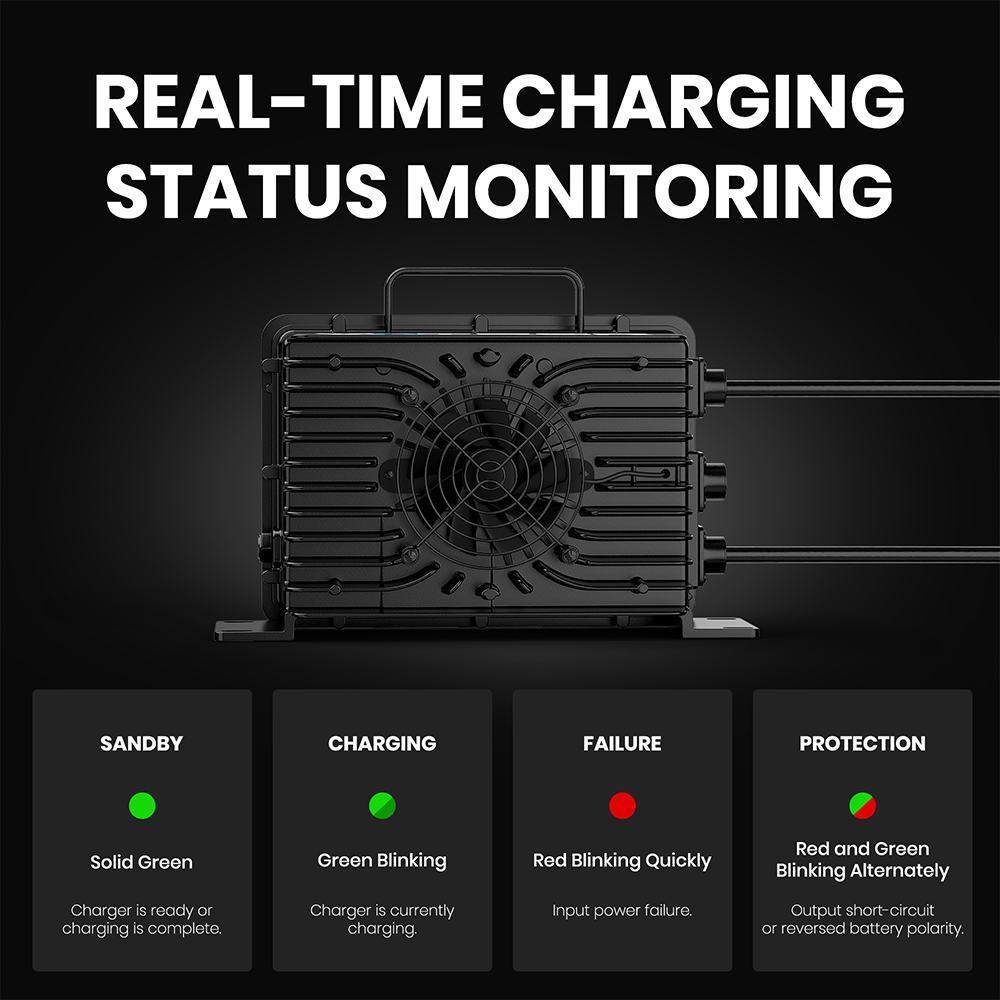

LED Status Indicators

Common Indicator Light Status
Function Item Indicator Light Status
1 Fully Charged/Completed/Standby (Green light always on)
2 Charging (Green light continuously slow flashing).
3 Input Voltage Abnormal (Red light continuously flashing).
4 Output Short Circuit/Undervoltage (Red-Green Red-Green continuously flashing).
5 Output Reverse Connection (Red-Red-Green, 2 red 1 green continuously flashing).
6 Charger Body Overheating (Red-Red, 2 red continuously flashing).
7 Output Overcurrent (Red-Red-Red, 3 red continuously flashing).
8 Output Overvoltage (Red-Red-Red-Red, 4 red continuously flashing).

Safety Notes

  • Never leave the charger unattended while connected to power.
  • Ensure proper ventilation and avoid placing the charger on flammable surfaces.
  • Always maintain correct battery polarity and avoid short circuits.

TECH SPECS

Specifications Table

Specification Details
DC Output
Maximum DC output voltage 79.2V
Maximum DC output current 18A
Maximum DC output power 1400W
Battery type Lithium
AC Input
AC input voltage range 90-260V AC
Nominal AC input voltage 100-240V AC
Nominal AC input frequency 50/60Hz
Maximum AC input current 16A

Mechanical and Environmental Table

Specification Details
Mechanical
Dimensions 27.9×19.5×8.8cm (11×7.6x3.4")
Weight 10.4 lbs (4.7 kg)
Cooling Active cooling with fan
Environmental
Enclosure IP66
Humidity 5%-95%
Operating temperature -20℃ to +65℃ (-4ºF to 149°F)
Derated at >40℃ (104°F)
Storage temperature -40℃ to +85℃ (-40°F to 185°F)

LED Status Indicators Table

Common Indicator Light Status
Function Item Indicator Light Status
1 Fully Charged/Completed/Standby (Green light always on)
2 Charging (Green light continuously slow flashing).
3 Input Voltage Abnormal (Red light continuously flashing).
4 Output Short Circuit/Undervoltage (Red-Green Red-Green continuously flashing).
5 Output Reverse Connection (Red-Red-Green, 2 red 1 green continuously flashing).
6 Charger Body Overheating (Red-Red, 2 red continuously flashing).
7 Output Overcurrent (Red-Red-Red, 3 red continuously flashing).
8 Output Overvoltage (Red-Red-Red-Red, 4 red continuously flashing).

FAQS

There are no relevant FAQs in this product
