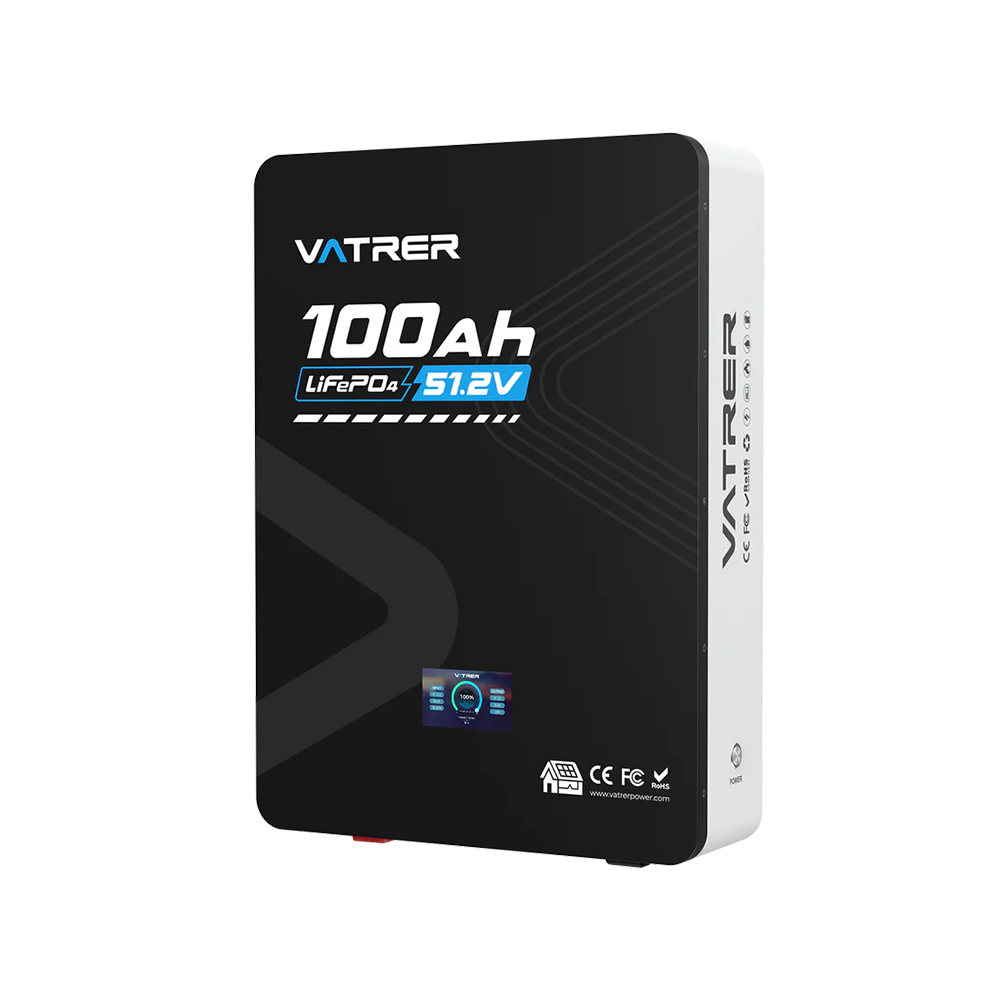

Vatrer 48V (51.2V) 100Ah Wall-Mounted Lithium Solar Battery
Vatrer 48V (51.2V) 100Ah Wall-Mounted Lithium Solar Battery

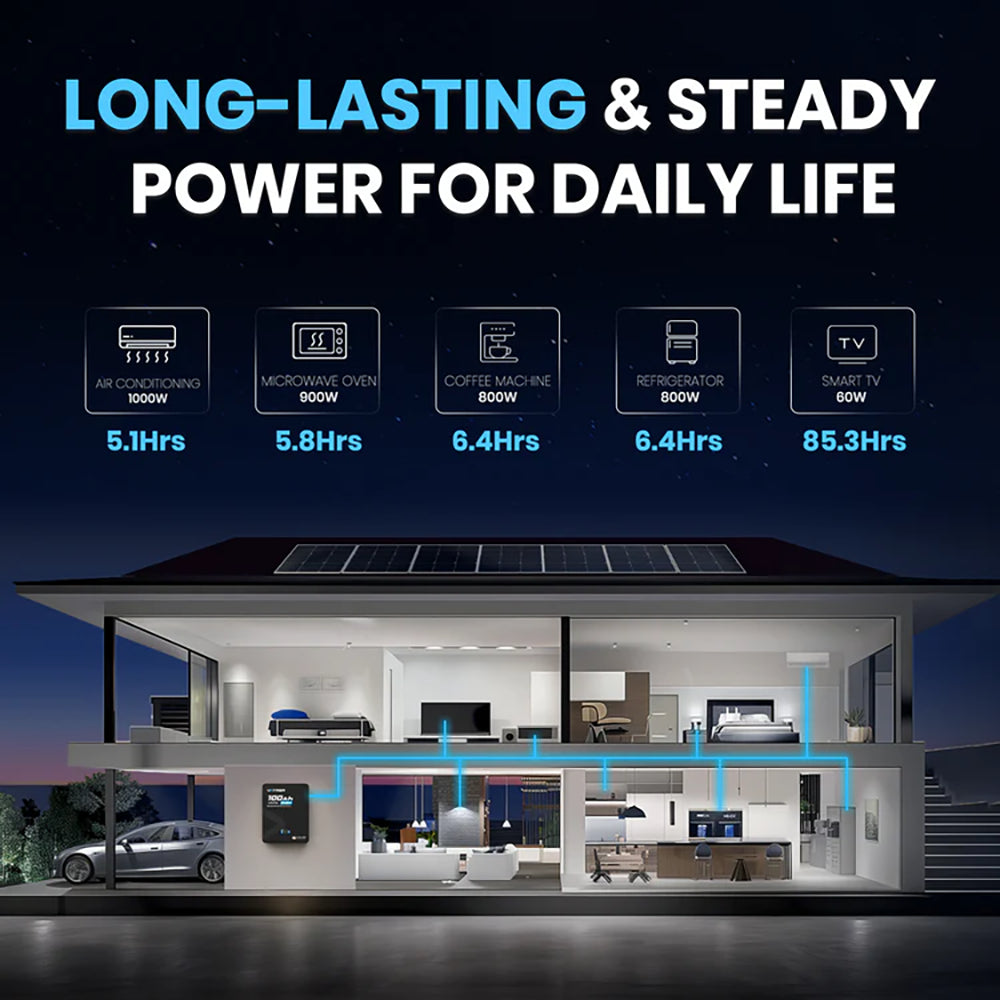

- High Capacity Storage: Offers 5.12kWh of energy storage, powering a 1000W air conditioner for 5.1 hours or a 60W TV for 85.3 hours.
- Long Cycle Life: Delivers over 6,000 charge cycles at 100% DOD, outlasting lead-acid batteries by three times.
- Impressive Load Power: Provides 5.12kW per unit, scalable to 153.6kW with 30 units in parallel for larger homes.
- Smart Display Feature: Includes a screen display showing real-time data and inverter compatibility, plus Bluetooth monitoring for convenience.
- Compact Dimensions: Measures 25.60 x 18.5 x 5.43 inches, saving space with a wall-mounted design.
- Wide Temperature Range: Operates from -4°F to 140°F / -20°C to 60°C for discharge and 32°F to 122°F / 0°C to 50°C for charging, with low-temp cut-off at -4°F to ±7.2°F / -20°C to ±4°C.
- Expandable Storage: Supports up to 153.6kWh total capacity by connecting 30 units, ideal for growing energy needs.
Estimated delivery between Oct 29 and Nov 03. Order within .
Unleash the Power of the Vatrer 48V 100Ah Solar Battery
The Vatrer 48V (51.2V) 100Ah lithium battery, designed with LiFePO4 technology, delivers a steady 5.12kWh of power. Whether you need it as a backup power source during a power outage or to power your RV, this wall-mounted battery seamlessly integrates with your solar panels to meet your needs.

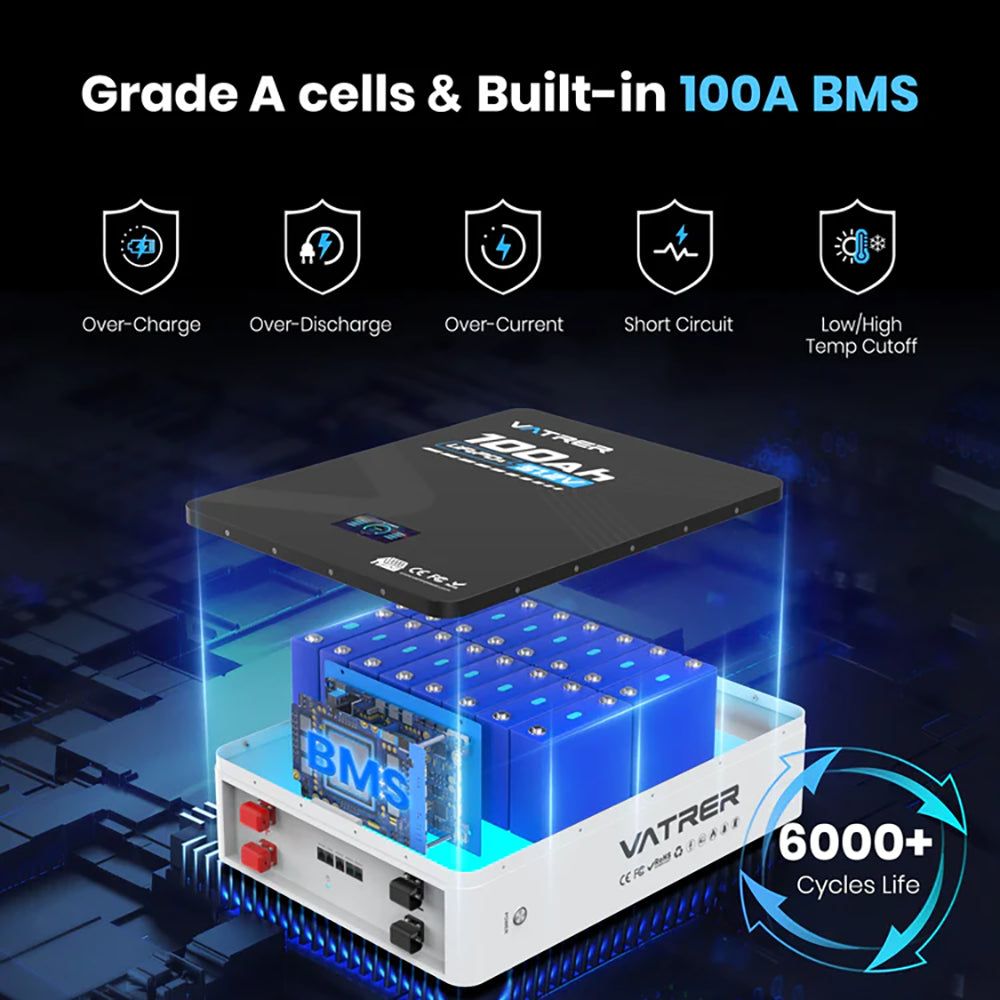

Reliable Performance with Advanced Cell Technology and Safety
The Vatrer 48V (51.2V) 100Ah wall-mounted lithium battery combines high-quality prismatic LiFePO4 cells with a smart 100A BMS to deliver dependable performance and safety. The prismatic LiFePO4 cells offer a higher energy density and sturdy build, ensuring efficient power storage for your solar system while aiding heat management and providing inherent safety benefits. Paired with the built-in 100A BMS, which protects against overcharging, over-discharging, overcurrent, short circuits, and high or low temperatures, this setup supports a continuous 100A charge and discharge rate for consistent operation. Together, these features contribute to a long-lasting power solution, with the battery offering over 6000 charge cycles at 100% depth of discharge (DOD)—three times the lifespan of traditional lead-acid batteries—making it a cost-effective and durable choice for years to come with minimal maintenance.
Cold Weather Protection with Low-Temp Cut-Off
If you live in an area with very cold winter weather, don't worry! This solar battery includes a low-temperature cut-off feature to protect it during cold weather. It halts charging at 0°C to ±4°C (32°F to ±7.2°F) and discharging at -20°C to ±4°C (-4°F to ±7.2°F), safeguarding battery life in cold environments. This makes it a solid choice for off-grid homes or RV travel in colder climates.

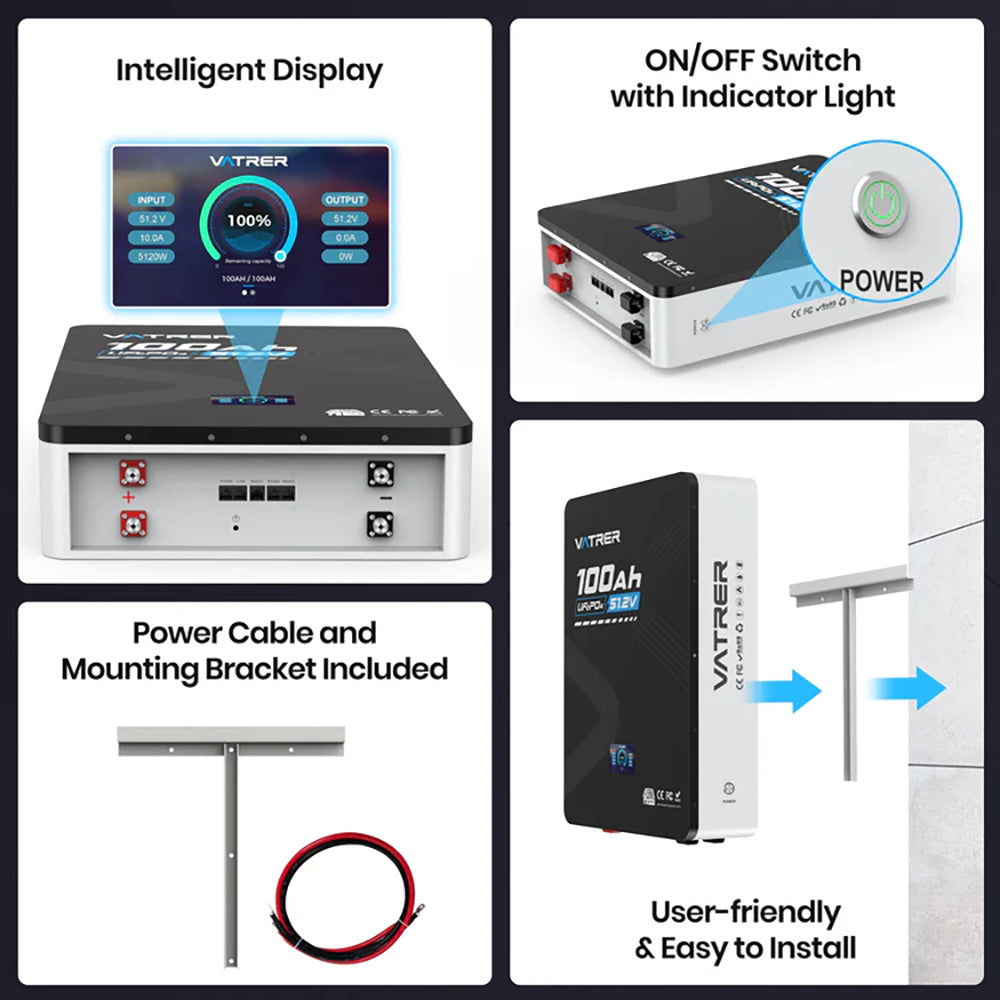

Smart Display for Easy Monitoring
The Vatrer battery comes with a screen display that makes monitoring a breeze. The first page shows real-time data like current, voltage, and energy levels, while the second page lists compatible inverter brands. Paired with an ON/OFF switch and indicator light, it's user-friendly. You can also check it via Bluetooth on your phone, adding convenience to your setup.

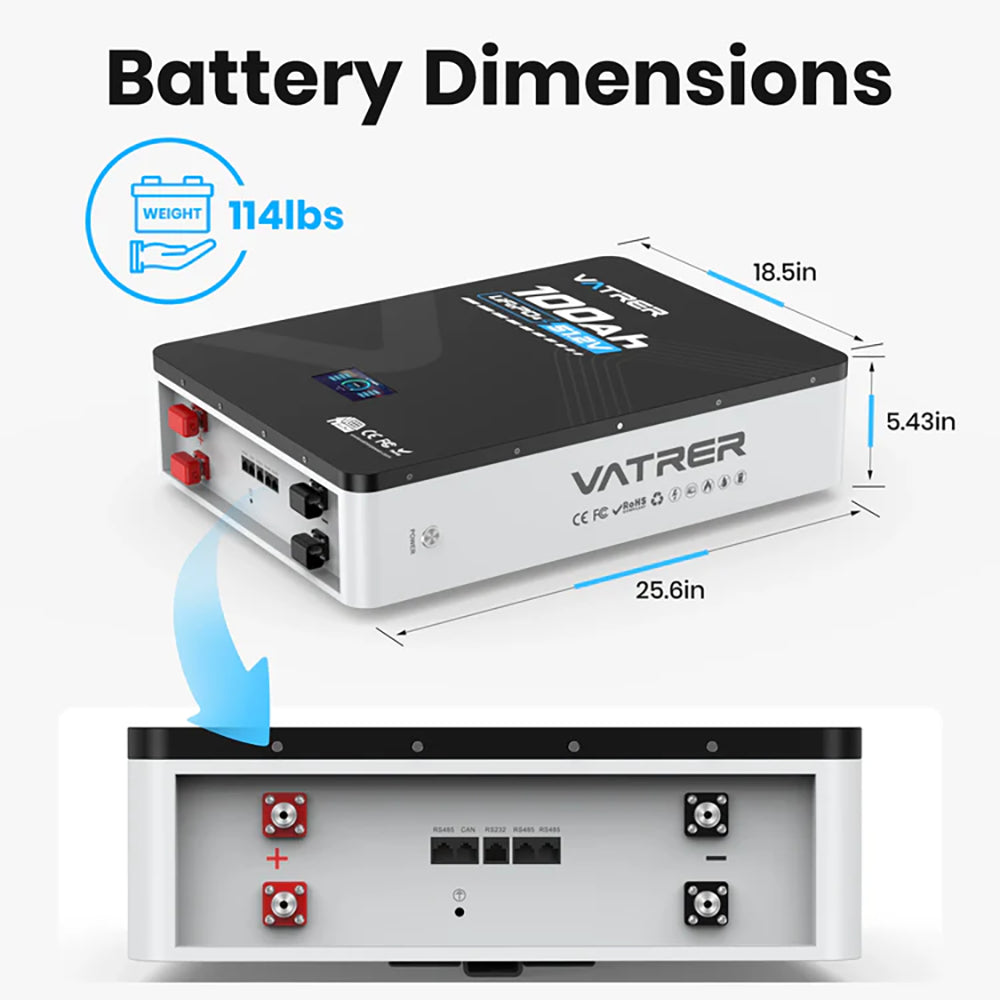

Compact And Lightweight Design For Easy Installation
The Vatrer 100Ah lithium solar battery's compact and lightweight design makes installation and integration into your solar energy system a breeze. Measuring just 25.60 x 18.5 x 5.43 inches, this wall-mounted battery saves valuable space in your home, garage, or outdoor installation, and includes a mounting bracket, making it easy even for novice installers. Weighing only 113.63 lbs (60% lighter than a lead-acid battery), its lightweight construction reduces pressure on the mounting surface, making it easy to operate for both DIY enthusiasts and professional solar energy storage system installers.

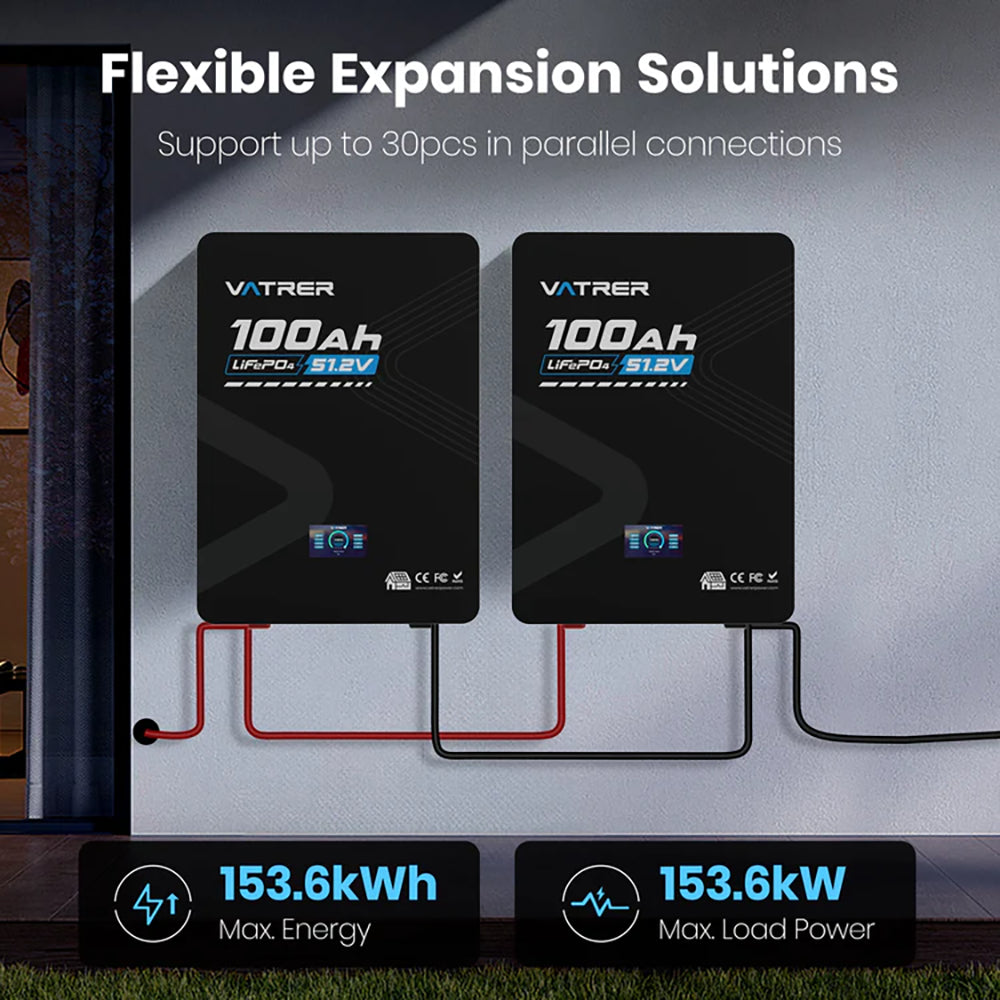

Expandable Capacity for Evolving Energy Demands
The 100Ah lithium solar battery offers a flexible expansion solution to meet your growing energy needs, making it a smart choice for long-term solar energy storage. With the ability to connect up to 30 units in parallel, this 100Ah lithium battery can scale your total capacity to an impressive 153.6kWh, accommodating everything from a small home setup to a larger off-grid system or RV travel configuration. The parallel connection process is designed with user-friendliness in mind, featuring clear instructions and compatibility with existing solar panel systems, allowing even those with limited technical expertise to expand their power source effectively. This scalability ensures your battery backup remains adaptable as your energy consumption or household size increases, providing a reliable and future-proof investment.
Powering Your Home with Versatile Load Capacity
The Vatrer 48V 100Ah wall-mounted battery delivers reliable power for your daily needs with a robust load capacity. Offering a maximum of 5.12kW on its own and up to 153.6kW when connecting 30 units in parallel, it’s well-suited to run multiple household appliances, from fridges to air conditioners. This 100Ah lithium battery shines in practical use, supporting a 1000W air conditioner for 5.1 hours, a 60W TV for 85.3 hours, a 900W microwave for 5.8 hours, or an 800W coffee maker and refrigerator each for 6.4 hours. Whether you’re managing a blackout or living off-grid, this solar battery provides the flexibility and endurance to keep your home running smoothly.
All-in-One Solution for Diverse Living Needs
The Vatrer 48V (51.2V) 100Ah wall-mounted lithium battery comes as a complete package, equipped with power cables and mounting brackets to simplify installation for your solar system, whether at home or on the go. This all-in-one design saves you time and effort, making it accessible for both DIY enthusiasts and professionals setting up a battery backup. Beyond ease of use, this 100Ah lithium battery adapts to various lifestyles, supporting solar energy storage for off-grid cabins, RV travel, boats, and providing reliable power during outages. Its durable build ensures it meets the diverse demands of different settings, offering a versatile power source tailored to your unique needs.

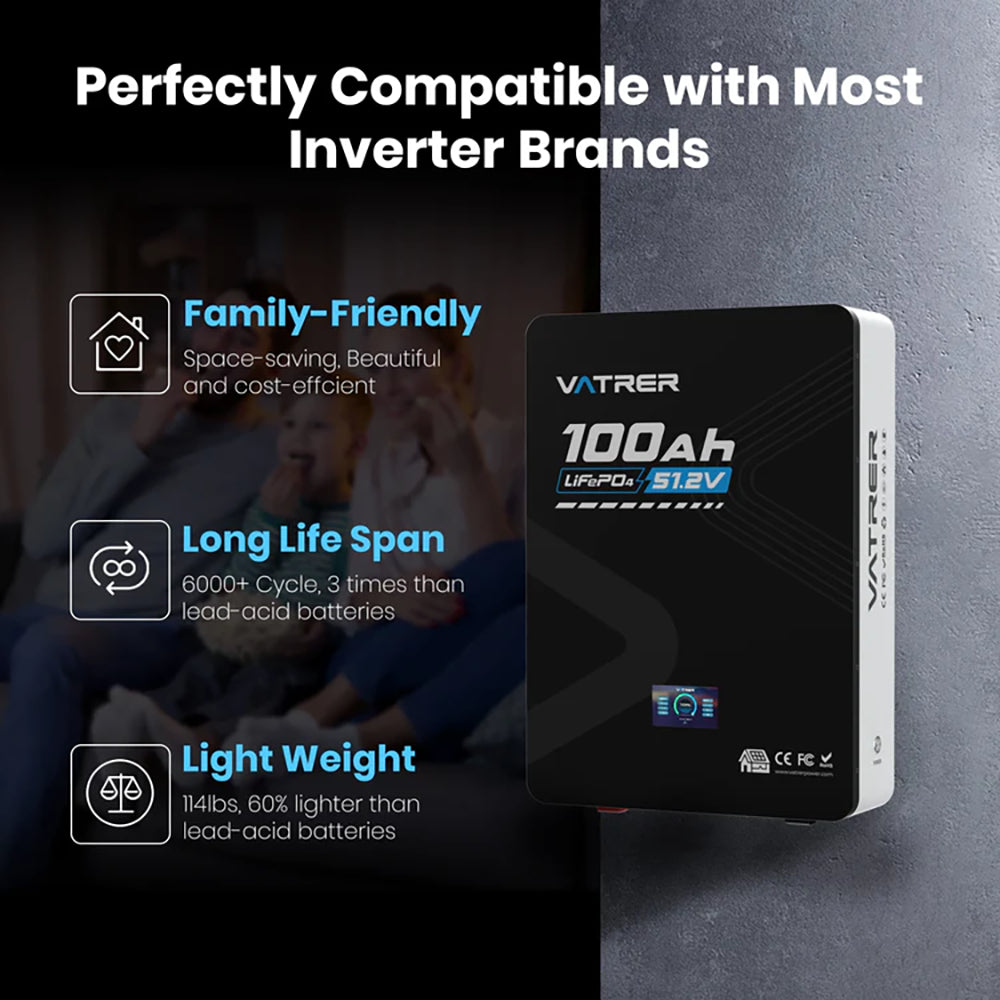

Wide Compatibility with Top Inverter Brands
This wall-mounted battery works seamlessly with popular inverter brands like Pylon, Deye, GoodWe, Growatt, SRNE, SMA, Victron, Megarevo, and Sofar. This compatibility ensures it integrates easily into your existing solar panel system, giving you more options for setup.

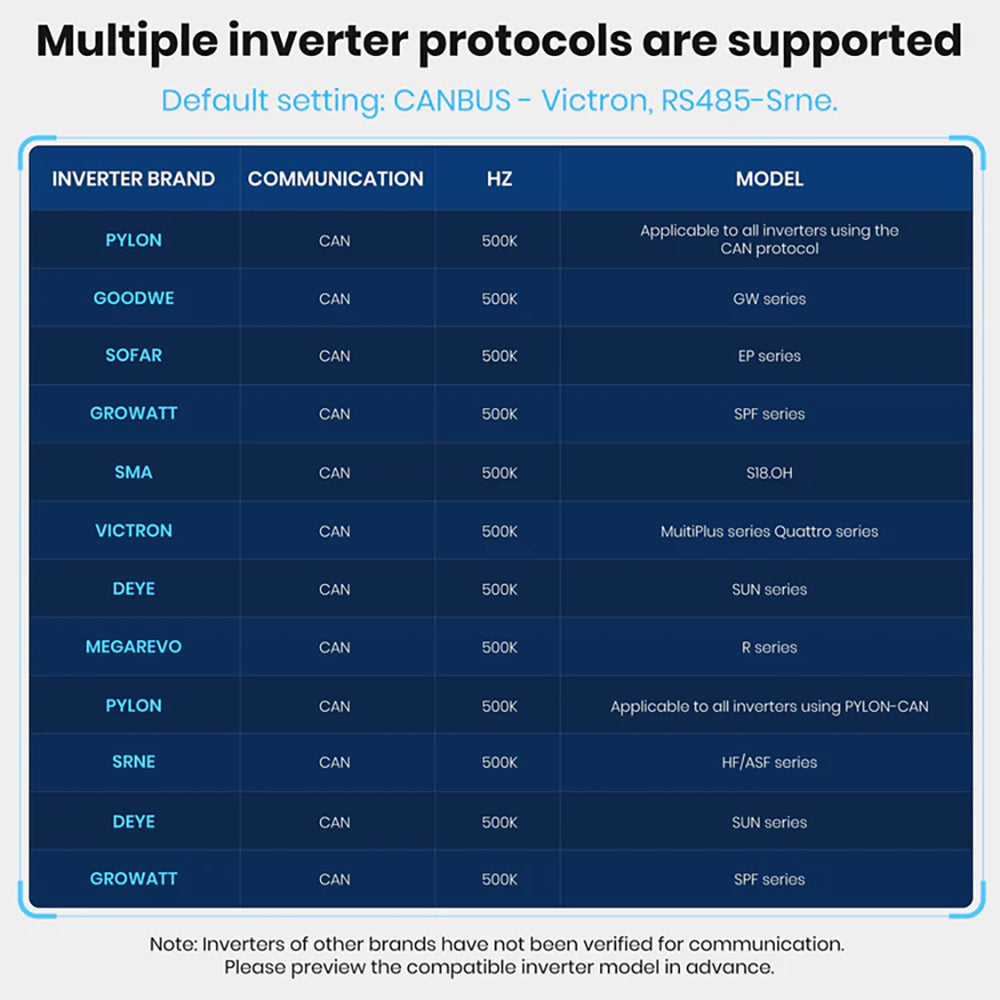

| Inverter Brand | Picture | Protocol | Version | Communication | Hz | Model |
|---|---|---|---|---|---|---|
| PYLON |
 |
CAN-Bus-protocol-PYLON-low-voltage | V1.2 | CAN | 500K | Applicable to all inverters using PYLON CAN protocol |
| GOODWE |  |
GoodWe CAN Inverter LV | V1.7 | CAN | 500K | GW series |
| SUNGROW |  |
CAN-Bus-protocol-PYLON-low-voltage | V1.2 | CAN | 500K | Applicable to all inverters using PYLON CAN protocol |
| SOFAR |  |
1.SofarSolar CAN inverter 2.SofarSolar CAN inverter |
V2.1 V5 |
CAN | 500K | EP series |
| GROWATT |  |
Growatt BMS CAN-Bus-protocol-low-voltage | V1.09 | CAN | 500K | SPF series |
| SMA |  |
FSS-ConnectingBat-TI-en-20W | V2.0 | CAN | 500K | S18.OH |
| Victron |  |
Victron CAN | 2021.01.07 | CAN | 500K | MultiPlus series, Quattro series |
| LuxPowerTek |  |
Luxpowertek Battery CAN Protocol | V1.0 | CAN | 500K | LXP-LB series |
| Studer |  |
Technical specification Studer BMS Protocol | V1.0.3 | CAN | 500K | XTM series |
| TBB Power |  |
CAN BUS Protocol of TBB Lithium Battery BMS Platform | V1.1 | CAN | 500K | Applicable to all inverters using TBB-CAN protocol |
| Deye |  |
Deye LV-CAN communication protocol | V1.0 | CAN | 500K | SUN series |
| Sunsynk |  |
Battery Compatibility | V6 | CAN | 500K | SG series |
| MEGAREVO |  |
1.MEGAREVO CAN Inverter LV 2.REVO series high voltage battery BMS communication protocol |
V1.1 V1.04 |
CAN | 500K | R series |
| Afore |  |
Luxpowertek Battery CAN Protocol | V1.0 | CAN | 500K | / |
| Sacolar |  |
Growatt BMS CAN-Bus-protocol-low-voltage | V1.09 | CAN | 500K | / |
| Schneider |  |
Schneider CAN | V2.0 | CAN | 500K | Applicable to all inverters using Schneider CAN protocol |
| MUST |  |
CAN PV1800F | V.04 | CAN | 500K | Applicable to all inverters using MUST-CAN protocol |
| KSTAR |  |
Kstar CAN_Protocol | V.01 | CAN | 500K | Applicable to all inverters using the KSTAR CAN protocol |
| PYLON |  |
PYLON RS485 LV | V3.5 | 485 | 9600 | Applicable to all inverters using PYLON CAN protocol |
| Srne |  |
WOW RS485 Modbus PACE RS485 MS V1.0 |
V1.3 V.1.0 |
485 | 9600 | HF/ASF series |
| Deye | |
RS485 protocol protocol low voltage - New protocol design - Deye 12 9600 | V1.0 | 485 | 9600 | SUN series |
| GROWATT | |
Growatt_BMS_RS485_protocal_1xSxxP | V.02 | 485 | 9600 | SPF series |
| Voltronic Power |  |
Voltronic Inverter and BMS 485 communication protocol | V.5 | 485 | 9600 | Axpert series |
| SAKO |  |
(LIB) BMS 485 communication protocol | 20201208 | 485 | 9600 | Sunon-IV series |
Interface Description
| Interface Number | Interface Description |
|---|---|
| 1 | Output positive port |
| 2 | RS485 |
| 3 | CAN |
| 4 | GND |
| 5 | RS232 |
| 6 | Parallel operation RS485A |
| 7 | Parallel operation RS485B |
| 8 | Output negative port |
| 9 | Battery switch |
Ready To Upgrade Your Solar Energy Storage System?
Vatrer is renowned in the lithium-ion battery industry for its reliable and innovative solutions. This 48V 100Ah battery can help you reduce your carbon footprint while increasing your energy independence. Equipped with robust BMS safety features, an integrated display, and low-temperature protection, Vatrer batteries ensure uninterrupted power. If you have specific solar cell requirements, Vatrer can customize this battery. Buy now and enjoy free shipping!
TECH SPECS
| Specification | Value |
|---|---|
| Nominal Voltage | 51.2V |
| Rated Capacity | 100Ah |
| Rated Power | 5120Wh |
| Charging Cut-off Voltage | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Recommended Charging Current | 20A~50A |
| Maximum Charging Current | 100A |
| Standard Discharge Current | 100A |
| Service Temperature Range | CHA: 0~55℃, DISCHA: -20~60℃, Store: 0~45℃ |
| Maximum Operating Height | ≤2m |
| Cycle Life | ≥6000 times |
| Self-discharge Rate | 3%/month |
| Communication | CAN/RS485/RS232 |
| Parallel Connection | MAX. 30PCS |
| Color | White |
| Material | Iron |
| Size (L*W*H) | 25.59*18.50*5.43 inch / 650*470*138 mm |
| Weight | 113.63 lbs (51.54 kg) |
| Protection Level | IP65 |
Packaging List
| Name | Quantity | Picture |
|---|---|---|
| Battery | 1pcs |  |
| Power cable: 2m | 1pcs |  |
| Bracket pendant | 1pcs |  |
| Expansion screw M6*60 | 6pcs |  |
| Net cable: 2m | 3pcs |  |
| User Manual | 1pcs |  |
FAQs
Installing the Vatrer 48V 100Ah lithium battery is straightforward, especially with the included power cables and mounting brackets. For DIY users, it can take 1-2 hours depending on your setup, while professional installers might complete it in under an hour. The lightweight design at 113.63 lbs also makes it easier to handle, reducing setup time compared to heavier lead-acid options.
Yes, the Vatrer 100Ah battery can function as a standalone battery backup power source, even without solar panels. You can charge it via a compatible inverter or grid connection and use it during outages. However, pairing it with a solar panel system will maximize its efficiency as a solar energy storage solution.
The built-in 100A BMS is designed to protect the battery from high temperatures by cutting off power if it gets too hot, ensuring safety. If this happens, let it cool down and check your ventilation. For persistent issues, contact Vatrer’s support team for guidance.
Absolutely. The compact 25.60 x 18.5 x 5.43-inch design and wall-mounted feature make it ideal for small spaces like apartments. Its smart BMS also prevents risks like overcharging or short circuits, making it a safe choice for indoor use as part of your solar system.
The Vatrer 48V 100Ah battery is compatible with top inverter brands like Pylon, Deye, and Victron, among others. Check the second screen page or Bluetooth app for a full list. If unsure, consult your inverter manual or reach out to Vatrer’s support for a compatibility check before purchase.
You can expand your setup by connecting up to 30 Vatrer 100Ah lithium batteries in parallel, boosting your capacity to 153.6kWh and load power to 153.6kW. This scalability is user-friendly with clear instructions, ensuring you can grow your solar energy storage system as needed without hassle.
Yes, the Vatrer battery’s durable build is suited for marine use, as confirmed by its versatile applications. The low-temp cut-off and BMS protections also guard against harsh conditions. However, ensure proper sealing and ventilation to protect the connections from moisture.
The Vatrer 48V 100Ah battery requires minimal maintenance thanks to its LiFePO4 cells and BMS, which manage charge cycles and prevent degradation. Check the display for any alerts every few months and keep it in a clean, dry area to ensure its 6,000+ cycle lifespan.
This Vatrer 48V (51.2V) battery is an excellent battery backup option, providing power for essentials like a fridge or TV during outages. Its 5.12kWh capacity and ability to support multiple appliances ensure you stay comfortable, while the expandable design lets you prepare for longer disruptions.
Vatrer offers free technical support and consultation to help with installation or customization for your solar panel system. If you require a custom solar energy storage battery solution, the Vatrer team can tailor the battery setup to your needs and provide advice. As the batteries are custom designed, additional costs will apply.
