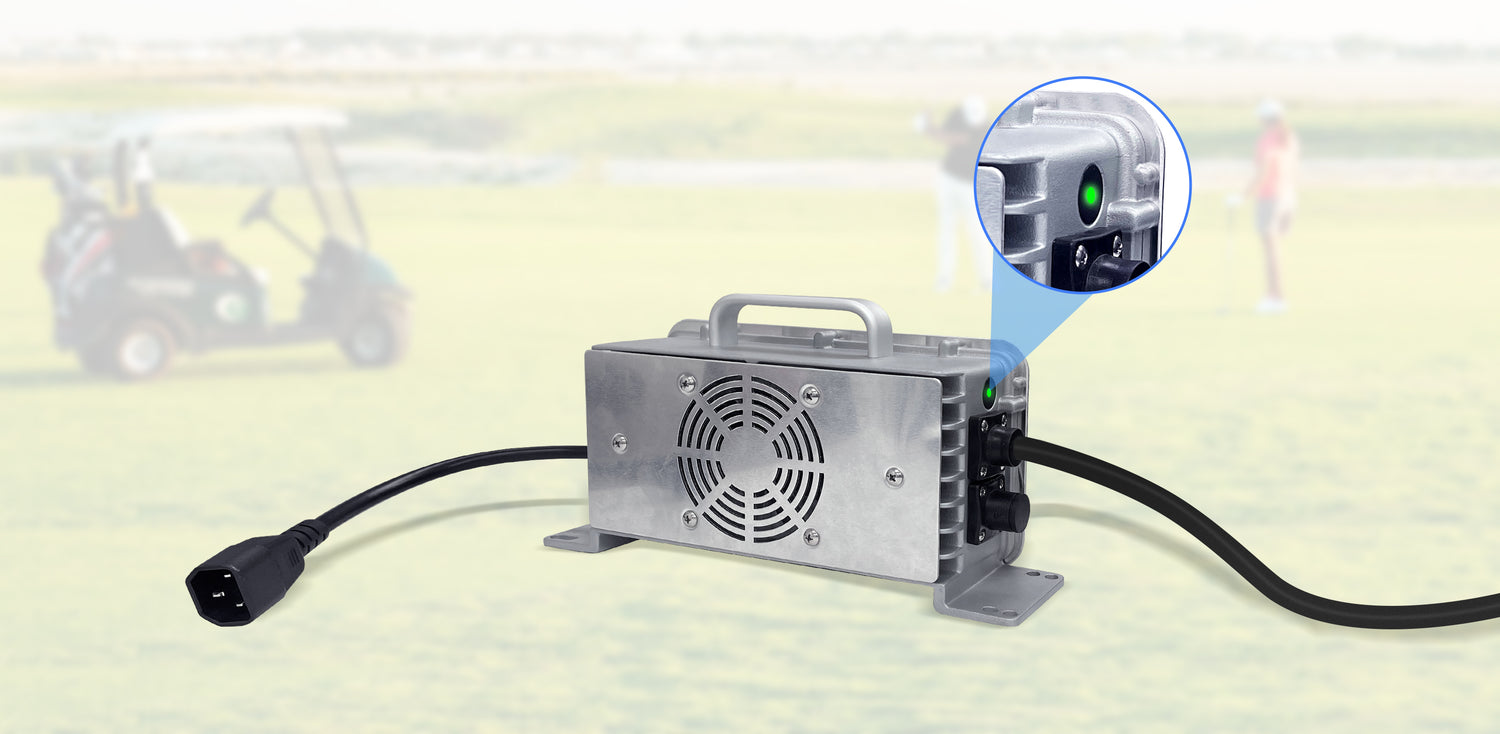

Vatrer 36V/48V Golf Cart Battery Explanation of LED Status
| Common Indicator Light Status | ||||
| Function Item | Indicator Light Status | |||
| 1 | Fully Charged/Completed/Standby | (Green light always on) | ||
| 2 | Charging | (Green light continuously slow flashing). | ||
| 3 | Input Voltage Abnormal | (Red light continuously flashing). | ||
| 4 | Output Short Circuit/Undervoltage | (Red-Green Red-Green continuously flashing). | ||
| 5 | Output Reverse Connection | (Red-Red-Green, 2 red 1 green continuously flashing). | ||
| 6 | Charger Body Overheating | (Red-Red, 2 red continuously flashing). | ||
| 7 | Output Overcurrent | (Red-Red-Red, 3 red continuously flashing). | ||
| 8 | Output Overvoltage | (Red-Red-Red-Red, 4 red continuously flashing). | ||
If there is a problem with the charger, the fan will stop rotating and the LED indicator will blink red light to give an error warning, Please disconnect the charger from the wall socket.
Warning and safety notes.
1. Never leave the charger unattended when it is connected to its power supply.
2. The allowable AC input voltage is 100-240V AC, Never connect it to any other voltage.
3. Never place the charger and batteries connected to it on any form of flammable surface, Never operate the charger in the vicinity of inflammable material or gas.
4. Ensure that there is an unrestricted airflow to and from the charger's cooling slots, Never place the charger on a carpet or similar surface.
5. Take great care to maintain correct battery polarity, and avoid shot-circuit.
